Ships within 25 days
View
View
View
View
| Type of Product | Conductive Level Adjuster |
| Material | Shaft / Stainless Steel Rod (SUS304), Cover / Stainless Steel Plate (SUS304), Bottom / Ethylene Propylene Rubber (EPDM) |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | TAKIGEN MFG CO., LTD |
Type of Product |
Conductive Level Adjuster |
Material |
Shaft / Stainless Steel Rod (SUS304), Cover / Stainless Steel Plate (SUS304), Bottom / Ethylene Propylene Rubber (EPDM) |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Model No |
KC-1280-E-2 |
Hardness |
80±5 |
Weight |
240 g |
Monotaro ID |
62816723 |
Surface Finish Type |
Electrolytic Polishing |
TAKIGEN Code |
31813 |

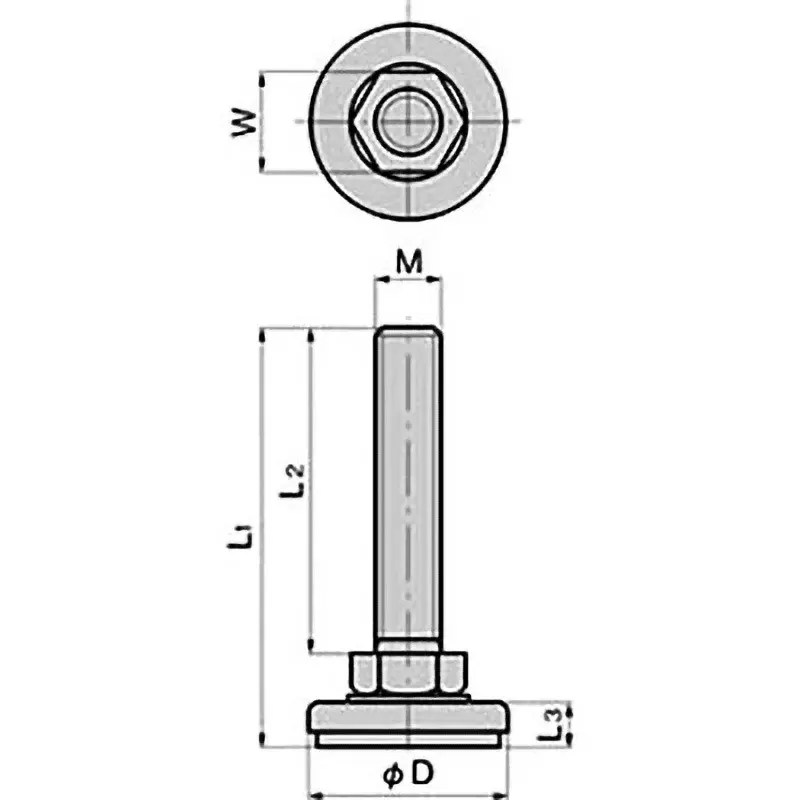

Dimensions w (mm) |
24 |
Working Load |
Vertical: 8.82N |
Dimension M |
M16 |
Dimensions l2 (mm) |
70 |
Dimensions L1 (mm) |
97 |
Dimension L3 (mm) |
16 |
Dimension D (Φmm) |
60 |
Cell Spacing (mm) |
2 |
Volume Resistivity |
8.4x103 Ωcm |
Surface Resistivity |
2.6x104 Ω/Sq |
Import Country |
Direct Import from Japan |
