| Type of Product | Level Adjuster |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | TAKIGEN MFG CO., LTD |
| Model No | KC-1275-B-4 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Level Adjuster |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Model No |
KC-1275-B-4 |
Included Components |
Hex Nut (One Type) |
Weight |
540 g |
Monotaro ID |
61129732 |
Surface Finish Type |
Barrel Polishing |
TAKIGEN Code |
31499 |

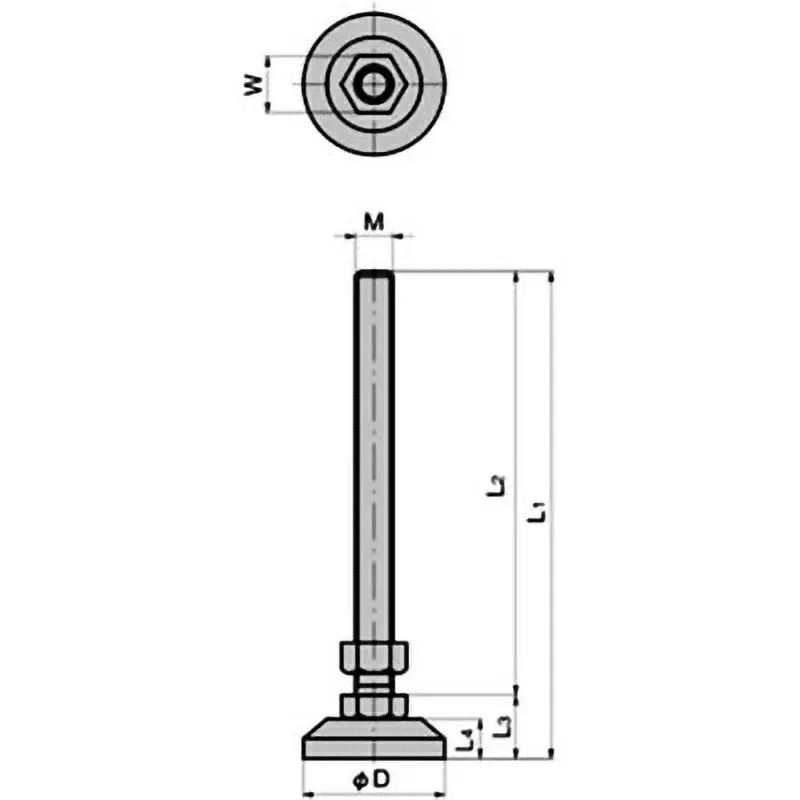

Dimensions w (mm) |
24 |
Working Load |
19.6 kN (Vertical) |
Dimension M |
M16x2 |
Dimensions l2 (mm) |
180 |
Dimensions L1 (mm) |
207 |
Bottom Material |
Stainless Steel (SUS304) |
Shaft Material |
Stainless Steel Bar (SUS304) |
Dimensions l4 (mm) |
17 |
Dimension L3 (mm) |
27 |
Applicable Bracket |
KC-1275-C-2 |
Dimension D (Φmm) |
60 |
