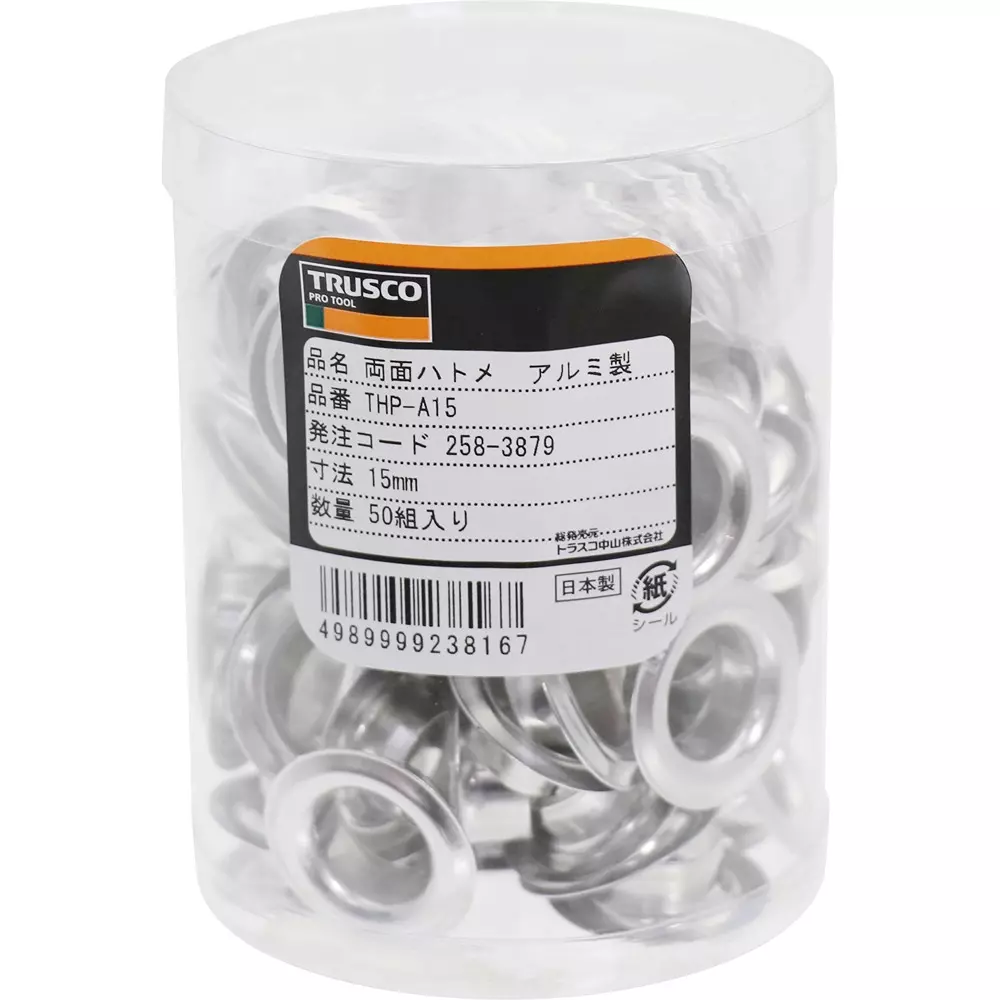

| Type of Product | Double-Sided Grommet |
| Pack of | 50 Pcs |
| Material | Aluminum (A1100P) |
| Country of Origin | Japan |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Double-Sided Grommet |
Pack of |
50 Pcs |
Material |
Aluminum (A1100P) |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
TRUSCO NAKAYAMA CORPORATION |
Model No |
THP-A15 |
Monotaro ID |
8339667 |
Inner Diameter |
15 mm |
Mass (g) |
60 |
Trusco Part No. |
258-3879 |
Inner Diameter (mm) |
14.8 |

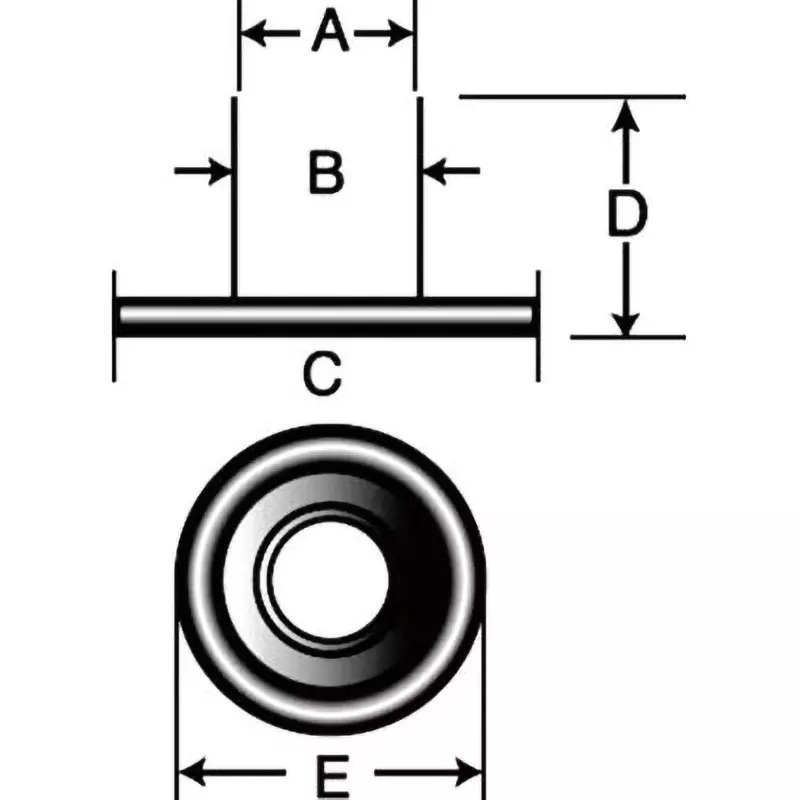

Dimension D (Φmm) |
9 |
Outer Diameter (Φmm) |
15.8 |
Contents |
Cylindrical case |
Thread Gauge |
#30 |
Import Country |
Direct Import from Japan |
Dimension E (Φmm) |
28 |
Outer Diameter C (Φmm) |
28 |
Applicable Thickness (mm) |
4 |
Suitable Tools |
THP-SP (inner diameter 10 to 15 mm), THP-P (inner diameter 4 to 15 mm), THP-PH (inner diameter 4 to 15 mm), THP-HP (inner diameter 8 to 15 mm) |
Nominal Diameter (mm) |
15 |
