Ships within 25 days
View
View
View
View

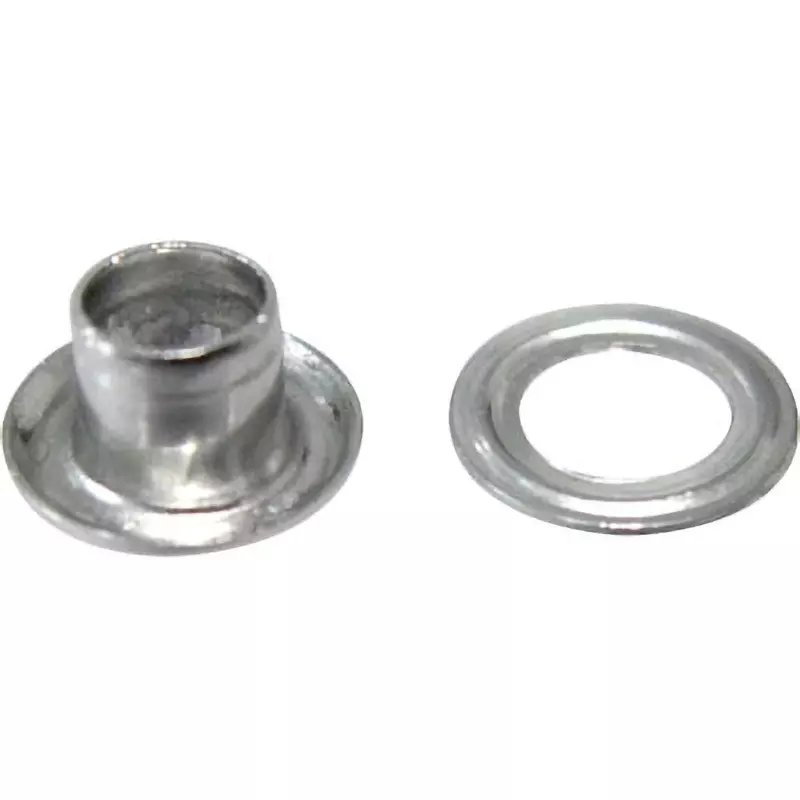

| Type of Product | Double-Sided Grommet |
| Pack of | 100 Pcs |
| Material | Aluminum (A1100P) |
| Country of Origin | Japan |
Type of Product |
Double-Sided Grommet |
Pack of |
100 Pcs |
Material |
Aluminum (A1100P) |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
TRUSCO NAKAYAMA CORPORATION |
Model No |
P-THP-A4 |
Monotaro ID |
39449733 |
Inner Diameter |
4 mm |
Mass (g) |
13 |
Trusco Part No. |
380-4216 |
Inner Diameter (mm) |
3.7 |

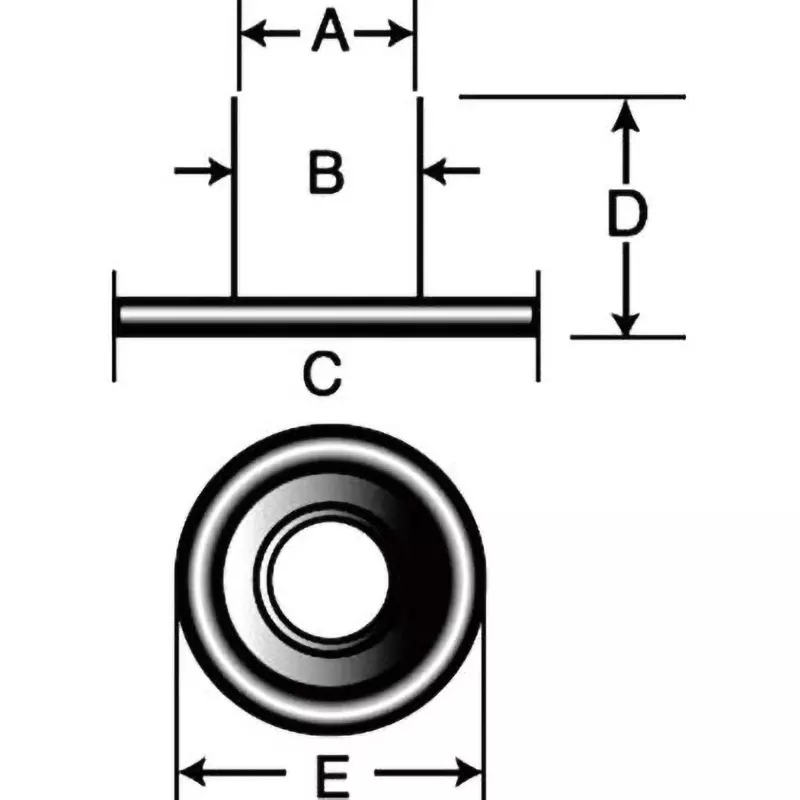

Dimension D (Φmm) |
4.4 |
Outer Diameter (Φmm) |
4.5 |
Contents |
Blister pack |
Thread Gauge |
#200 |
Import Country |
Direct Import from Japan |
Dimension E (Φmm) |
7.4 |
Outer Diameter C (Φmm) |
7.6 |
Applicable Thickness (mm) |
1.5 |
Suitable Tools |
THP-SP (inner diameter 10 to 15 mm), THP-P (inner diameter 4 to 15 mm), THP-PH (inner diameter 4 to 15 mm), THP-HP (inner diameter 8 to 15 mm) |
Clamping Thickness (mm) |
1.5 |
Nominal Diameter (mm) |
4 |
