| Type of Product | Pillow Ball POS (With External Thread, Lubricated, Right-Hand Thread) |
| Model No | POS3 |
| Material | Zinc Chromate |
| Monotaro ID | 10303282 |
Type of Product |
Pillow Ball POS (With External Thread, Lubricated, Right-Hand Thread) |
Model No |
POS3 |
Material |
Zinc Chromate |
Monotaro ID |
10303282 |
Specifications |
1N≒0.102kgf |
Mass (g) |
5 g |
Type |
With male thread |

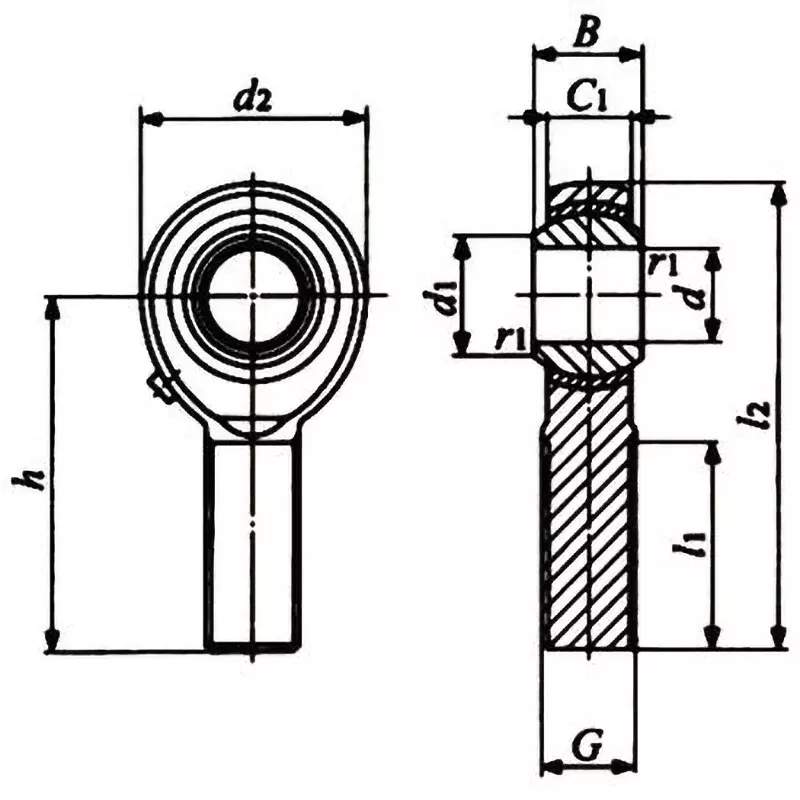

Chamfer Dimension r1 (mm) |
0.2 |
Dimensions D (mm) |
3 |
Dynamic load capacity (N) |
1750 |
Static load capacity (N) |
1220 |
Dimension C1 (mm) |
4.5 |
Dimensions g (mm) |
M3×0.5 |
Material (Bushing) |
Special copper alloy |
Screw Direction |
Right-handed screw |
Lubrication Type |
Refueling type |
Dimensions B (mm) |
6 |
Dimension D1 (mm) |
5.2 |
Dimensions H (mm) |
27 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Dimension L1 |
15 mm |
Dimension L2 |
33 mm |
Dimension D2 (mm) |
12 |
