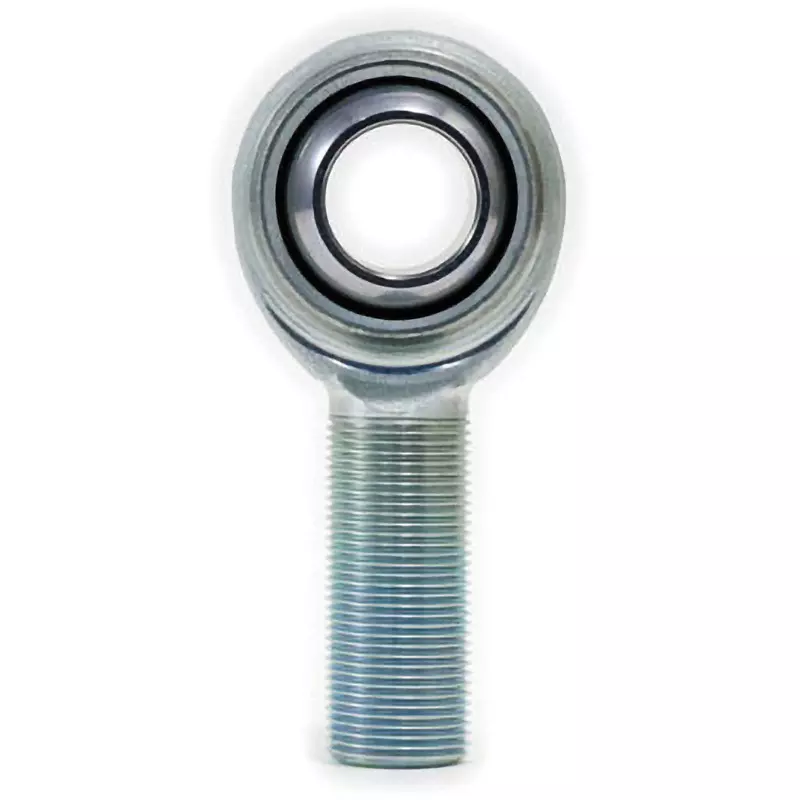

| Type of Product | Pillow Ball POSEC (With External Thread, Oil-Free, Left-Hand Thread) |
| Model No | POS22ECL |
| Material | Zinc Chromate |
| Monotaro ID | 10303544 |
Type of Product |
Pillow Ball POSEC (With External Thread, Oil-Free, Left-Hand Thread) |
Model No |
POS22ECL |
Material |
Zinc Chromate |
Monotaro ID |
10303544 |
Specifications |
1N≒0.102kgf |
Mass (g) |
435 g |
Type |
With male thread |

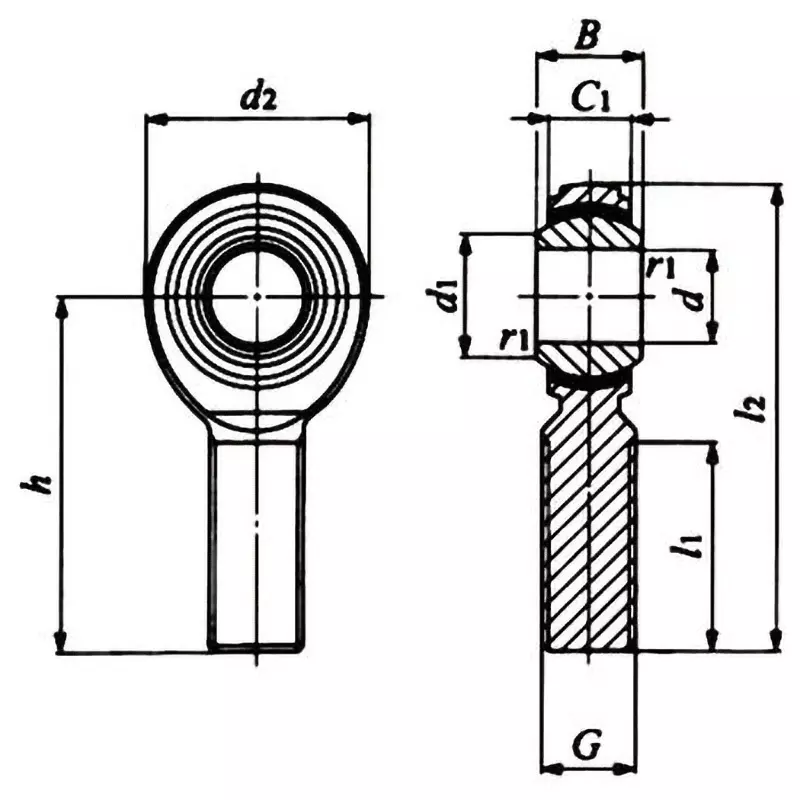

Chamfer Dimension r1 (mm) |
0.2 |
Dimensions D (mm) |
22 |
Dynamic load capacity (N) |
74700 |
Static load capacity (N) |
36400 |
Dimension C1 (mm) |
20 |
Dimensions g (mm) |
M22×1.5 |
Material (Bushing) |
Special copper alloy |
Screw Direction |
Left-hand thread |
Lubrication Type |
Oil-free type |
Dimensions B (mm) |
28 |
Dimension D1 (mm) |
25.8 |
Dimensions H (mm) |
84 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Dimension L1 |
51 mm |
Dimension L2 |
109 mm |
Dimension D2 (mm) |
50 |
