Ships within 25 days
View
View
View
View

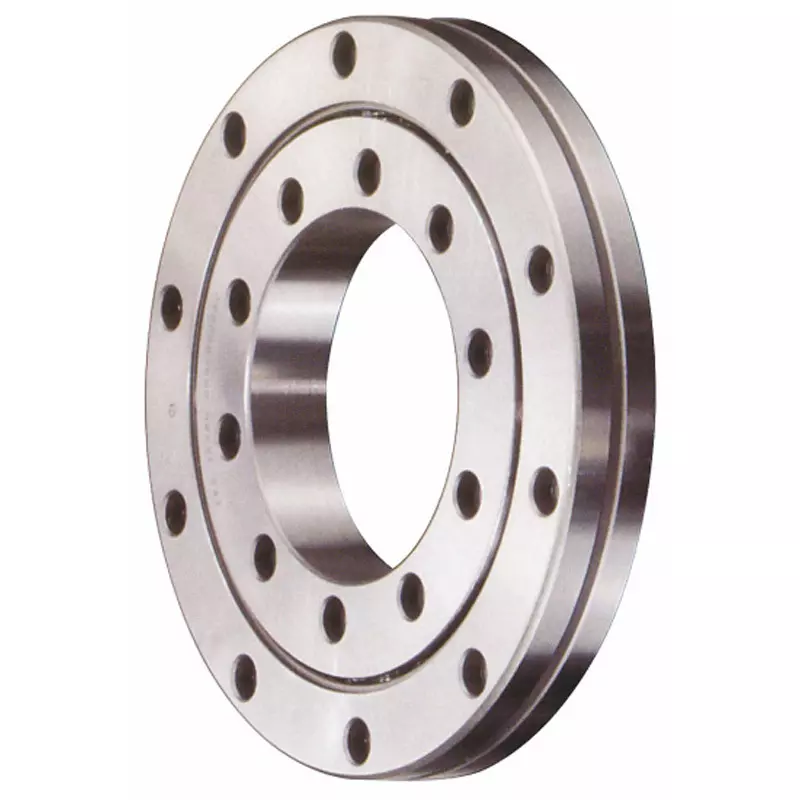

| Type of Product | High Rigidity Cross Roller Bearing With Mounting Holes V CRBFV |
| Model No | CRBFV9025AUUC1 |
| Monotaro ID | 84815616 |
| Specifications | ●Main dimensions (mm) PCD2: 187●Inner ring mounting hole: 12-Φ9 equal through-hole, Φ14 deep counterbore, depth 12●Outer ring mounting hole: 12-Φ9 equal through-hole, Φ14 deep counterbore, depth 12 |
Type of Product |
High Rigidity Cross Roller Bearing With Mounting Holes V CRBFV |
Model No |
CRBFV9025AUUC1 |
Monotaro ID |
84815616 |
Specifications |
●Main dimensions (mm) PCD2: 187●Inner ring mounting hole: 12-Φ9 equal through-hole, Φ14 deep counterbore, depth 12●Outer ring mounting hole: 12-Φ9 equal through-hole, Φ14 deep counterbore, depth 12 |
Type |
With separator |
Dimensions D (mm) |
90 |
Dimensions B (mm) |
25 |
Seal |
Sealed type |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Dimensions PCD1 (mm) |
112 |
Dimension r1 (min) (mm) |
1.5 |
Type of Sign |
Counterbore holes in the same direction |
Dimension r2 (min) (mm) |
1.5 |
