| Type of Product | Pillow Ball Rod End PHSA (Die-Cast, With Female Thread) |
| Model No | PHSA5 |
| Monotaro ID | 38328525 |
| Static load capacity (N) | 5470 |
Type of Product |
Pillow Ball Rod End PHSA (Die-Cast, With Female Thread) |
Model No |
PHSA5 |
Monotaro ID |
38328525 |
Static load capacity (N) |
5470 |

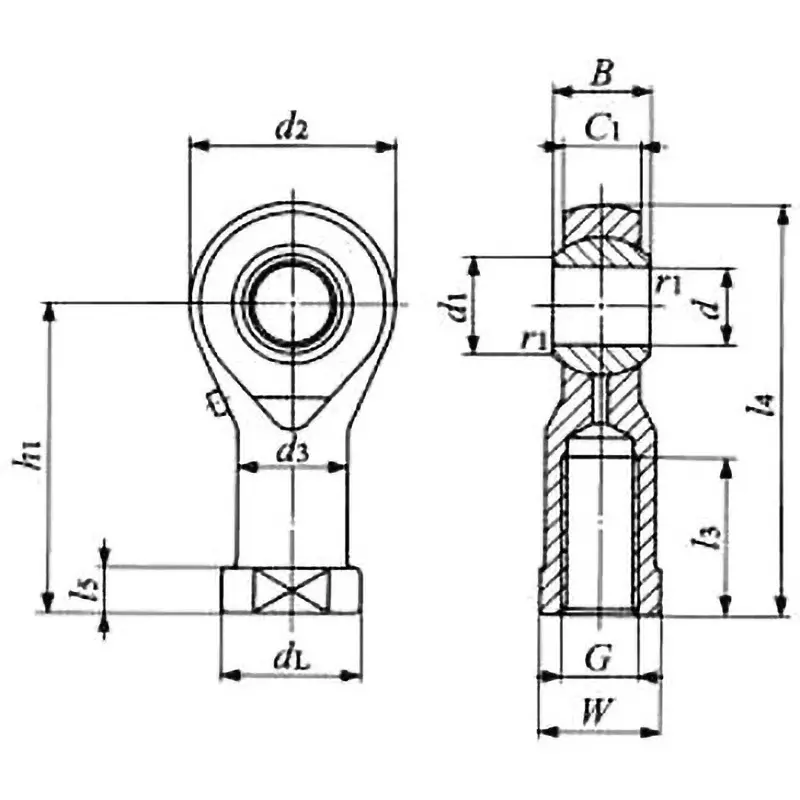

Dimension dL (mm) |
11 |
Dimensions l4 (mm) |
35.5 |
Dimensions l5 (mm) |
4 |
Dimension C1 (mm) |
6 |
Dimension L3 (mm) |
16 |
Screw Direction |
Right-handed screw |
Lubrication Type |
Refueling type |
Dimensions B (mm) |
8 |
Dimension d1 (Φmm) |
7.7 |
Dimension D (Φmm) |
5 |
Dimension d3 (Φmm) |
9 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Dimension H1 |
27 mm |
Dimension W |
9 mm |
Dimension D2 (mm) |
17 |
G Thread |
M5×0.8 |
