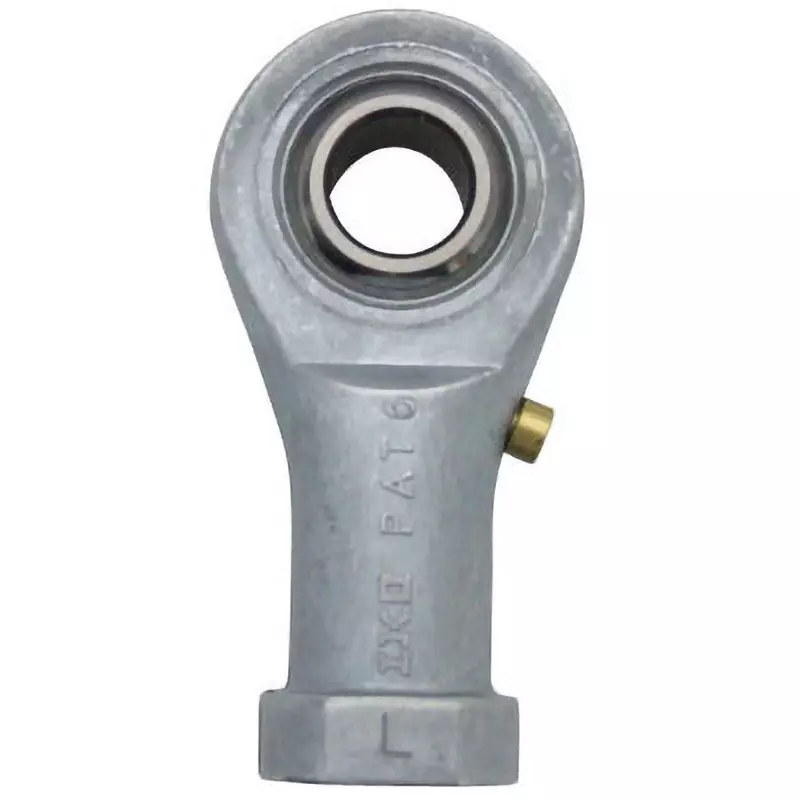

| Type of Product | Pillow Ball PHSA (With Female Thread, Lubricated, Left-Hand Thread) |
| Model No | PHSA20L |
| Material | Special Zinc Die Casting Alloy |
| Monotaro ID | 10303754 |
Type of Product |
Pillow Ball PHSA (With Female Thread, Lubricated, Left-Hand Thread) |
Model No |
PHSA20L |
Material |
Special Zinc Die Casting Alloy |
Monotaro ID |
10303754 |
Mass (g) |
400 g |
Type |
With female thread (Die-casting) |

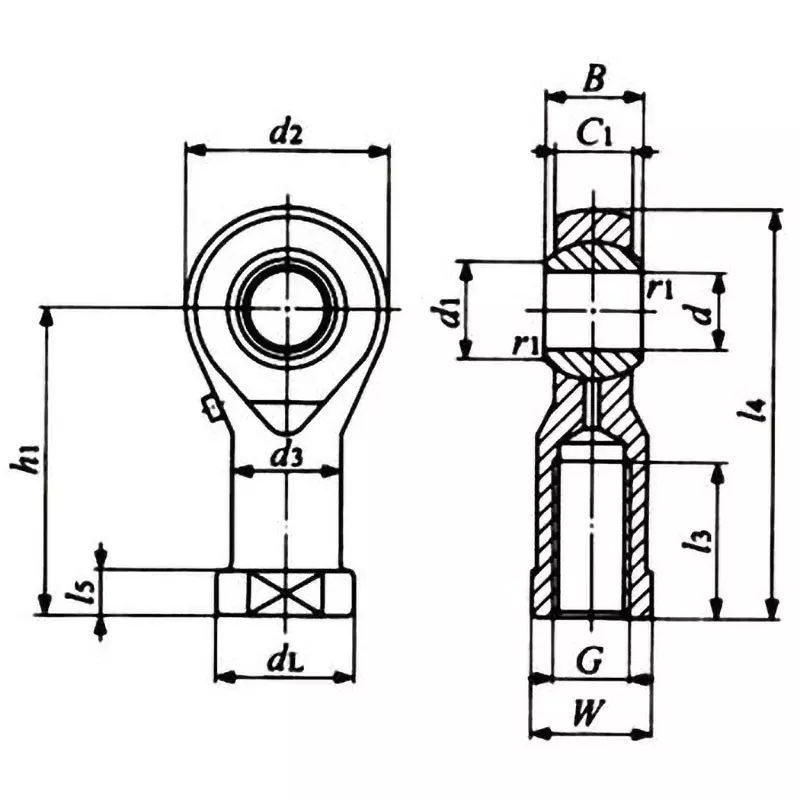

Chamfer Dimension r1 (mm) |
0.3 |
Dimensions D (mm) |
20 |
Static load capacity (N) |
33400 |
Dimensions l4 (mm) |
101.5 |
Dimensions l5 (mm) |
20 |
Dimension C1 (mm) |
18 |
Dimension d3 (mm) |
27.5 |
Dimension L3 (mm) |
43 |
Dimensions g (mm) |
M20×1.5 |
Screw Direction |
Left-hand thread |
Lubrication Type |
Refueling type |
Dimensions B (mm) |
25 |
Dimension D1 (mm) |
24.4 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Dimension H1 |
77 mm |
Dimension W |
30 mm |
Dimension D2 (mm) |
49 |
