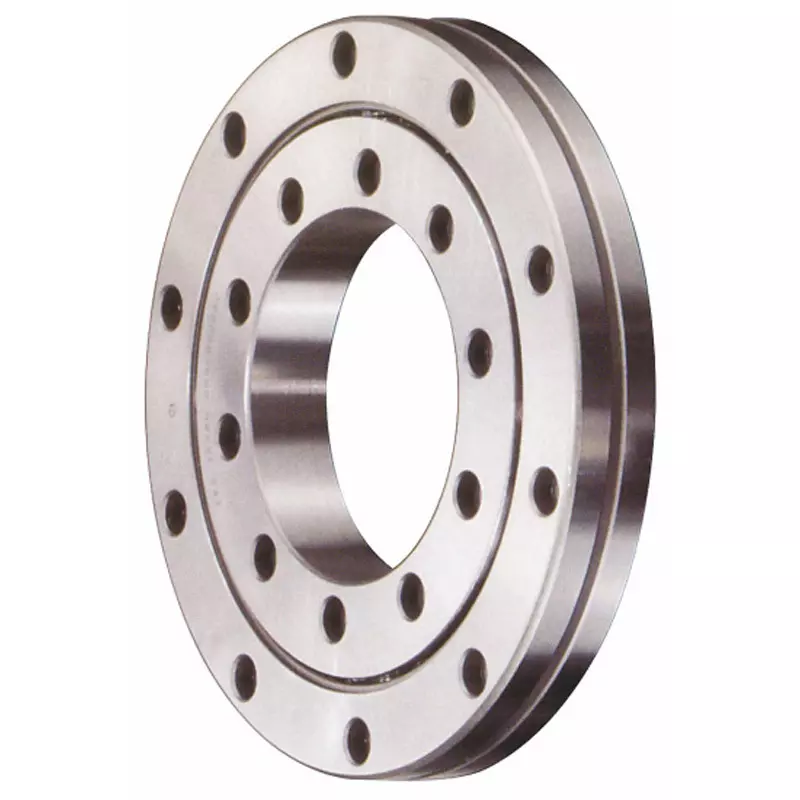

| Type of Product | High Rigidity Cross Roller Bearing With Mounting Holes V CRBFV |
| Model No | CRBFV11528ATC1 |
| Monotaro ID | 84815440 |
| Specifications | ●Main dimensions (mm) PCD2: 217 ●Inner ring mounting hole: 12-M8 through hole, equally divided ●Outer ring mounting hole: 12-Φ9 through hole, equally divided, Φ14 deep counterbore, depth 13.5 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
High Rigidity Cross Roller Bearing With Mounting Holes V CRBFV |
Model No |
CRBFV11528ATC1 |
Monotaro ID |
84815440 |
Specifications |
●Main dimensions (mm) PCD2: 217 ●Inner ring mounting hole: 12-M8 through hole, equally divided ●Outer ring mounting hole: 12-Φ9 through hole, equally divided, Φ14 deep counterbore, depth 13.5 |
Type |
With separator |
Dimensions D (mm) |
115 |
Dimensions B (mm) |
28 |
Seal |
Open type |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Dimensions PCD1 (mm) |
139 |
Dimension r1 (min) (mm) |
1.5 |
Type of Sign |
screw holes |
Dimension r2 (min) (mm) |
1.5 |
