| Type of Product | Pillow Ball PHS (With Female Thread, Lubricated, Left-Hand Thread) |
| Model No | PHS25L |
| Material | Zinc Chromate |
| Monotaro ID | 10302713 |
Type of Product |
Pillow Ball PHS (With Female Thread, Lubricated, Left-Hand Thread) |
Model No |
PHS25L |
Material |
Zinc Chromate |
Monotaro ID |
10302713 |
Mass (g) |
750 g |
Type |
With female thread |

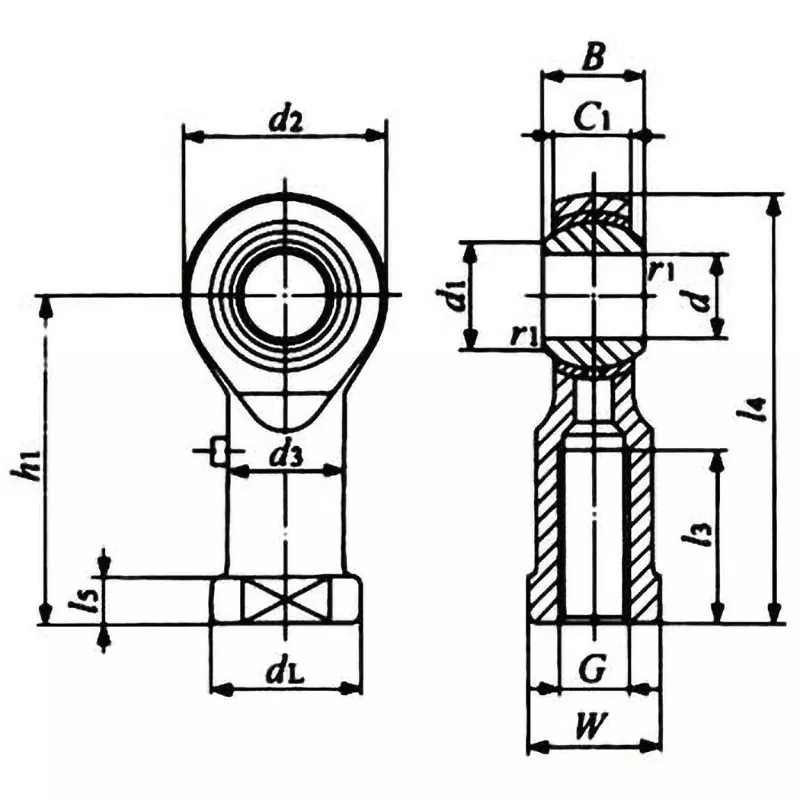

Chamfer Dimension r1 (mm) |
0.6 |
Dimensions D (mm) |
25 |
Dimensions l4 (mm) |
124 |
Dimensions l5 (mm) |
25 |
Dimension C1 (mm) |
22 |
Dimension d3 (mm) |
33.5 |
Dimension L3 (mm) |
48 |
Dimensions g (mm) |
M24×2 |
Material (Bushing) |
Special copper alloy |
Screw Direction |
Left-hand thread |
Lubrication Type |
Refueling type |
Dimensions B (mm) |
31 |
Dimension D1 (mm) |
29.6 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Dimension H1 |
94 mm |
Dimension W |
36 mm |
Dimension D2 (mm) |
60 |
