| Type of Product | Pillow Ball POS (With External Thread, Lubricated, Right-Hand Thread) |
| Model No | POS28 |
| Material | Zinc Chromate |
| Monotaro ID | 10303413 |
Type of Product |
Pillow Ball POS (With External Thread, Lubricated, Right-Hand Thread) |
Model No |
POS28 |
Material |
Zinc Chromate |
Monotaro ID |
10303413 |

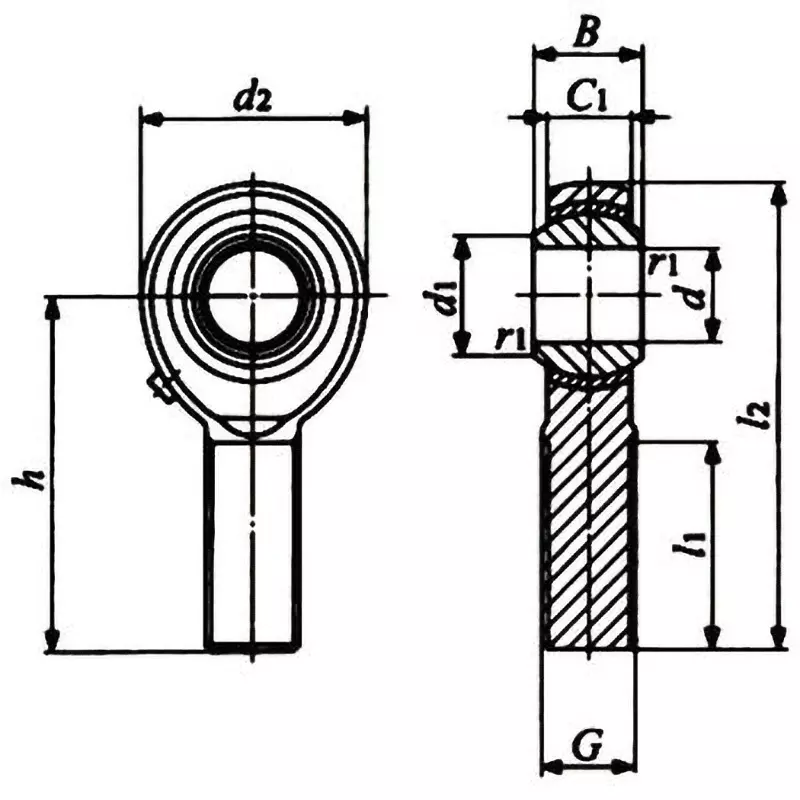

Specifications |
1N≒0.102kgf |
Mass (g) |
875 g |
Type |
With male thread |
Chamfer Dimension r1 (mm) |
0.6 |
Dimensions D (mm) |
28 |
Dynamic load capacity (N) |
58400 |
Static load capacity (N) |
87000 |
Dimension C1 (mm) |
25 |
Dimensions g (mm) |
M27×2 |
Material (Bushing) |
Special copper alloy |
Screw Direction |
Right-handed screw |
Lubrication Type |
Refueling type |
Dimensions B (mm) |
35 |
Dimension D1 (mm) |
32.299999999999997 |
Dimensions H (mm) |
103 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Dimension L1 |
62 mm |
Dimension L2 |
136 mm |
Dimension D2 (mm) |
66 |
