| Type of Product | Pillow Ball Rod End PHSA (Die-Cast, With Female Thread) |
| Model No | PHSA18 |
| Monotaro ID | 38328595 |
| Static load capacity (N) | 28800 |
Type of Product |
Pillow Ball Rod End PHSA (Die-Cast, With Female Thread) |
Model No |
PHSA18 |
Monotaro ID |
38328595 |
Static load capacity (N) |
28800 |

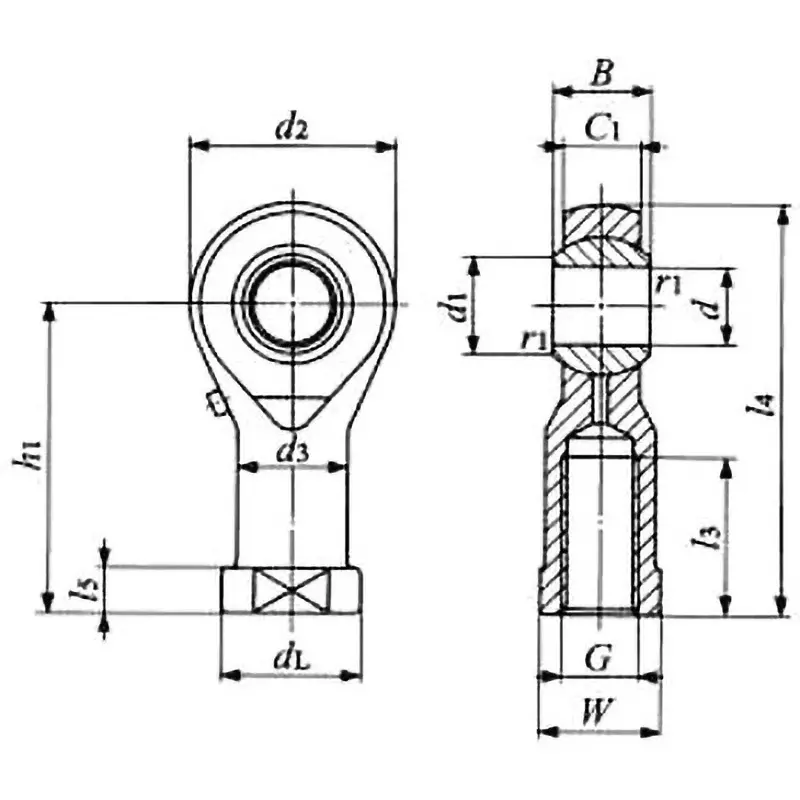

Dimension dL (mm) |
31 |
Dimensions l4 (mm) |
93.5 |
Dimensions l5 (mm) |
10 |
Dimension C1 (mm) |
16.5 |
Dimension L3 (mm) |
40 |
Screw Direction |
Right-handed screw |
Lubrication Type |
Refueling type |
Dimensions B (mm) |
23 |
Dimension d1 (Φmm) |
21.9 |
Dimension D (Φmm) |
18 |
Dimension d3 (Φmm) |
25 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Dimension H1 |
71 mm |
Dimension W |
27 mm |
Dimension D2 (mm) |
45 |
G Thread |
M18×1.5 |
