Ships within 25 days
View
View
View
View

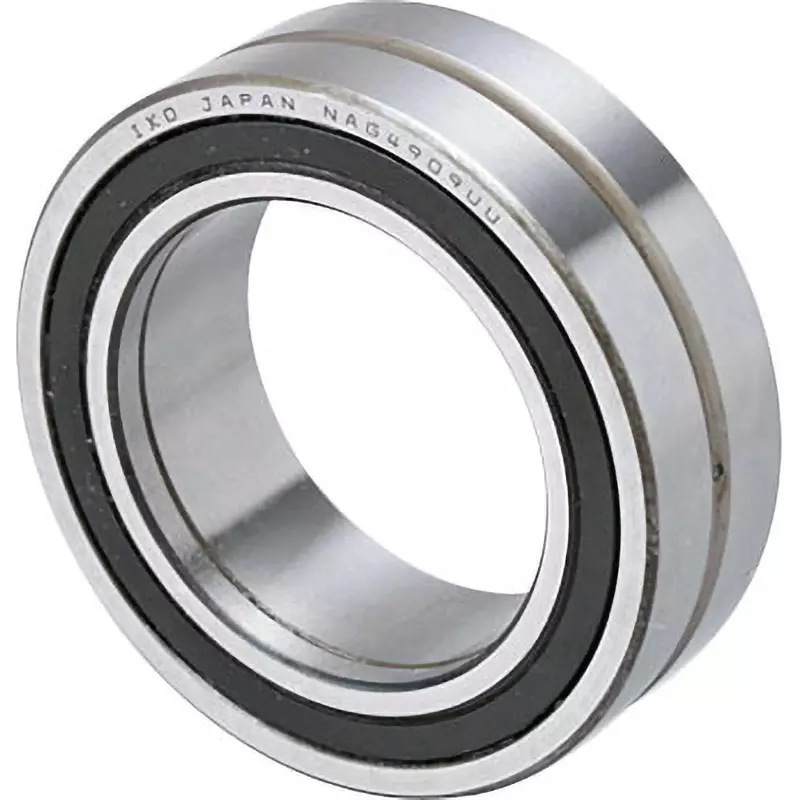

| Type of Product | Full Complement Roller Bearings NAG |
| Model No | NAG4915UU |
| Material | High Carbon Chromium Steel |
| Monotaro ID | 38303833 |
Type of Product |
Full Complement Roller Bearings NAG |
Model No |
NAG4915UU |
Material |
High Carbon Chromium Steel |
Monotaro ID |
38303833 |
Rolling element material |
High carbon chromium bearing steel |
Outer Diameter |
105 mm |
Inner Diameter |
75 mm |
Mass (g) |
775 |
Load direction |
Radial |
JIS grade |
0 |
No. of Track Trains |
Double row |
Race ring shape |
Needle roller bearing |
Basic static load rating Co (N) |
146000 |
Basic dynamic load rating C (N) |
80000 |
Outer ring type |
Flat |
Shield Shape |
With both seals |
Width C (mm) |
30 |

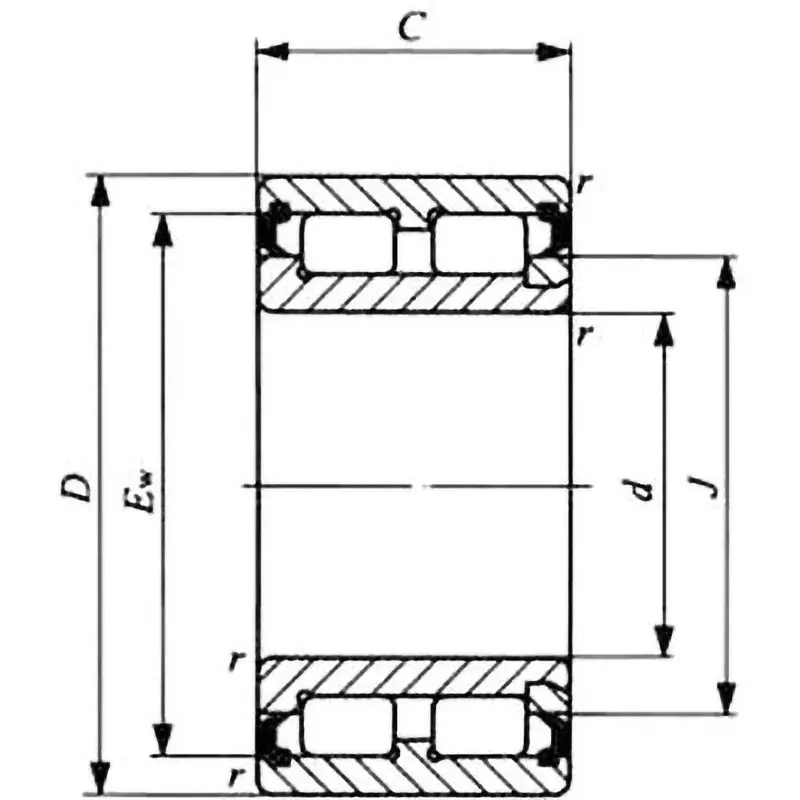

Dimension Ew (mm) |
95.5 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Dimension J (mm) |
83.5 |
Allowable Rotation Speed (min-1 [rpm]) |
1700 |
