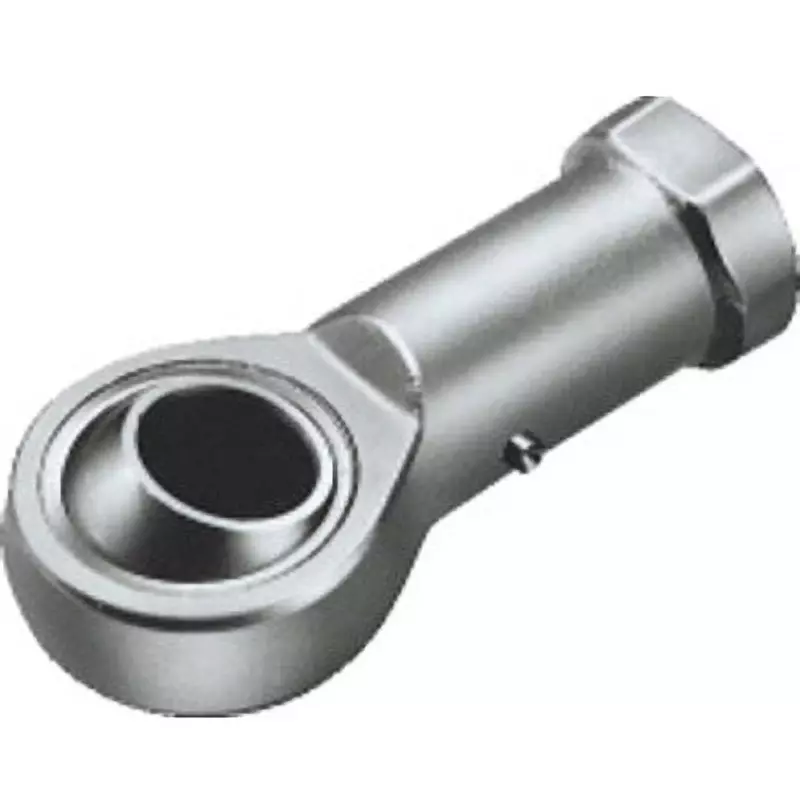

| Type of Product | Refueling Type Pillow Ball Rod End PHS (Insert Type, With Female Thread, Left-Hand Thread) |
| Model No | PHS16LA |
| Monotaro ID | 65998906 |
| Dimensions D (mm) | 16 |
Type of Product |
Refueling Type Pillow Ball Rod End PHS (Insert Type, With Female Thread, Left-Hand Thread) |
Model No |
PHS16LA |
Monotaro ID |
65998906 |
Dimensions D (mm) |
16 |
Dynamic load capacity (N) |
21000 |
Static load capacity (N) |
25400 |
Dimensions l4 (mm) |
83 |
Dimensions l5 (mm) |
8 |
Dimension C1 (mm) |
15 |
Dimension d3 (mm) |
22 |
Dimension L3 (mm) |
33 |
Screw Direction |
Left-hand thread |
Dimensions B (mm) |
21 |
Dimension D1 (mm) |
19.399999999999999 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Thread Size M |
M16 |
Dimension H1 |
64 mm |
Dimension W |
22 mm |
Dimension D2 (mm) |
38 |
G Thread |
M16×2 |
