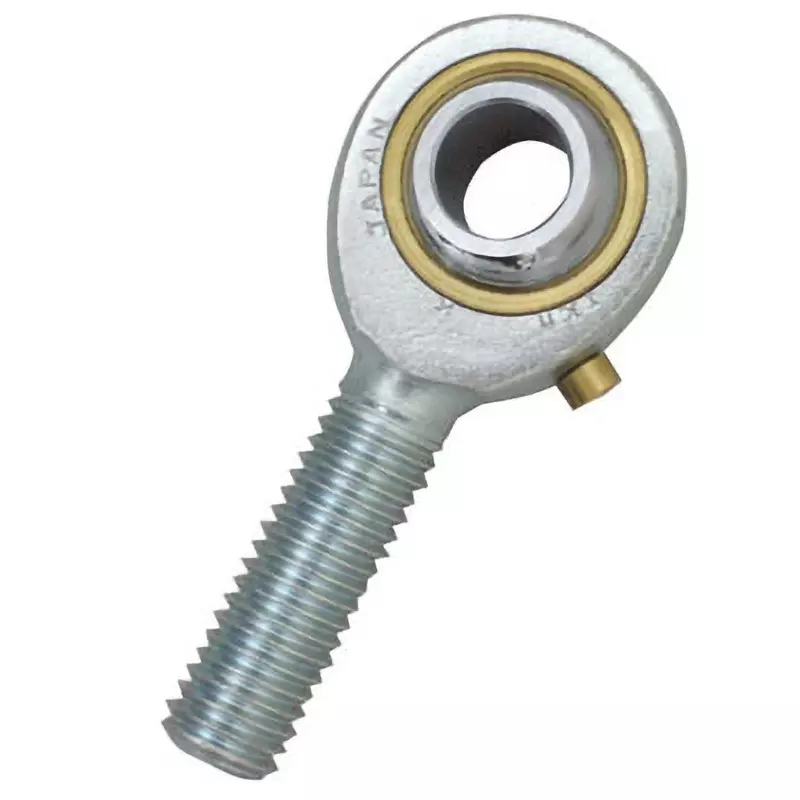

| Type of Product | Pillow Ball POS (With External Thread, Oil Supply Type, Left-Hand Thread) |
| Model No | POS30L |
| Material | Zinc Chromate |
| Monotaro ID | 10303273 |
Type of Product |
Pillow Ball POS (With External Thread, Oil Supply Type, Left-Hand Thread) |
Model No |
POS30L |
Material |
Zinc Chromate |
Monotaro ID |
10303273 |
Specifications |
1N≒0.102kgf |
Mass (g) |
1070 |
Type |
With male thread |

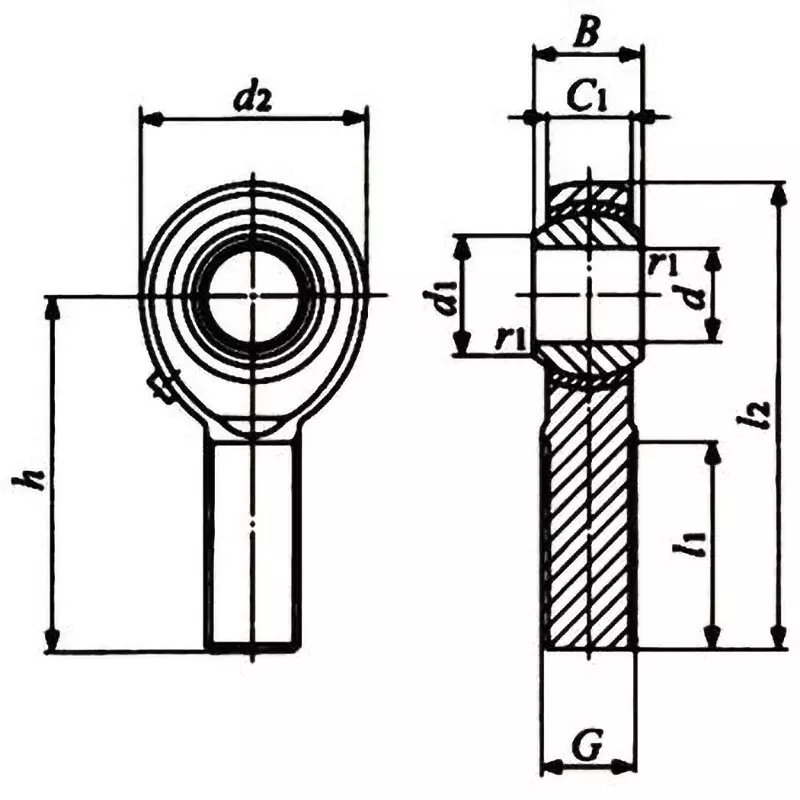

Chamfer Dimension r1 (mm) |
0.6 |
Dimensions D (mm) |
30 |
Mass (Kg) |
1.07 Kg |
Dynamic load capacity (N) |
62300 |
Static load capacity (N) |
92200 |
Dimension C1 (mm) |
25 |
Dimensions g (mm) |
M30×2 |
Material (Bushing) |
Special copper alloy |
Screw Direction |
Left-hand thread |
Lubrication Type |
Refueling type |
Dimensions B (mm) |
37 |
Dimension D1 (mm) |
34.799999999999997 |
Dimensions H (mm) |
110 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Dimension L1 |
66 mm |
Dimension L2 |
145 mm |
Dimension D2 (mm) |
70 |
