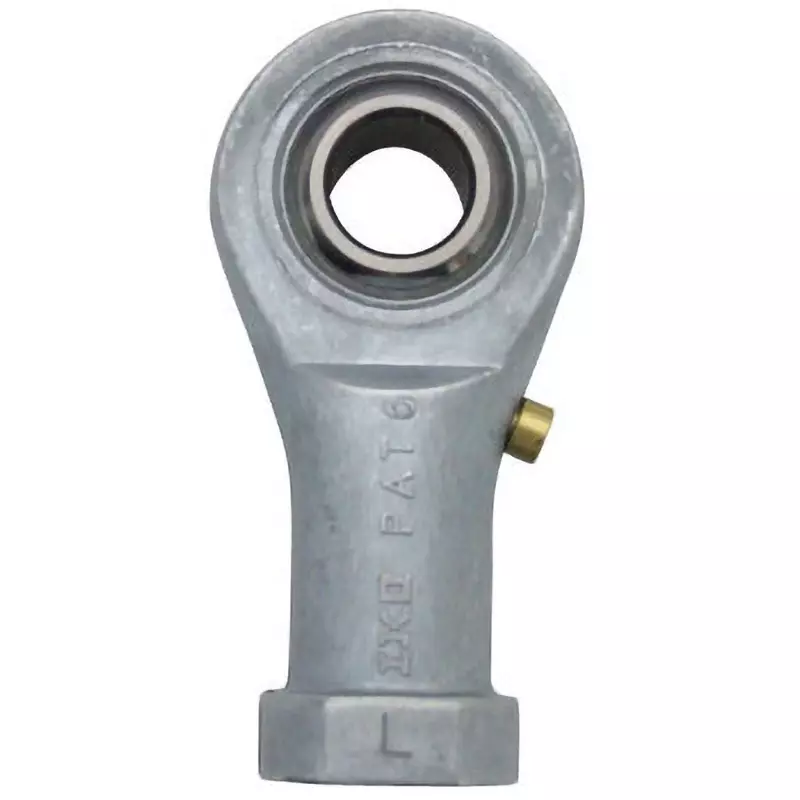

| Type of Product | Pillow Ball PHSA (With Female Thread, Lubricated, Left-Hand Thread) |
| Model No | PHSA16L |
| Material | Special Zinc Die Casting Alloy |
| Monotaro ID | 10303736 |
Type of Product |
Pillow Ball PHSA (With Female Thread, Lubricated, Left-Hand Thread) |
Model No |
PHSA16L |
Material |
Special Zinc Die Casting Alloy |
Monotaro ID |
10303736 |
Mass (g) |
190 g |
Type |
With female thread (Die-casting) |

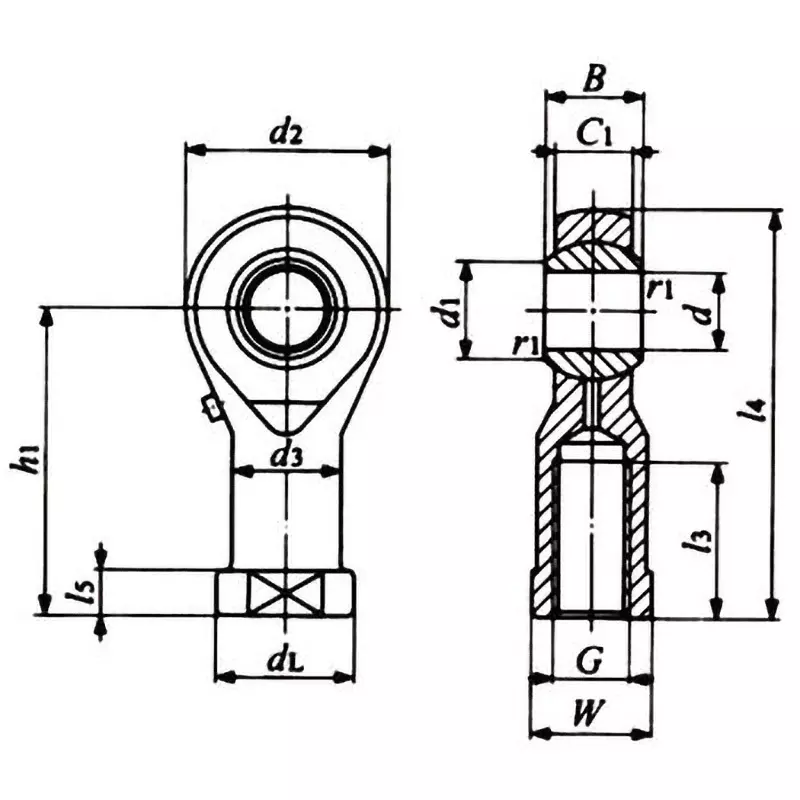

Chamfer Dimension r1 (mm) |
0.3 |
Dimensions D (mm) |
16 |
Static load capacity (N) |
23900 |
Dimensions l4 (mm) |
84 |
Dimensions l5 (mm) |
16 |
Dimension C1 (mm) |
15 |
Dimension d3 (mm) |
22 |
Dimension L3 (mm) |
36 |
Dimensions g (mm) |
M16×2 |
Screw Direction |
Left-hand thread |
Lubrication Type |
Refueling type |
Dimensions B (mm) |
21 |
Dimension D1 (mm) |
19.399999999999999 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Dimension H1 |
64 mm |
Dimension W |
22 mm |
Dimension D2 (mm) |
40 |
