Ships within 25 days
View
View
View
View

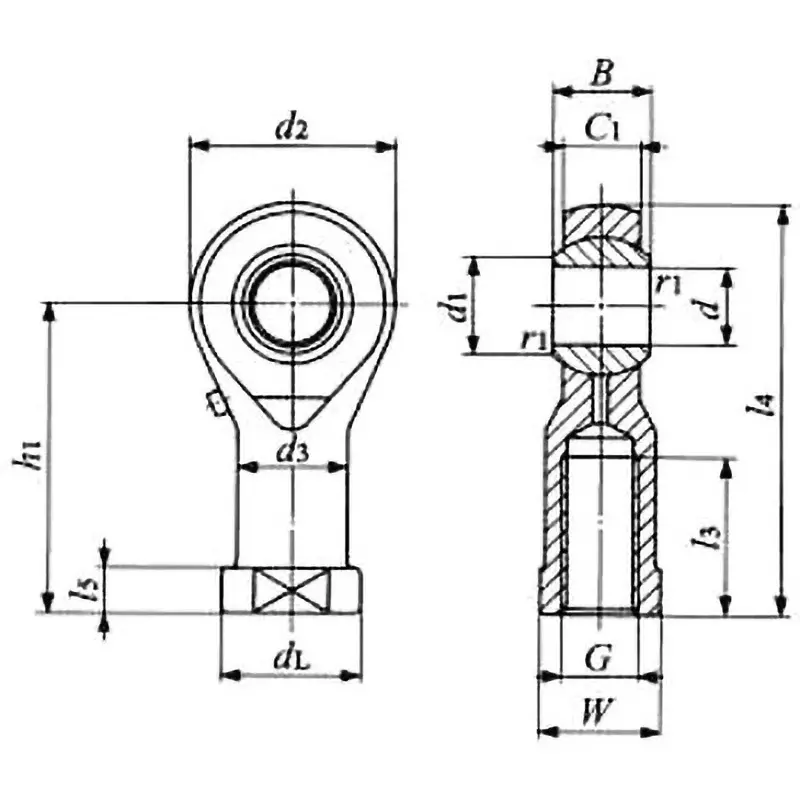

| Type of Product | Pillow Ball Rod End PHSA (Die-Cast, With Female Thread) |
| Model No | PHSA10L |
| Monotaro ID | 38328455 |
| Static load capacity (N) | 13100 |
Type of Product |
Pillow Ball Rod End PHSA (Die-Cast, With Female Thread) |
Model No |
PHSA10L |
Monotaro ID |
38328455 |
Static load capacity (N) |
13100 |
Dimension dL (mm) |
19 |
Dimensions l4 (mm) |
57 |
Dimensions l5 (mm) |
6.5 |
Dimension C1 (mm) |
10.5 |
Dimension L3 (mm) |
23 |
Screw Direction |
Left-hand thread |
Lubrication Type |
Refueling type |
Dimensions B (mm) |
14 |
Dimension d1 (Φmm) |
12.9 |
Dimension D (Φmm) |
10 |
Dimension d3 (Φmm) |
15 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Dimension H1 |
43 mm |
Dimension W |
17 mm |
Dimension D2 (mm) |
28 |
G Thread |
M10×1.5 |
