| Type of Product | Pillow Ball PHS EC (With Female Thread, Lube-Free, Left-Hand Thread) |
| Model No | PHS20ECL |
| Material | Zinc Chromate |
| Monotaro ID | 10302993 |
Type of Product |
Pillow Ball PHS EC (With Female Thread, Lube-Free, Left-Hand Thread) |
Model No |
PHS20ECL |
Material |
Zinc Chromate |
Monotaro ID |
10302993 |
Specifications |
1N≒0.102kgf |
Mass (g) |
380 g |
Type |
With female thread |

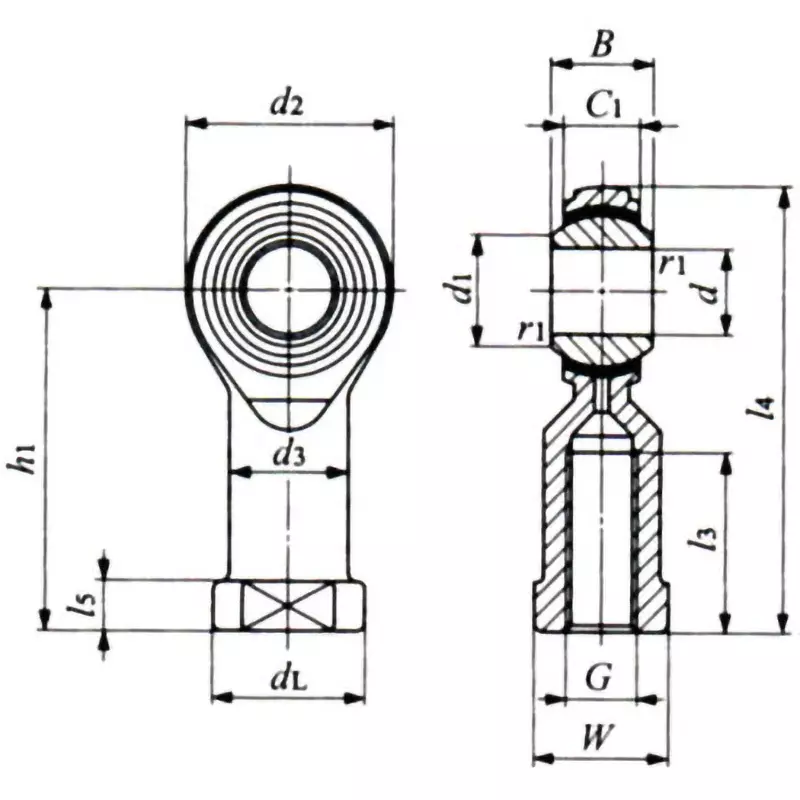

Chamfer Dimension r1 (mm) |
0.2 |
Dimensions D (mm) |
20 |
Dimensions l4 (mm) |
100 |
Dimensions l5 (mm) |
10 |
Dimension C1 (mm) |
18 |
Dimension d3 (mm) |
27.5 |
Dimension L3 (mm) |
40 |
Dimensions g (mm) |
M20×1.5 |
Material (Bushing) |
Special copper alloy |
Screw Direction |
Left-hand thread |
Dimensions B (mm) |
25 |
Dimension D1 (mm) |
24.4 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Nippon Thompson Co., Ltd. |
Dimension H1 |
77 mm |
Dimension W |
30 mm |
Dimension D2 (mm) |
46 |
