| Type of Product | Stainless Steel Ball Bearings 6900 Series 2RS (Both Sides Contact Rubber Seal Type) |
| Model No | SS 6903 2RS |
| Material | (Outer ring / inner ring) Martensitic stainless steel SUS440C equivalent, (Cage, shield) Austenitic stainless steel SUS304 or SUS316 (L) equivalent |
| Monotaro ID | 24540635 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Stainless Steel Ball Bearings 6900 Series 2RS (Both Sides Contact Rubber Seal Type) |
Model No |
SS 6903 2RS |
Material |
(Outer ring / inner ring) Martensitic stainless steel SUS440C equivalent, (Cage, shield) Austenitic stainless steel SUS304 or SUS316 (L) equivalent |
Monotaro ID |
24540635 |
Rolling element material |
Martensitic stainless steel SUS440C equivalent |
Mass (g) |
18 |

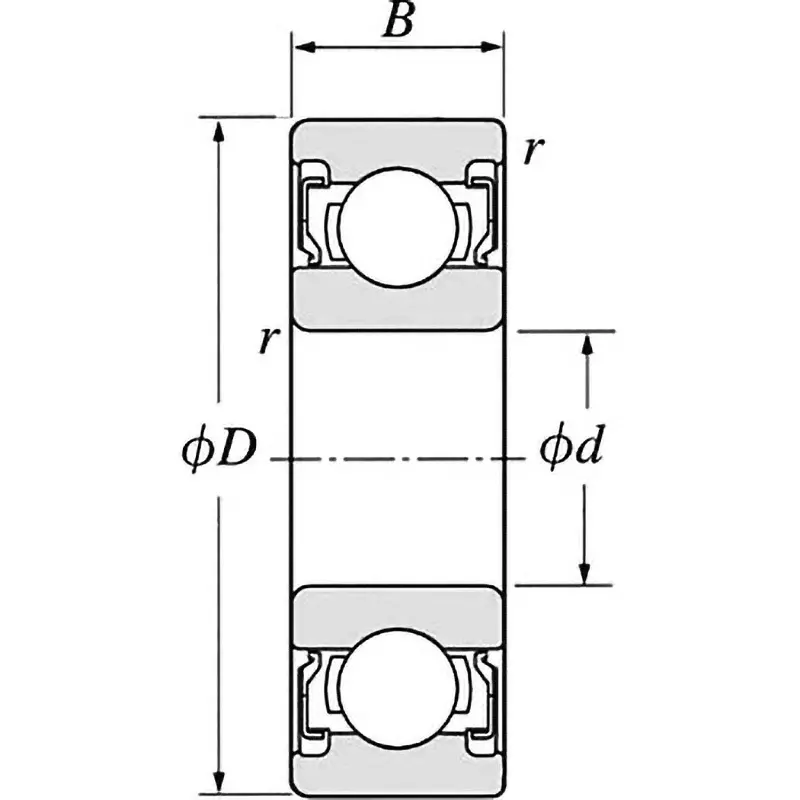

Outer Diameter D (Φmm) |
30 |
Load direction |
Radial |
JIS grade |
P0 |
Inner Diameter d (Φmm) |
17 |
No. of Track Trains |
Single row |
Race ring shape |
Deep groove ball bearings |
Outer ring type |
Flat |
Width B (mm) |
7 |
Basic static load rating Cor (N) |
2600 |
Basic dynamic load rating Cr (N) |
4600 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Chamfer Dimension r (mm) |
0.3 (minimum) |
Allowable Speed (min-1[r.p.m]) Grease Lubrication |
13000 |
Reference Mass (kg) |
1.7999999999999999E-2 |
