| Type of Product | Stainless Steel Ball Bearings 6300 Series 2RS (Both Side Contact Rubber Seal Type) |
| Model No | SS 6304 2RS |
| Material | (Outer ring / inner ring) Martensitic stainless steel SUS440C equivalent, (Cage, shield) Austenitic stainless steel SUS304 or SUS316 (L) equivalent |
| Monotaro ID | 24540714 |
Type of Product |
Stainless Steel Ball Bearings 6300 Series 2RS (Both Side Contact Rubber Seal Type) |
Model No |
SS 6304 2RS |
Material |
(Outer ring / inner ring) Martensitic stainless steel SUS440C equivalent, (Cage, shield) Austenitic stainless steel SUS304 or SUS316 (L) equivalent |
Monotaro ID |
24540714 |
Rolling element material |
Martensitic stainless steel SUS440C equivalent |
Mass (g) |
140 |

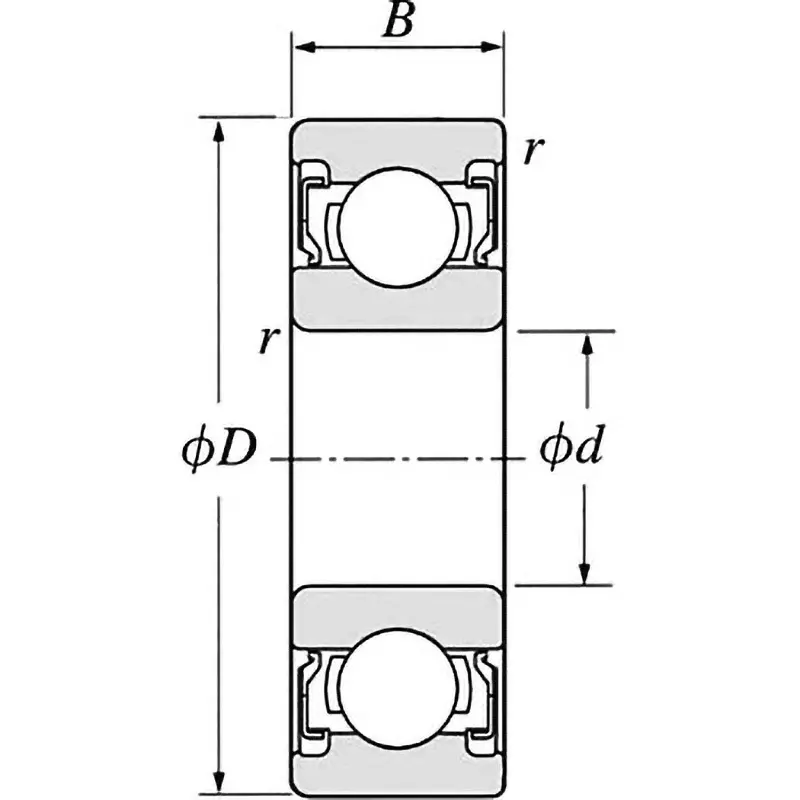

Outer Diameter D (Φmm) |
52 |
Load direction |
Radial |
JIS grade |
P0 |
Inner Diameter d (Φmm) |
20 |
No. of Track Trains |
Single row |
Race ring shape |
Deep groove ball bearings |
Outer ring type |
Flat |
Width B (mm) |
15 |
Basic static load rating Cor (N) |
7880 |
Basic dynamic load rating Cr (N) |
15800 |
Import Country |
Direct Import from Japan |
Country of Origin |
CHINA |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Chamfer Dimension r (mm) |
1.1 (minimum) |
Allowable Speed (min-1[r.p.m]) Grease Lubrication |
9500 |
Reference Mass (kg) |
0.14599999999999999 |
