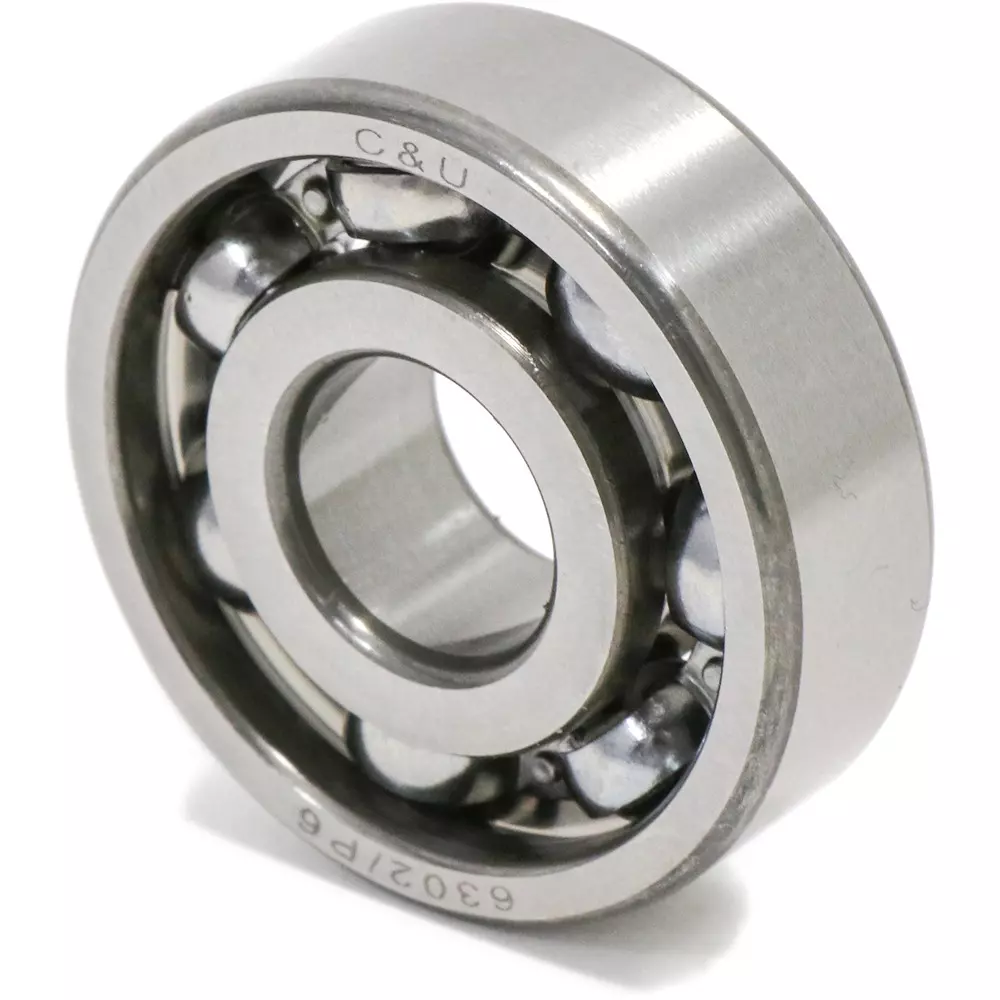

| Type of Product | Deep Groove Ball Bearing 6300 Series Open Type |
| Model No | 6302 |
| Material | High carbon chromium bearing steel |
| Monotaro ID | 38638327 |
Type of Product |
Deep Groove Ball Bearing 6300 Series Open Type |
Model No |
6302 |
Material |
High carbon chromium bearing steel |
Monotaro ID |
38638327 |
Rolling element material |
High carbon chromium bearing steel |

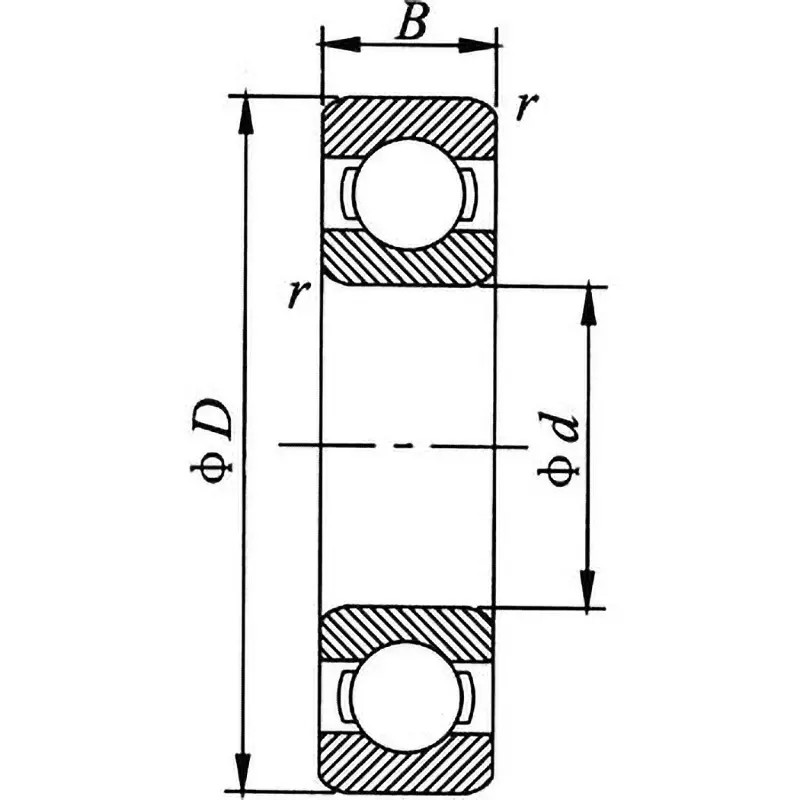

Outer Diameter D (Φmm) |
42 |
Load direction |
Radial |
JIS grade |
0 |
Inner Diameter d (Φmm) |
15 |
No. of Track Trains |
Single row |
Outer ring type |
Flat |
Shield Shape |
Open type |
Width B (mm) |
13 |
Basic static load rating Cor (N) |
5450 |
Basic dynamic load rating Cr (N) |
11400 |
Import Country |
Direct Import from Japan |
Country of Origin |
CHINA |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Chamfer Dimension r (mm) |
1 |
Allowable Speed (min-1 [r.p.m]) Oil Lubrication |
21000 |
Bearing Number |
6300 |
