| Type of Product | Stainless Steel Ball Bearing 6000 Series ZZ |
| Model No | S 6001 ZZ |
| Material | (Outer ring/inner ring) Martensitic stainless steel SUS440C equivalent, (Cage/Shield) Austenitic stainless steel SUS304 equivalent |
| Monotaro ID | 39234194 |
Type of Product |
Stainless Steel Ball Bearing 6000 Series ZZ |
Model No |
S 6001 ZZ |
Material |
(Outer ring/inner ring) Martensitic stainless steel SUS440C equivalent, (Cage/Shield) Austenitic stainless steel SUS304 equivalent |
Monotaro ID |
39234194 |
Rolling element material |
Martensitic stainless steel SUS440C equivalent |
Mass (g) |
19 |

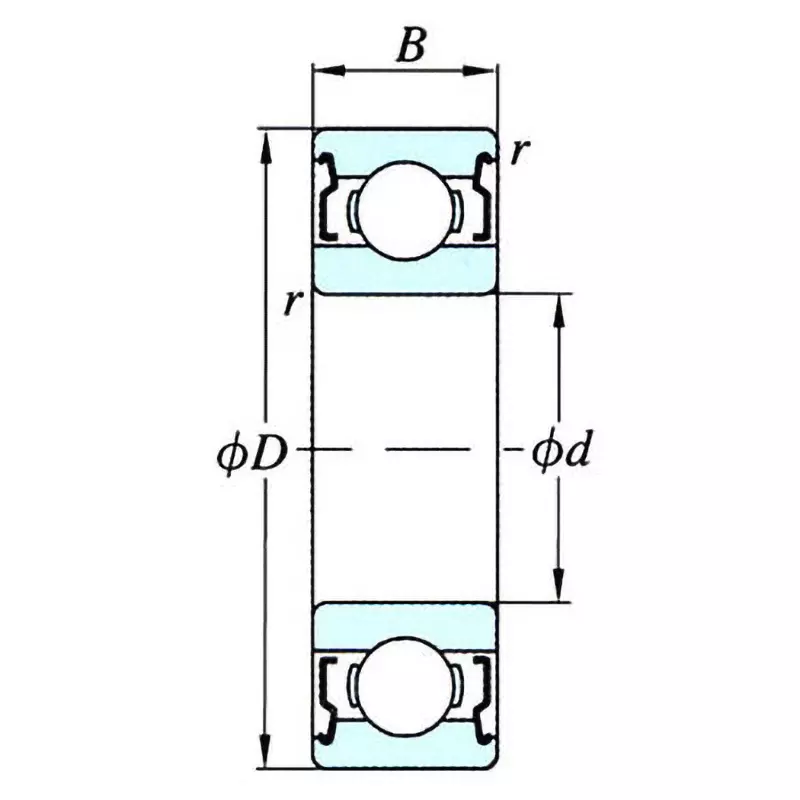

Outer Diameter D (Φmm) |
28 |
Load direction |
Radial |
JIS grade |
0 |
Inner Diameter d (Φmm) |
12 |
No. of Track Trains |
Single row |
Race ring shape |
Deep groove ball bearings |
Outer ring type |
Flat |
Width B (mm) |
8 |
Basic static load rating Cor (N) |
2380 |
Basic dynamic load rating Cr (N) |
5100 |
Import Country |
Direct Import from Japan |
Country of Origin |
CHINA |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Chamfer Dimension r (mm) |
0.3 (minimum) |
Allowable Speed (min-1[r.p.m]) Grease Lubrication |
7000 |
Allowable Speed (min-1 [r.p.m]) Oil Lubrication |
10000 |
Reference Mass (kg) |
0.02 |
