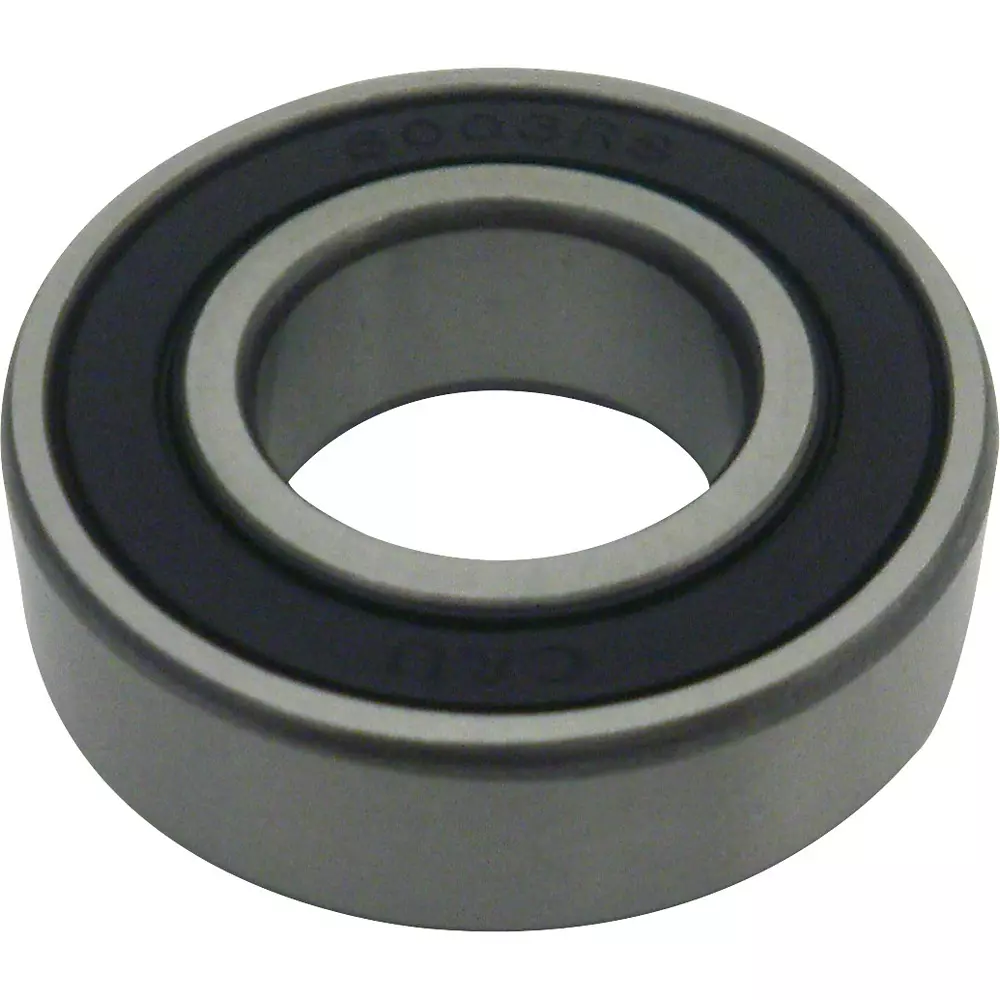

| Type of Product | Ball Bearing 6800 Series 2RZ, non-contact Rubber Seal on Both Side |
| Model No | 6804-2RZ |
| Material | High carbon chromium bearing steel |
| Monotaro ID | 39325675 |
Type of Product |
Ball Bearing 6800 Series 2RZ, non-contact Rubber Seal on Both Side |
Model No |
6804-2RZ |
Material |
High carbon chromium bearing steel |
Monotaro ID |
39325675 |
Rolling element material |
High carbon chromium bearing steel |
Outer Diameter D (Φmm) |
32 |
Load direction |
Radial |
JIS grade |
0 |
Inner Diameter d (Φmm) |
20 |
No. of Track Trains |
Single row |
Outer ring type |
Flat |
Shield Shape |
Non-contact rubber seal type on both sides |
Width B (mm) |
7 |
Basic static load rating Cor (N) |
2450 |
Basic dynamic load rating Cr (N) |
4000 |
Import Country |
Direct Import from Japan |
Country of Origin |
China |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Chamfer Dimension r (mm) |
0.3 |
Allowable Speed (min-1[r.p.m]) Grease Lubrication |
21000 |
Bearing Number |
6800 |
