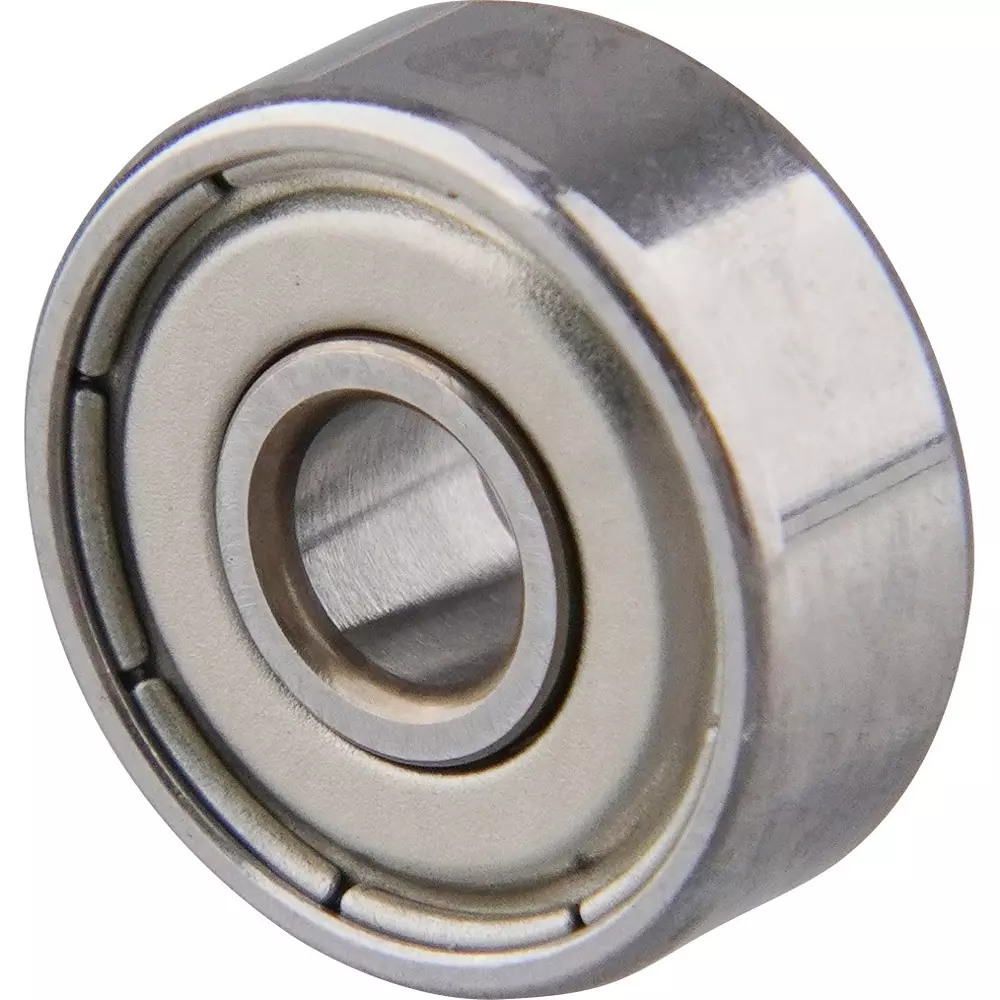

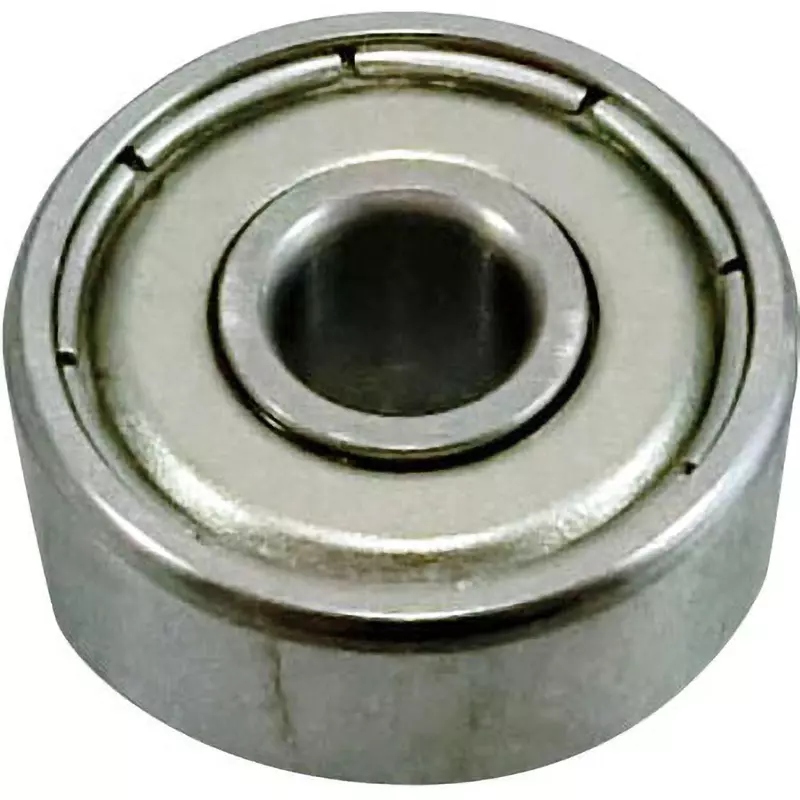

| Type of Product | Miniature Bearings Shielded On Double Steel Plate Shield Type |
| Model No | 624ZZ |
| Material | High carbon chromium bearing steel |
| Monotaro ID | 11698435 |
Type of Product |
Miniature Bearings Shielded On Double Steel Plate Shield Type |
Model No |
624ZZ |
Material |
High carbon chromium bearing steel |
Monotaro ID |
11698435 |
Rolling element material |
High carbon chromium bearing steel |
Mass (g) |
3.04 |
Outer Diameter D (Φmm) |
13 |
JIS grade |
0 |
Inner Diameter d (Φmm) |
4 |
No. of Track Trains |
Single row |
Race ring shape |
Deep groove ball bearings |
Outer ring type |
Flat |
Shield Shape |
Double-sided steel plate shield type |
Width B (mm) |
5 |
Chamfer Dimension r1 (mm) |
0.2 |
Basic static load rating Cor (N) |
480 |
Basic dynamic load rating Cr (N) |
1290 |
Import Country |
Direct Import from Japan |
Country of Origin |
CHINA |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Allowable Speed (min-1[r.p.m]) Grease Lubrication |
39000 |
Allowable Speed (min-1 [r.p.m]) Oil Lubrication |
47000 |
Bearing Number |
600 |
