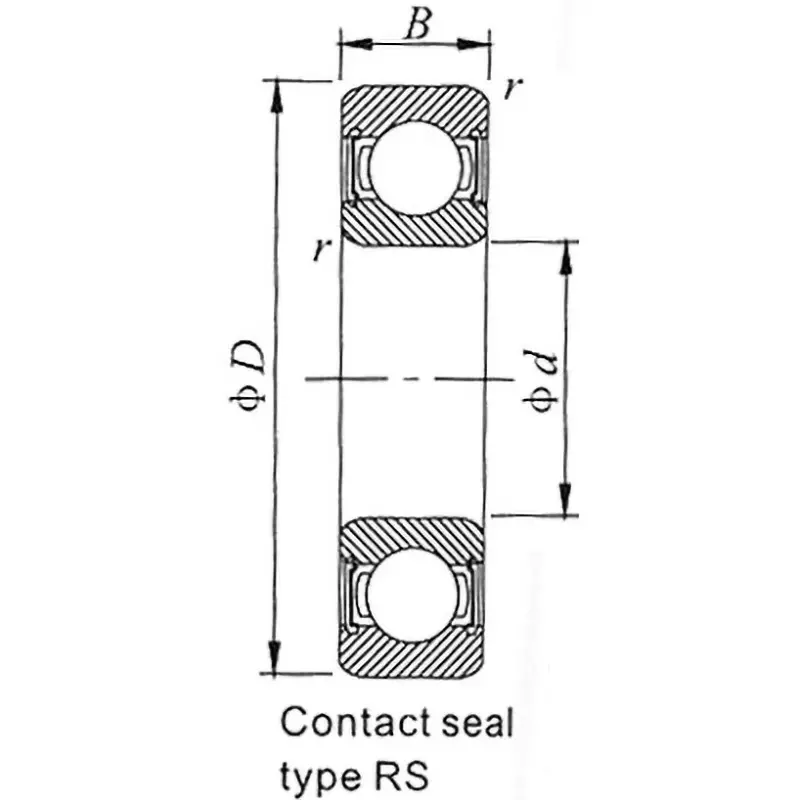

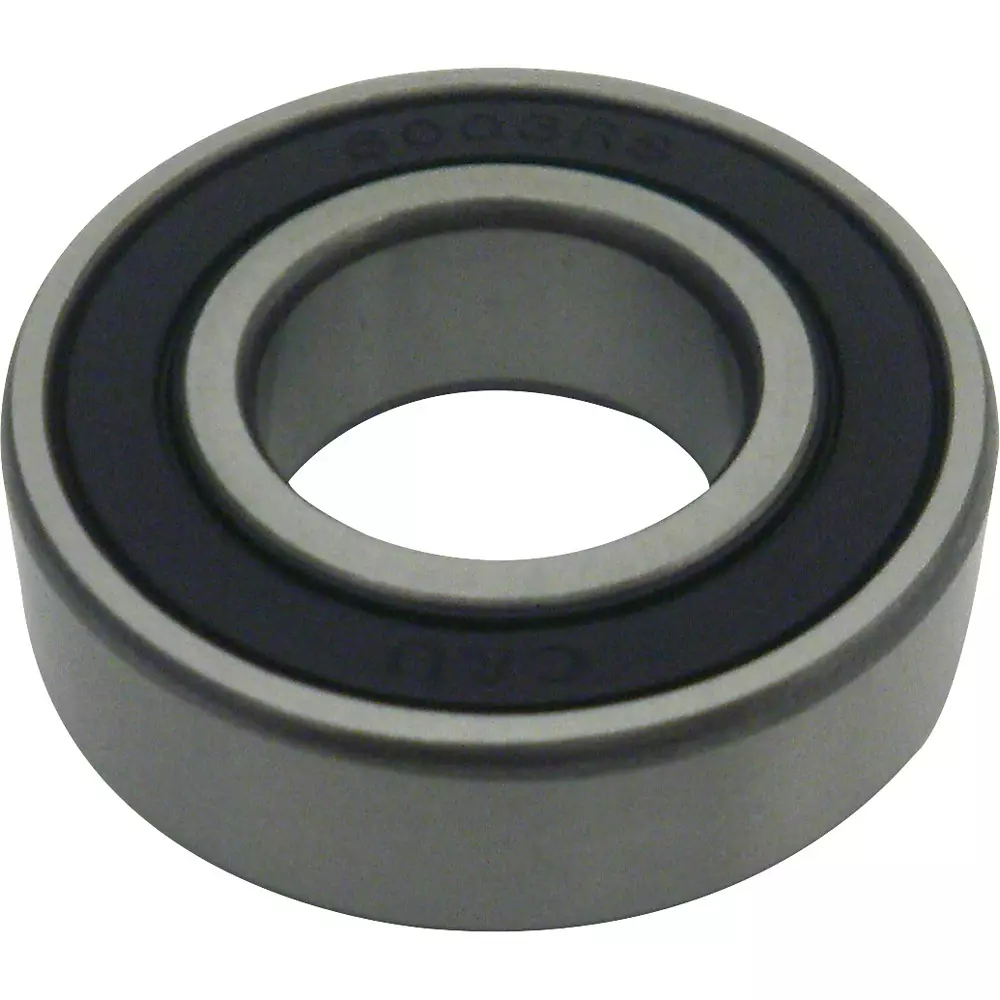

| Type of Product | Ball Bearing 6800 Series 2RS (Double Contact Rubber Seal Type) |
| Model No | 6801-2RS |
| Material | High carbon chromium bearing steel |
| Monotaro ID | 39325456 |
Type of Product |
Ball Bearing 6800 Series 2RS (Double Contact Rubber Seal Type) |
Model No |
6801-2RS |
Material |
High carbon chromium bearing steel |
Monotaro ID |
39325456 |
Rolling element material |
High carbon chromium bearing steel |
Outer Diameter D (Φmm) |
21 |
Load direction |
Radial |
JIS grade |
0 |
Inner Diameter d (Φmm) |
12 |
No. of Track Trains |
Single row |
Outer ring type |
Flat |
Shield Shape |
Both sides contact rubber seal type |
Width B (mm) |
5 |
Basic static load rating Cor (N) |
1050 |
Basic dynamic load rating Cr (N) |
1900 |
Import Country |
Direct Import from Japan |
Country of Origin |
CHINA |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Chamfer Dimension r (mm) |
0.3 |
Allowable Speed (min-1[r.p.m]) Grease Lubrication |
20000 |
Bearing Number |
6800 |
