Ships within 25 days
View
View
View
View
| Type of Product | Single Row Cylindrical Roller Bearing Type 300 |
| Model No | N314WC3 |
| Material | High carbon chromium bearing steel |
| Monotaro ID | 38387702 |
Type of Product |
Single Row Cylindrical Roller Bearing Type 300 |
Model No |
N314WC3 |
Material |
High carbon chromium bearing steel |
Monotaro ID |
38387702 |
Mass (g) |
2670 |

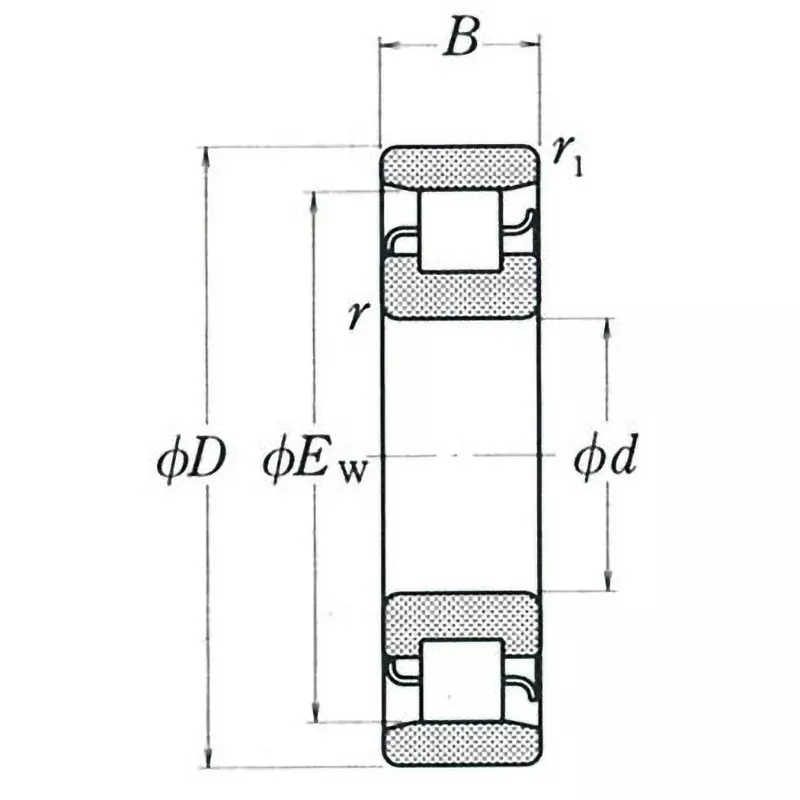

Outer Diameter D (Φmm) |
150 |
Load direction |
Radial |
JIS grade |
0 |
Inner Diameter d (Φmm) |
70 |
Outer ring type |
Flat |
Shield Shape |
Open type |
Basic load rating Cr (N) |
149000 |
Width B (mm) |
35 |
Remark |
Press cage |
Basic load rating Cor (N) |
156000 |
Dimension Ew (mm) |
130 |
Symbol of Internal Clearance Preload |
C3 |
Dimension r1 (mm) |
(Minimum) 2.1 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NSK Ltd. |
Allowable Speed (min-1[r.p.m]) Grease Lubrication |
4000 |
Allowable Speed (min-1 [r.p.m]) Oil Lubrication |
5000 |
Dimension R |
(Minimum) 2.1 mm |
Nominal No. |
314 |
