| Type of Product | Single Row Cylindrical Roller Bearing Type 300 |
| Model No | N324WC3 |
| Material | High carbon chromium bearing steel |
| Monotaro ID | 38387912 |
Type of Product |
Single Row Cylindrical Roller Bearing Type 300 |
Model No |
N324WC3 |
Material |
High carbon chromium bearing steel |
Monotaro ID |
38387912 |
Mass (g) |
12900 |

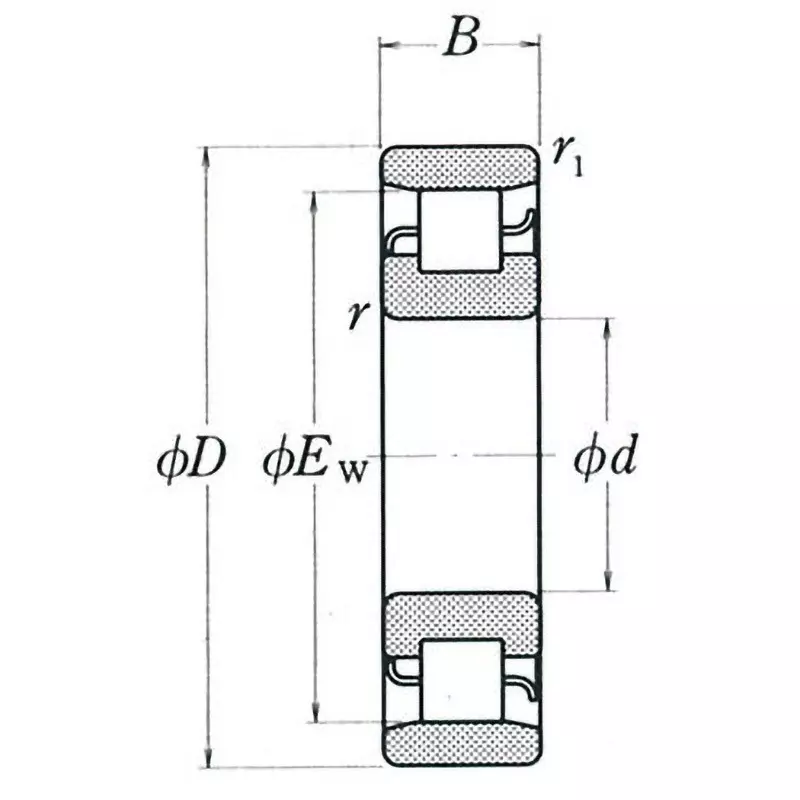

Outer Diameter D (Φmm) |
260 |
Load direction |
Radial |
JIS grade |
0 |
Inner Diameter d (Φmm) |
120 |
Outer ring type |
Flat |
Shield Shape |
Open type |
Basic load rating Cr (N) |
450000 |
Width B (mm) |
55 |
Remark |
Press cage |
Basic load rating Cor (N) |
510000 |
Dimension Ew (mm) |
226 |
Symbol of Internal Clearance Preload |
C3 |
Dimension r1 (mm) |
(Minimum) 3 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NSK Ltd. |
Allowable Speed (min-1[r.p.m]) Grease Lubrication |
2200 |
Allowable Speed (min-1 [r.p.m]) Oil Lubrication |
2800 |
Dimension R |
(Minimum) 3 mm |
Nominal No. |
324 |
