| Type of Product | Single Row Cylindrical Roller Bearing Type 300 |
| Model No | NJ308EWC3 |
| Material | High carbon chromium bearing steel |
| Monotaro ID | 38386573 |
Type of Product |
Single Row Cylindrical Roller Bearing Type 300 |
Model No |
NJ308EWC3 |
Material |
High carbon chromium bearing steel |
Monotaro ID |
38386573 |
Mass (g) |
747 |
Outer Diameter D (Φmm) |
90 |
Load direction |
Radial |
JIS grade |
0 |
Inner Diameter d (Φmm) |
40 |
Outer ring type |
Flat |
Shield Shape |
Open type |
Basic load rating Cr (N) |
83000 |
Width B (mm) |
23 |
Remark |
Press cage |
Basic load rating Cor (N) |
81500 |

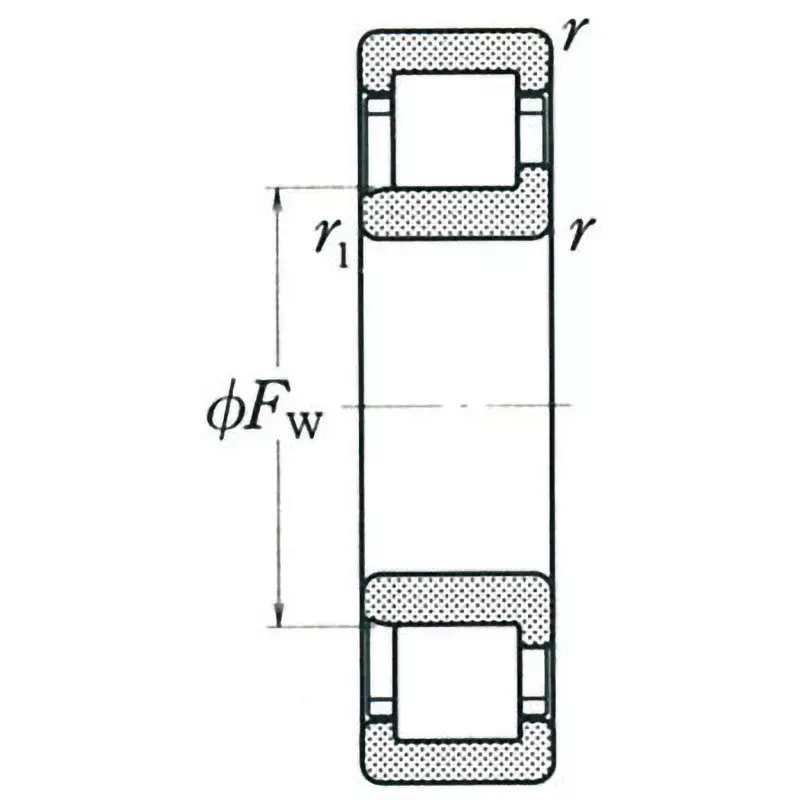

Dimension Fw (mm) |
52 |
Symbol of Internal Clearance Preload |
C3 |
Dimension r1 (mm) |
(Minimum) 1.5 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NSK Ltd. |
Allowable Speed (min-1[r.p.m]) Grease Lubrication |
6700 |
Allowable Speed (min-1 [r.p.m]) Oil Lubrication |
8000 |
Dimension R |
(Minimum) 1.5 mm |
Nominal No. |
308 |
