| Type of Product | Pillow Type Lubrication-Free Type |
| Model No | UCP217 |
| Monotaro ID | 356413 |
| Bearing Identification Number | UC217D1 |
Type of Product |
Pillow Type Lubrication-Free Type |
Model No |
UCP217 |
Monotaro ID |
356413 |
Bearing Identification Number |
UC217D1 |
Mass (Kg) |
11 Kg |

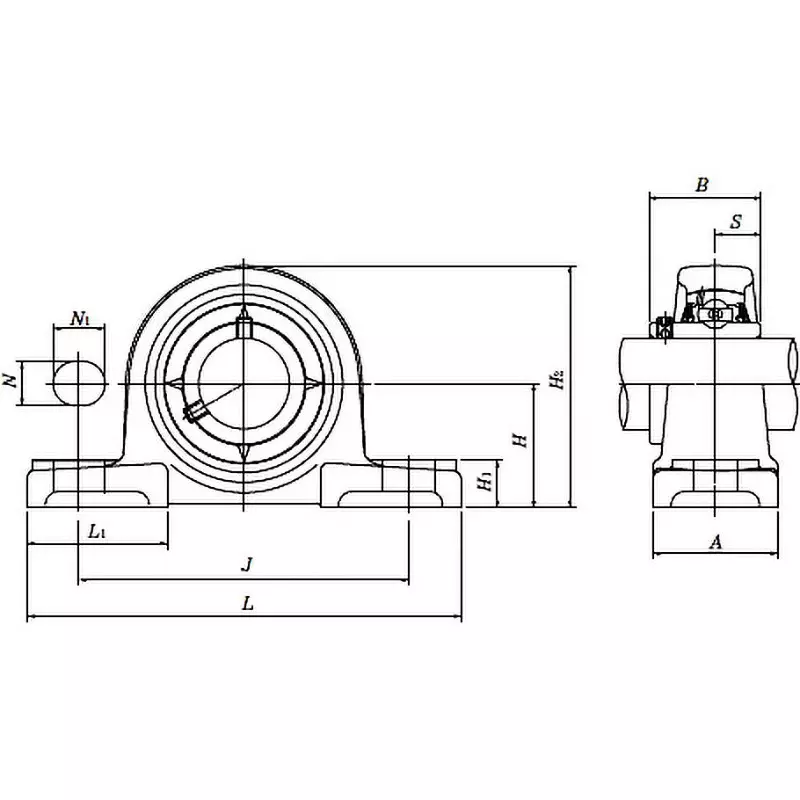

Dimensions B (mm) |
85.7 |
Shape |
Pillow unit |
Dimensions H (mm) |
95.2 |
Dimensions A (mm) |
83 |
Cover |
Without cover |
Shank Diameter (Φmm) |
85 |
Basic Static Load Rating (kN) |
64 |
Basic Dynamic Load Rating (kN) |
83.5 |
Grease Nipple |
No grease nipple |
Load Rank |
For light loads |
Shaft Hole Type |
Cylindrical hole type (with set screw) |
Nominal No. of Bearing Housing |
P217 |
Nominal Size of Mounting Bolt |
M20 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NTN Corporation |
Dimension L (mm) |
310 |
Dimension L1 |
85 mm |
Dimension S |
34.1 mm |
Dimension n (mm) |
25 |
Dimension J (mm) |
247 |
