| Type of Product | Plummer Block Split Type SN2 Large Bore Type |
| Model No | SN218L1 |
| Monotaro ID | 41105006 |
| Lubrication | Standard grease nipple and drain plug are attached |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Plummer Block Split Type SN2 Large Bore Type |
Model No |
SN218L1 |
Monotaro ID |
41105006 |
Lubrication |
Standard grease nipple and drain plug are attached |
Type |
Cylindrical bore bearing applicable type |

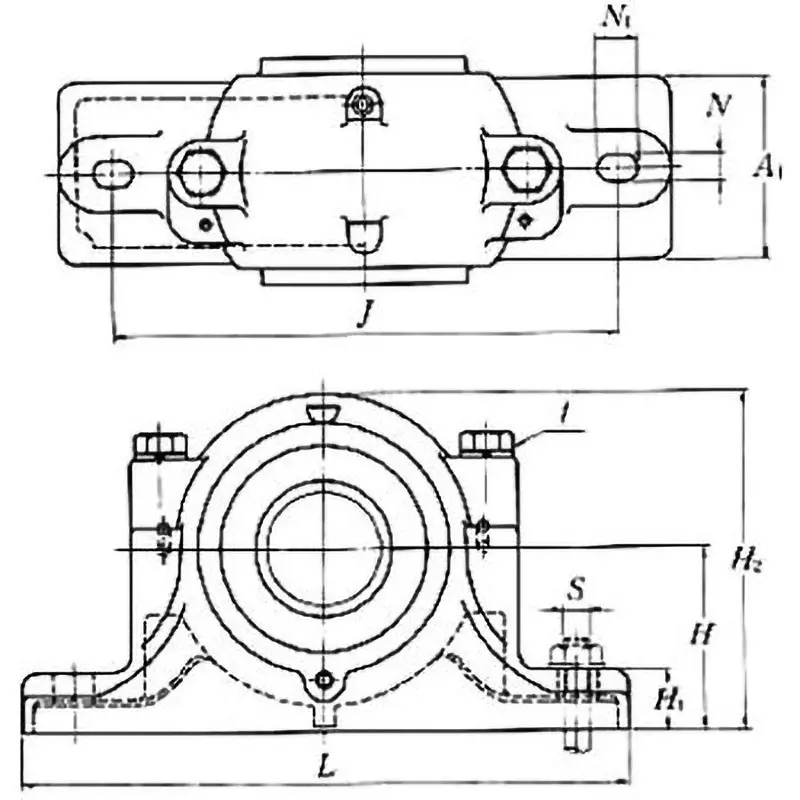

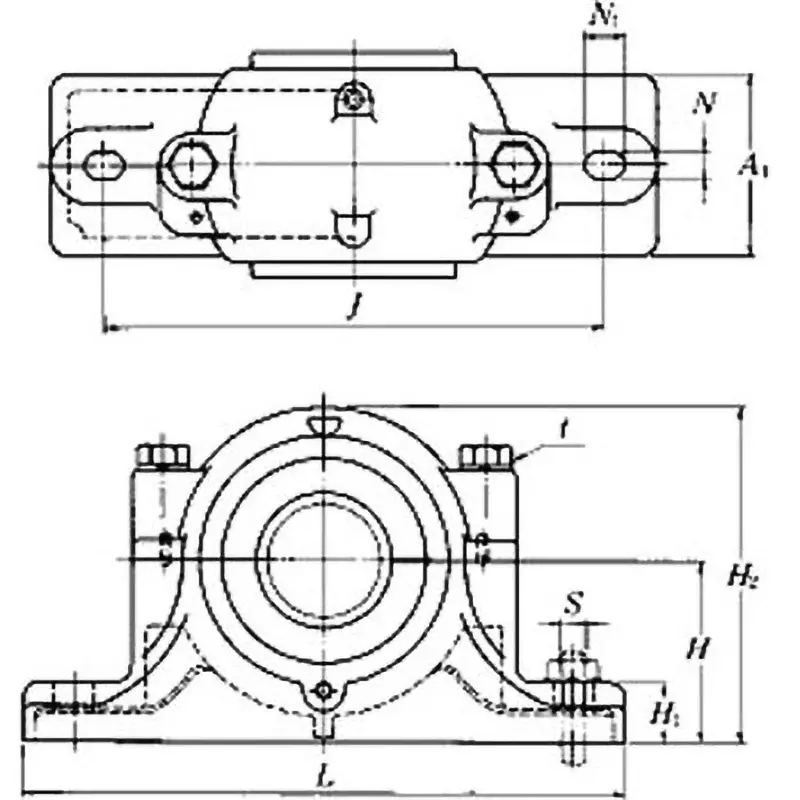

Dimensions D (mm) |
160 |
Mass (Kg) |
12 Kg |
Dimensions g (mm) |
62.4 |
Shaft diameter d1 (Φmm) |
90 |
Dimensions H (mm) |
100 |
Dimensions A (mm) |
145 |
Dimension N1 (mm) |
27 |
Number |
(Inner diameter of the receiving shaft) 18 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NTN Corporation |
Dimension L (mm) |
345 |
Dimension T |
M16 |
Dimension H1 |
35 mm |
Dimension S |
M20 |
Nominal No. |
SN218, (rubber seal) ZF22 |
Dimension n (mm) |
22 |
Dimension J (mm) |
290 |
Dimension H2 |
195 mm |
Dimension A1 |
100 mm |
Shaft Diameter D2 (Φmm) |
100 |
