Ships within 19 days
View
View
View
View
| Type of Product | Plummer Block Split Type SNZ2 Different Diameter |
| Model No | SNZ215L1 |
| Monotaro ID | 41105873 |
| Lubrication | Standard grease nipple and drain plug are attached |
Type of Product |
Plummer Block Split Type SNZ2 Different Diameter |
Model No |
SNZ215L1 |
Monotaro ID |
41105873 |
Lubrication |
Standard grease nipple and drain plug are attached |
Type |
Cylindrical bore bearing applicable type |

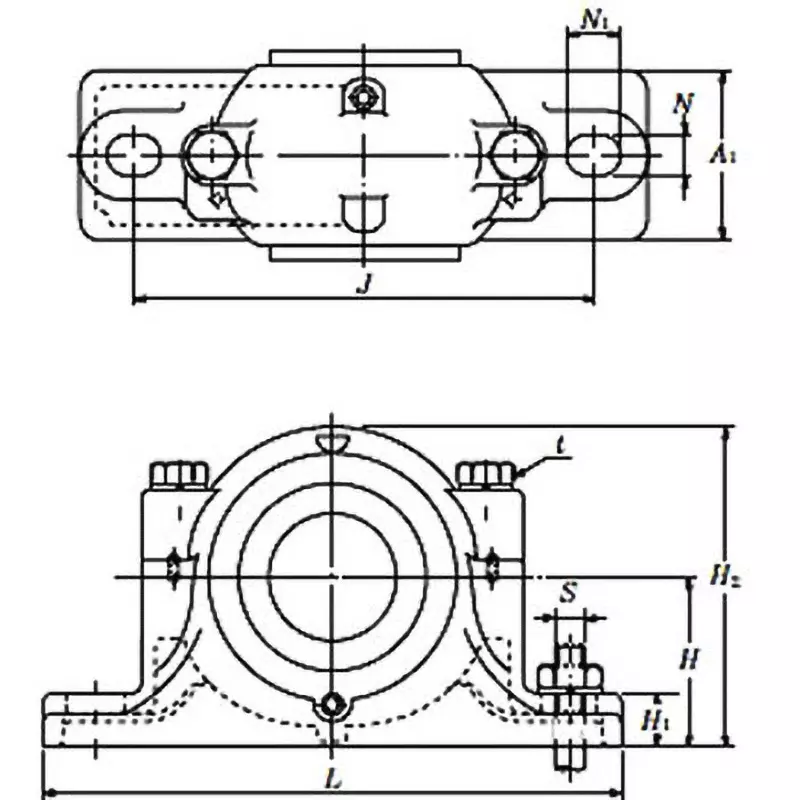

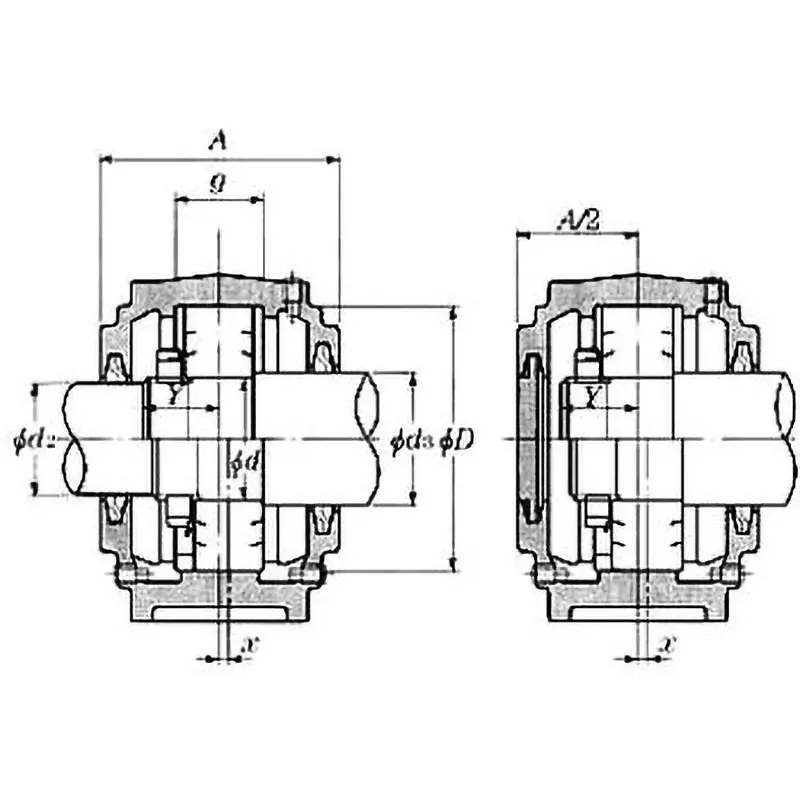

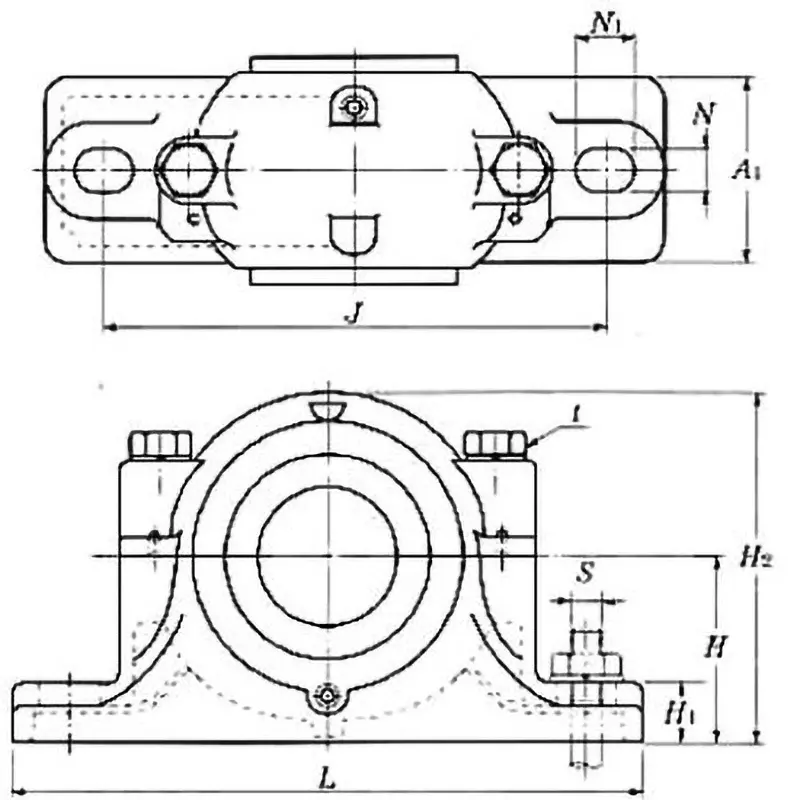

Dimensions D (mm) |
130 |
Mass (Kg) |
9.6 Kg |
Dimensions g (mm) |
41 |
Shaft diameter d1 (Φmm) |
75 |
Dimensions H (mm) |
80 |
Dimensions A (mm) |
115 |
Dimension N1 (mm) |
23 |
Number |
(Inner diameter number of receiving shaft) 15 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NTN Corporation |
Dimension L (mm) |
280 |
Dimension T |
M12 |
Dimension H1 |
30 mm |
Shaft Outer Diameter |
85 mm |
Dimension S |
M16 |
Nominal No. |
SNZ215, (Rubber seal) d2 side / ZF15: d3 side / ZF19 |
Dimension n (mm) |
18 |
Dimension J (mm) |
230 |
Dimension H2 |
155 mm |
Dimension A1 |
80 mm |
