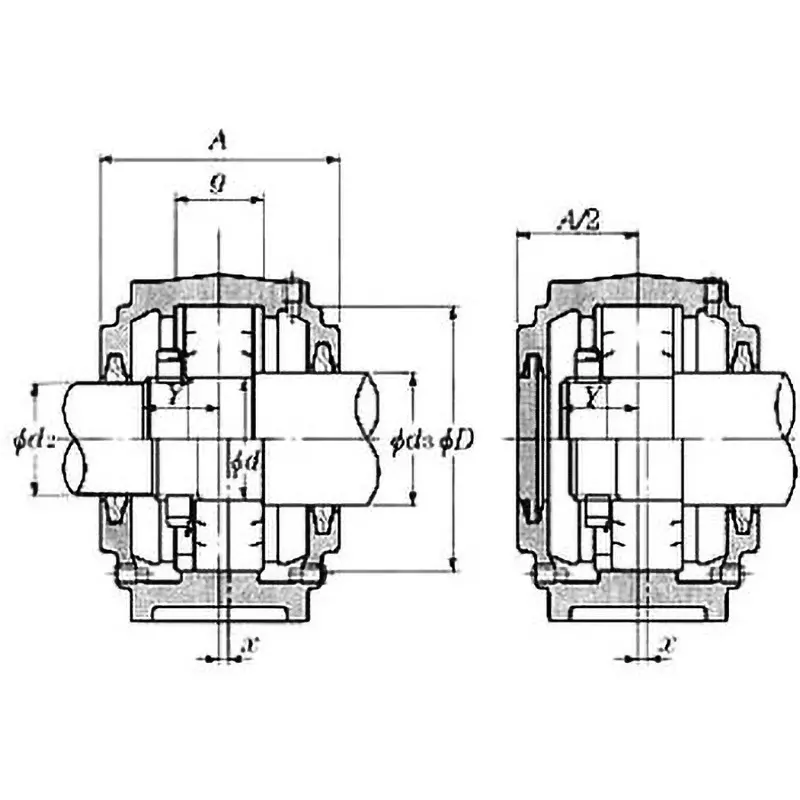

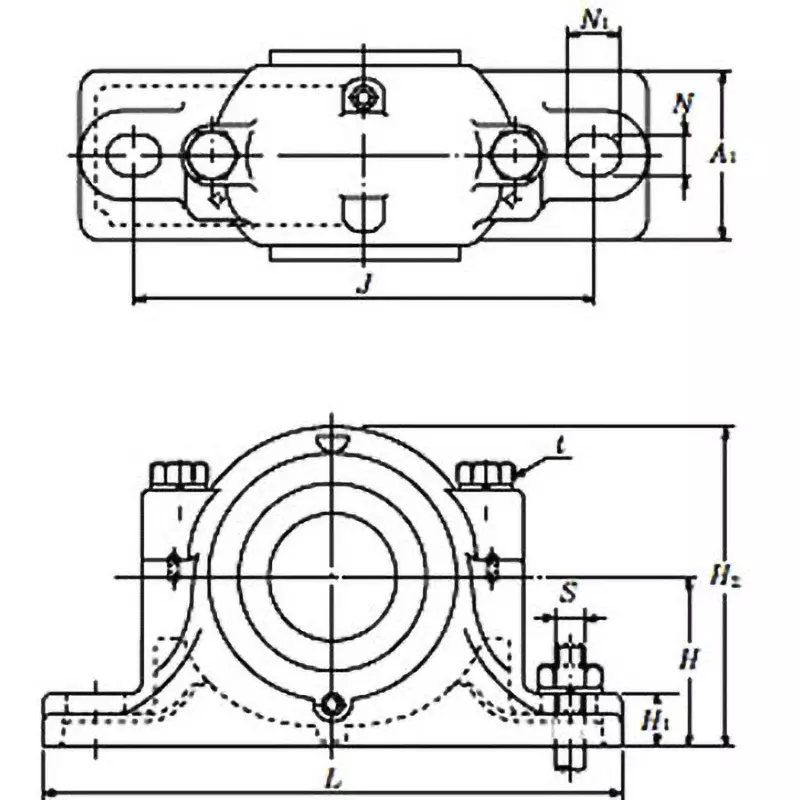

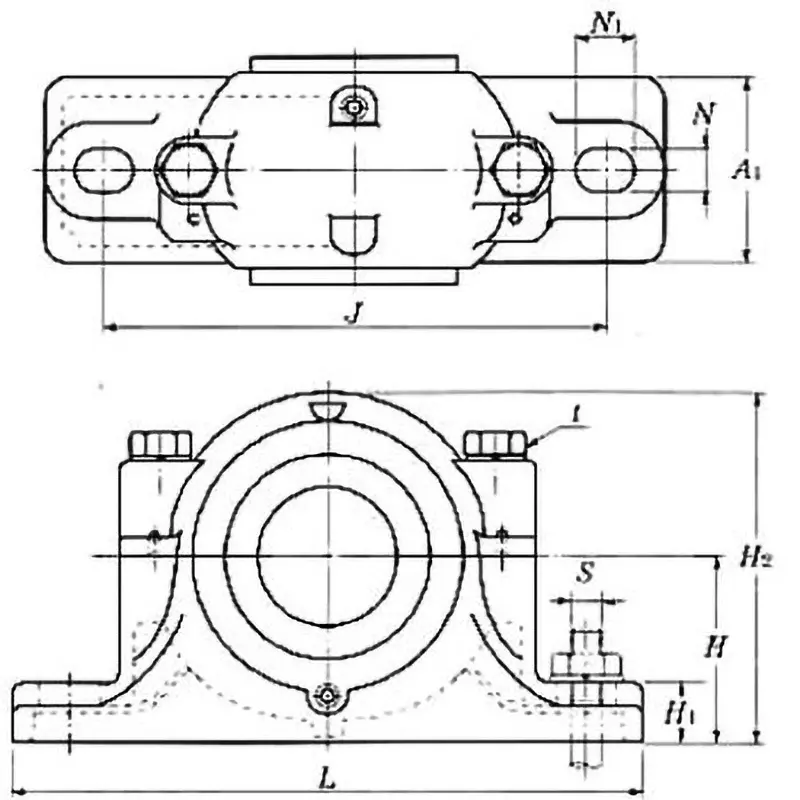

| Type of Product | Plummer Block Split Type SNZ2 Different Diameter |
| Model No | SNZ220L5 |
| Monotaro ID | 41106065 |
| Lubrication | Comes with standard oil plug and drain plug |
Type of Product |
Plummer Block Split Type SNZ2 Different Diameter |
Model No |
SNZ220L5 |
Monotaro ID |
41106065 |
Lubrication |
Comes with standard oil plug and drain plug |
Type |
Cylindrical bore bearing applicable type |
Dimensions D (mm) |
180 |
Mass (Kg) |
23 Kg |
Dimensions g (mm) |
70.3 |
Shaft diameter d1 (Φmm) |
100 |
Dimensions H (mm) |
112 |
Dimensions A (mm) |
160 |
Dimension N1 (mm) |
32 |
Number |
(Inner bore number of shaft used) 20 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NTN Corporation |
Dimension L (mm) |
380 |
Dimension T |
M20 |
Dimension H1 |
40 mm |
Shaft Outer Diameter |
115 mm |
Dimension S |
M24 |
Nominal No. |
SNZ220, (Rubber seal) d2 side / ZF20: d3 side / ZF26 |
Dimension n (mm) |
26 |
Dimension J (mm) |
320 |
Dimension H2 |
218 mm |
Dimension A1 |
110 mm |
