| Type of Product | Plummer Block Split Type SNZ3 Different Diameter |
| Model No | SNZ307L1 |
| Monotaro ID | 41106302 |
| Lubrication | Standard grease nipple and drain plug are attached |
Type of Product |
Plummer Block Split Type SNZ3 Different Diameter |
Model No |
SNZ307L1 |
Monotaro ID |
41106302 |
Lubrication |
Standard grease nipple and drain plug are attached |
Type |
Cylindrical bore bearing applicable type |

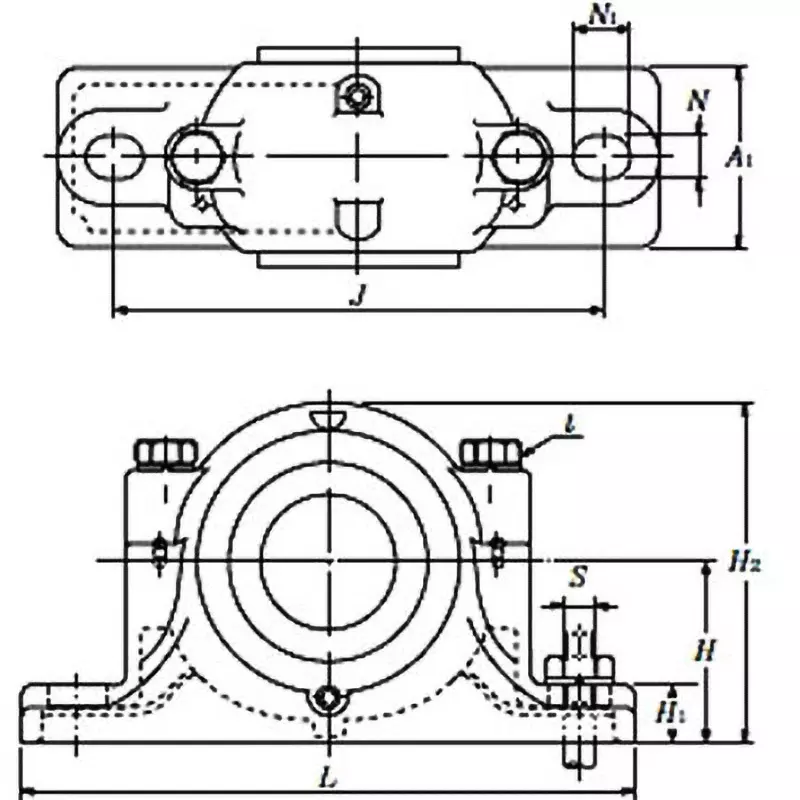

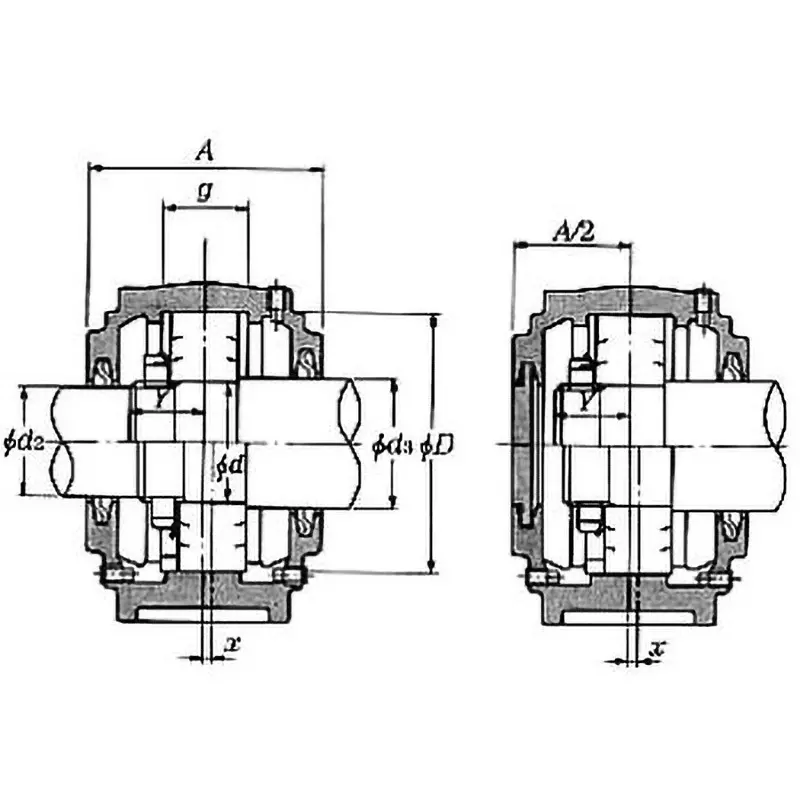

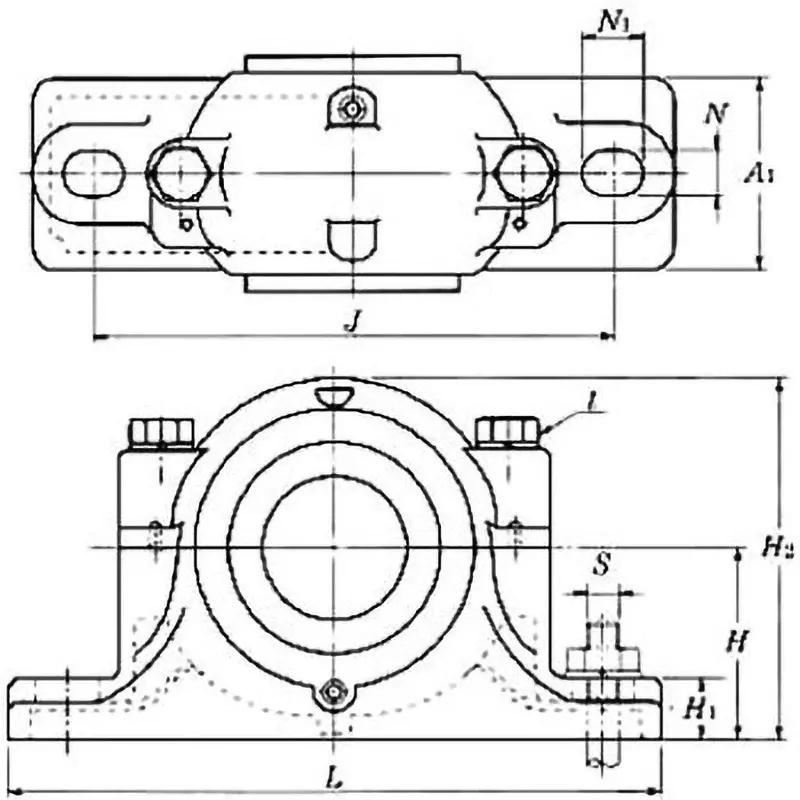

Dimensions D (mm) |
80 |
Mass (Kg) |
3.1 Kg |
Dimensions g (mm) |
41 |
Shaft diameter d1 (Φmm) |
35 |
Dimensions H (mm) |
60 |
Dimensions A (mm) |
90 |
Dimension N1 (mm) |
20 |
Number |
(Inner diameter number of the receiving shaft) 07 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NTN Corporation |
Dimension L (mm) |
205 |
Dimension T |
M10 |
Dimension H1 |
25 mm |
Shaft Outer Diameter |
45 mm |
Dimension S |
M12 |
Nominal No. |
SNZ307, (Rubber seal) d2 side / ZF7: d3 side / ZF10 |
Dimension n (mm) |
15 |
Dimension J (mm) |
170 |
Dimension H2 |
110 mm |
Dimension A1 |
60 mm |
