| Type of Product | Plummer Block Split Type Sd5 Standard Type |
| Model No | SD540L5 |
| Monotaro ID | 41106966 |
| Lubrication | Comes with standard oil plug and drain plug |
Type of Product |
Plummer Block Split Type Sd5 Standard Type |
Model No |
SD540L5 |
Monotaro ID |
41106966 |
Lubrication |
Comes with standard oil plug and drain plug |
Type |
Tapered bore bearing application type |

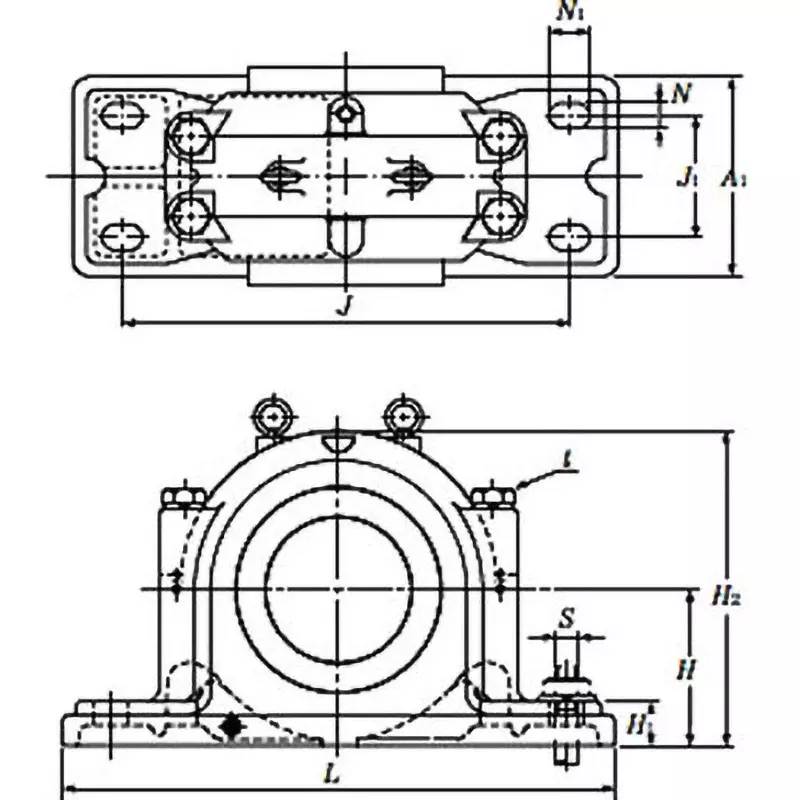

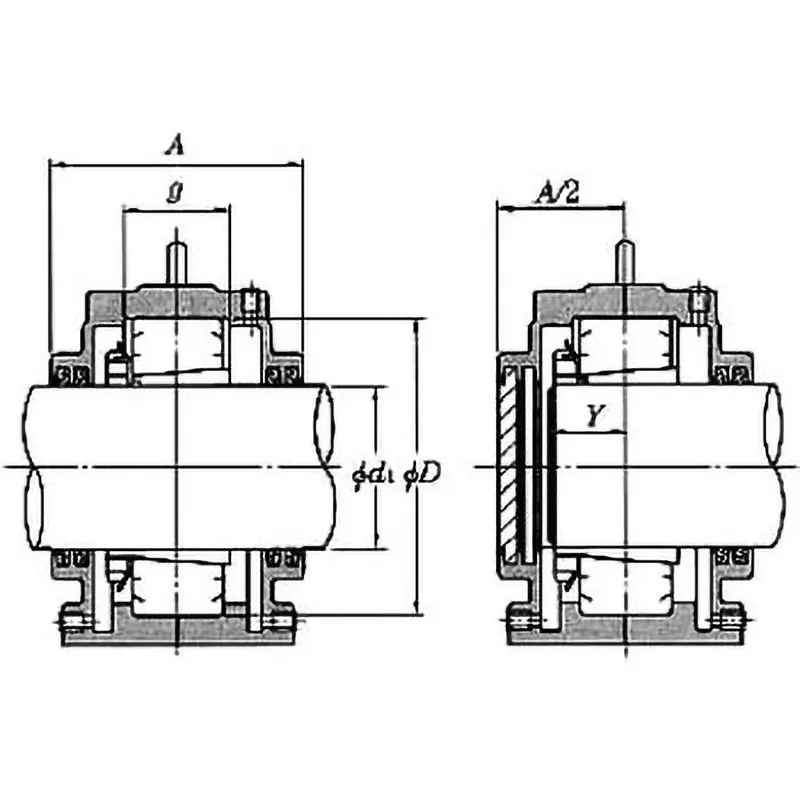

Dimensions D (mm) |
360 |
Mass (Kg) |
150 Kg |
Dimensions g (mm) |
108 |
Shaft diameter d1 (Φmm) |
180 |
Dimensions H (mm) |
210 |
Dimensions A (mm) |
300 |
Dimension N1 (mm) |
55 |
Number |
(Inner diameter number of receiving shaft) 40 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NTN Corporation |
Dimension L (mm) |
740 |
Dimension T |
M32 |
Dimension H1 |
65 mm |
Dimension S |
M40 |
Nominal No. |
SD540, (Rubber seal) ZF40 |
Dimension n (mm) |
35 |
Dimension J (mm) |
610 |
Dimension H2 |
420 mm |
Dimension A1 |
270 mm |
Dimension J1 (mm) |
170 |
