| Type of Product | Bearing Unit Pillow Type Oil-Free Type |
| Model No | C-UCP210 |
| Monotaro ID | 353552 |
| Mass (Kg) | 4.3 Kg (Reference) |
Type of Product |
Bearing Unit Pillow Type Oil-Free Type |
Model No |
C-UCP210 |
Monotaro ID |
353552 |
Mass (Kg) |
4.3 Kg (Reference) |

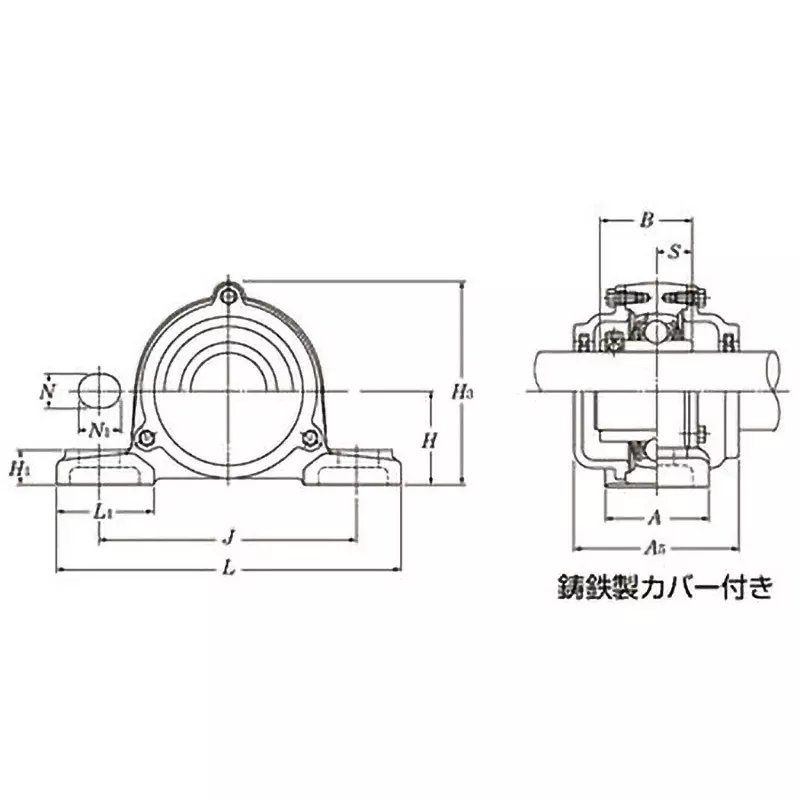

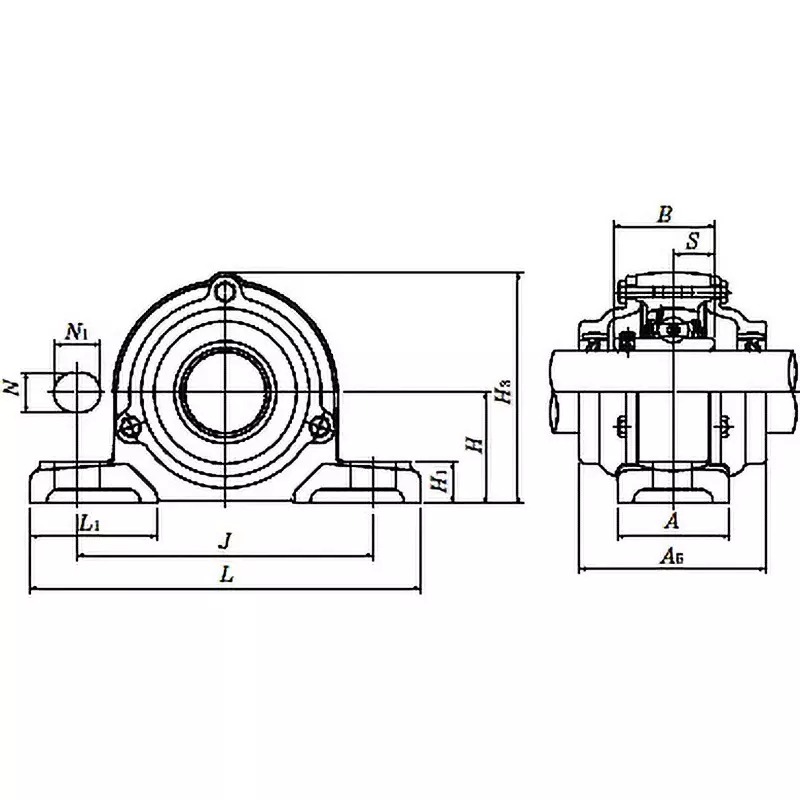

Dimensions B (mm) |
51.6 |
Shape |
Pillow unit |
Dimensions H (mm) |
57.2 |
Dimensions A (mm) |
60 |
Cover |
Cast iron cover with rubber seals on both sides |
Shank Diameter (Φmm) |
50 |
Basic Static Load Rating (kN) |
23.2 |
Basic Dynamic Load Rating (kN) |
35 |
Grease Nipple |
No grease nipple |
Load Rank |
For light loads |
Shaft Hole Type |
Cylindrical hole type |
Nominal Size of Mounting Bolt |
M16 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NTN Corporation |
Dimension L (mm) |
206 |
Dimension T |
3 mm |
Dimension L1 |
65 mm |
Dimension H1 |
21 mm |
Dimension S |
19 mm |
Dimension n (mm) |
20 |
Dimension J (mm) |
159 |
