| Type of Product | Bearing Unit Pillow Type Oil Supply Type |
| Model No | S-UCP204D1 |
| Monotaro ID | 354977 |
| Mass (g) | 700 g (reference) |
Type of Product |
Bearing Unit Pillow Type Oil Supply Type |
Model No |
S-UCP204D1 |
Monotaro ID |
354977 |
Mass (g) |
700 g (reference) |
Mass (Kg) |
0.7 (reference) |

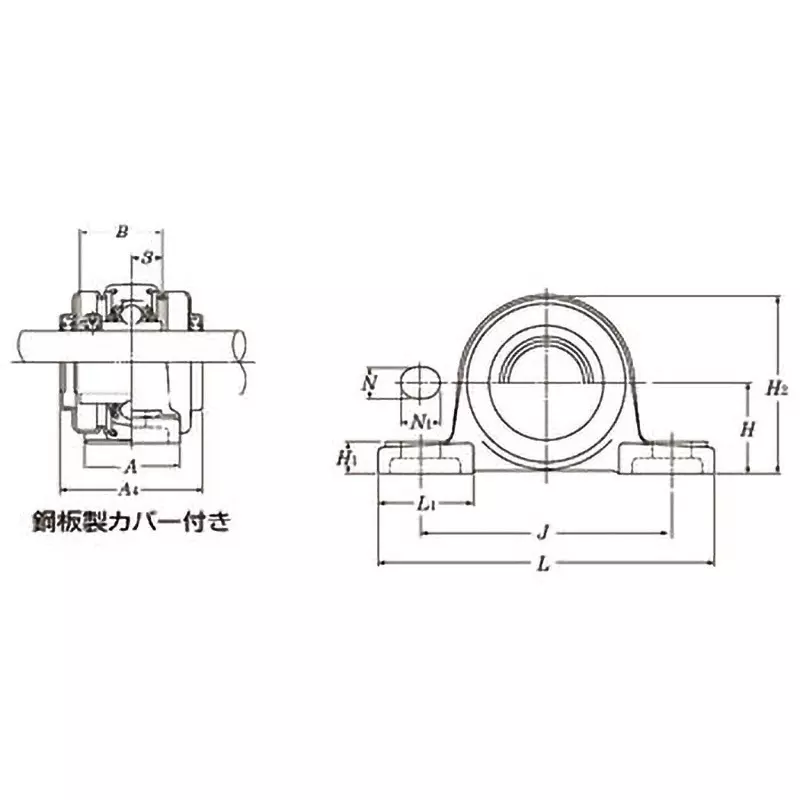

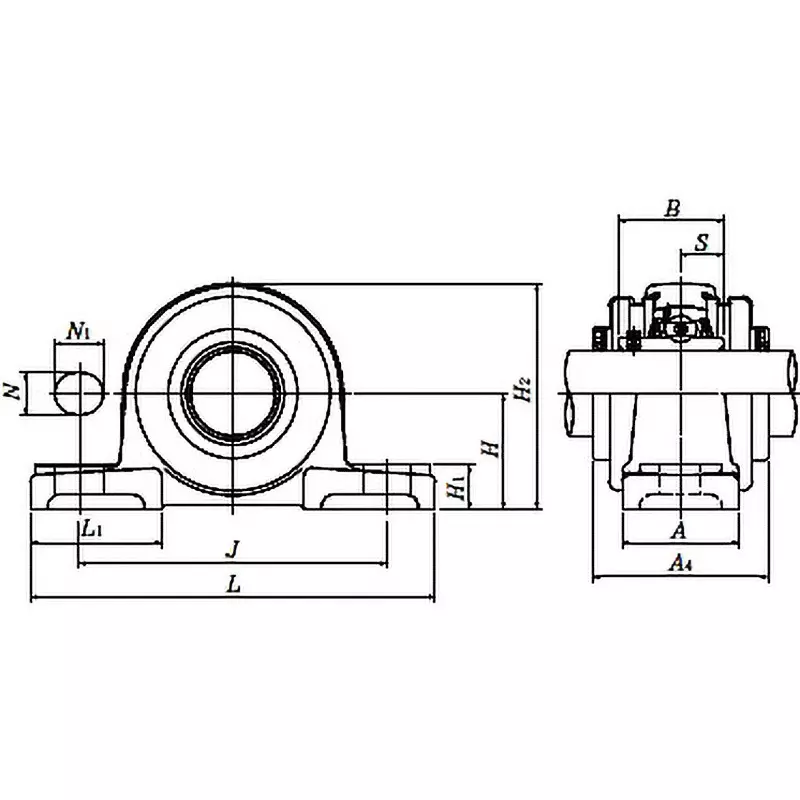

Dimensions B (mm) |
31 |
Shape |
Pillow unit |
Dimensions H (mm) |
33.299999999999997 |
Dimensions A (mm) |
38 |
Cover |
With steel plate cover (cover with rubber seals on both sides) |
Shank Diameter (Φmm) |
20 |
Basic Static Load Rating (kN) |
6.65 |
Basic Dynamic Load Rating (kN) |
12.8 |
Grease Nipple |
With grease nipple |
Load Rank |
For light loads |
Shaft Hole Type |
Cylindrical hole type |
Nominal Size of Mounting Bolt |
M10 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NTN Corporation |
Dimension L (mm) |
127 |
Dimension T |
2 mm |
Dimension L1 |
42 mm |
Dimension H1 |
14 mm |
Dimension S |
12.7 mm |
Dimension n (mm) |
13 |
Dimension J (mm) |
95 |
