Ships within 25 days
View
View
View
View

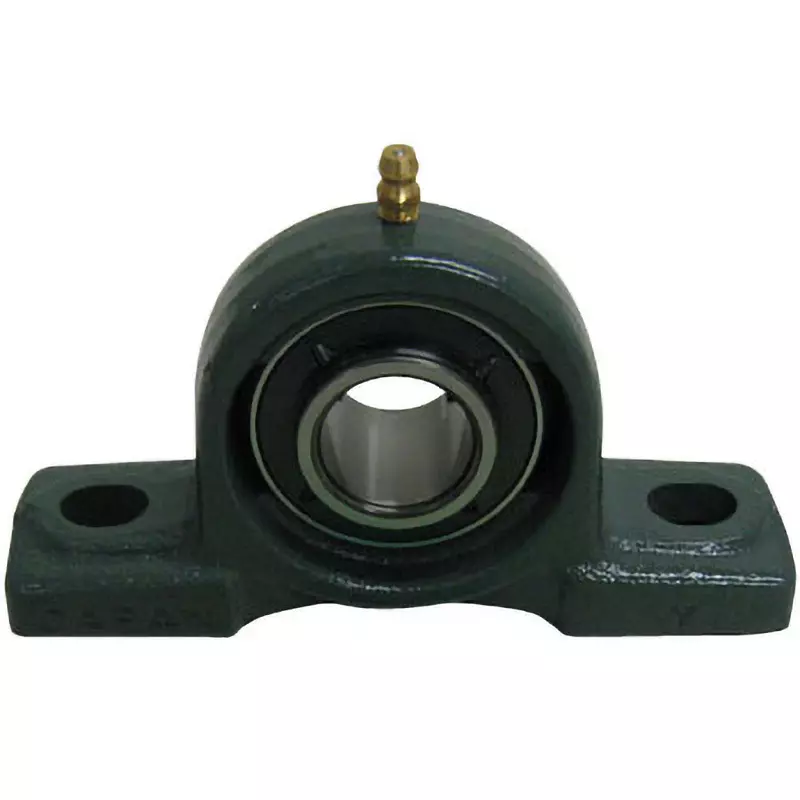

| Type of Product | Bearing Unit Cast Iron Pillow Unit for Oil-Resistant Heat Resistance |
| Model No | UCP316HT2D1 |
| Monotaro ID | 359651 |

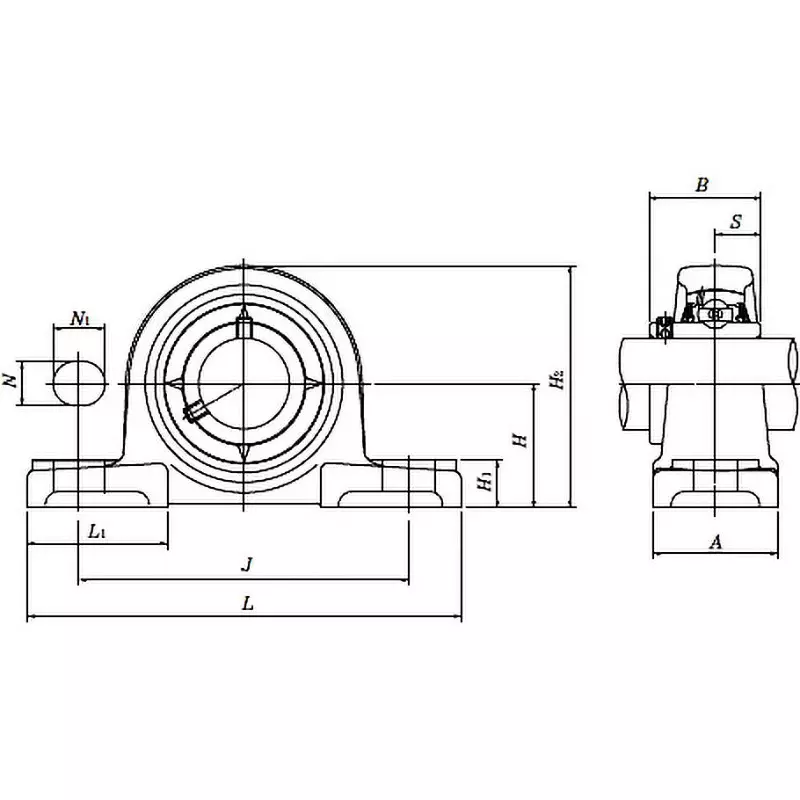

| Dimensions B (mm) | 86 |
Type of Product |
Bearing Unit Cast Iron Pillow Unit for Oil-Resistant Heat Resistance |
Model No |
UCP316HT2D1 |
Monotaro ID |
359651 |
Dimensions B (mm) |
86 |
Shape |
Pillow unit |
Dimensions H (mm) |
106 |
Dimensions A (mm) |
110 |
Cover |
Without cover |
Shank Diameter (Φmm) |
80 |
Basic Static Load Rating (kN) |
86.5 |
Basic Dynamic Load Rating (kN) |
123 |
Grease Nipple |
With silicone grease (for heat and cold resistance) |
Load Rank |
For heavy loads |
Shaft Hole Type |
Cylindrical hole type |
Dimension N1 (mm) |
40 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NTN Corporation |
Dimension L (mm) |
400 |
Dimension L1 |
110 mm |
Dimension H1 |
40 mm |
Dimension S |
34 mm |
Dimension n (mm) |
27 |
Dimension J (mm) |
300 |
Dimension H2 |
210 mm |
