| Type of Product | Bearing Unit Pillow Type Unit Made of Rolled Steel for General Structure |
| Model No | UCPG206D1 |
| Monotaro ID | 408107 |
| Bearing Identification Number | UC206D1 |
Type of Product |
Bearing Unit Pillow Type Unit Made of Rolled Steel for General Structure |
Model No |
UCPG206D1 |
Monotaro ID |
408107 |
Bearing Identification Number |
UC206D1 |

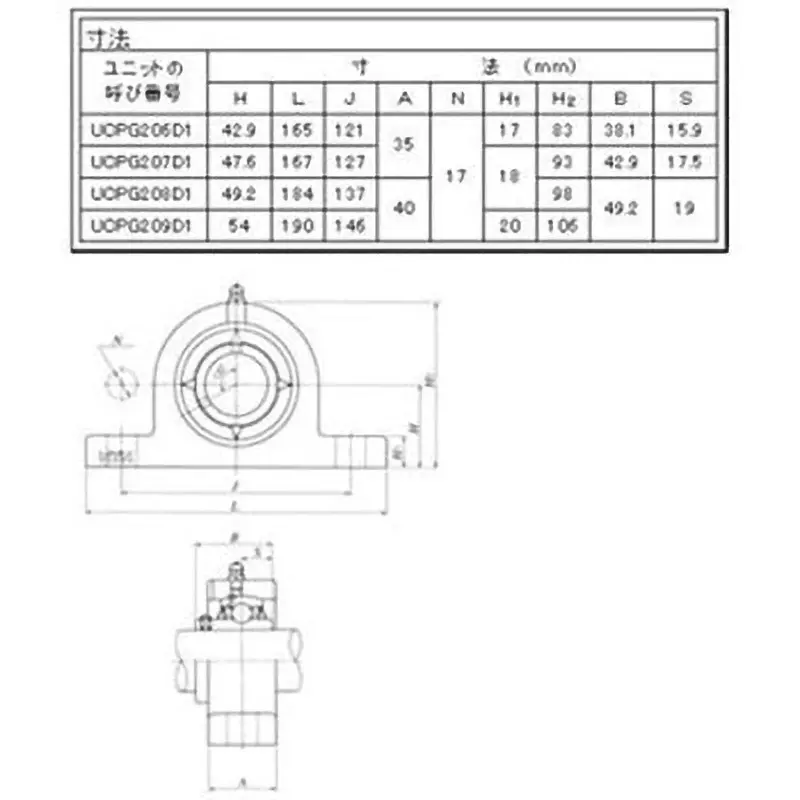

Dimensions B (mm) |
38.1 |
Shape |
Pillow unit |
Dimensions H (mm) |
42.9 |
Dimensions A (mm) |
35 |
Cover |
Without cover |
Shank Diameter (Φmm) |
30 |
Basic Static Load Rating (kN) |
11.3 |
Basic Dynamic Load Rating (kN) |
19.5 |
Load Rank |
For light loads |
Shaft Hole Type |
Cylindrical hole type, set screw type |
Unit Type |
Pillow unit |
Nominal Size of Mounting Bolt |
M14 |
Mass of Unit (kg) |
1.3 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NTN Corporation |
Dimension L (mm) |
165 |
Dimension H1 |
17 mm |
Dimension S |
15.9 mm |
Dimension n (mm) |
17 |
Dimension J (mm) |
121 |
Dimension H2 |
83 mm |
