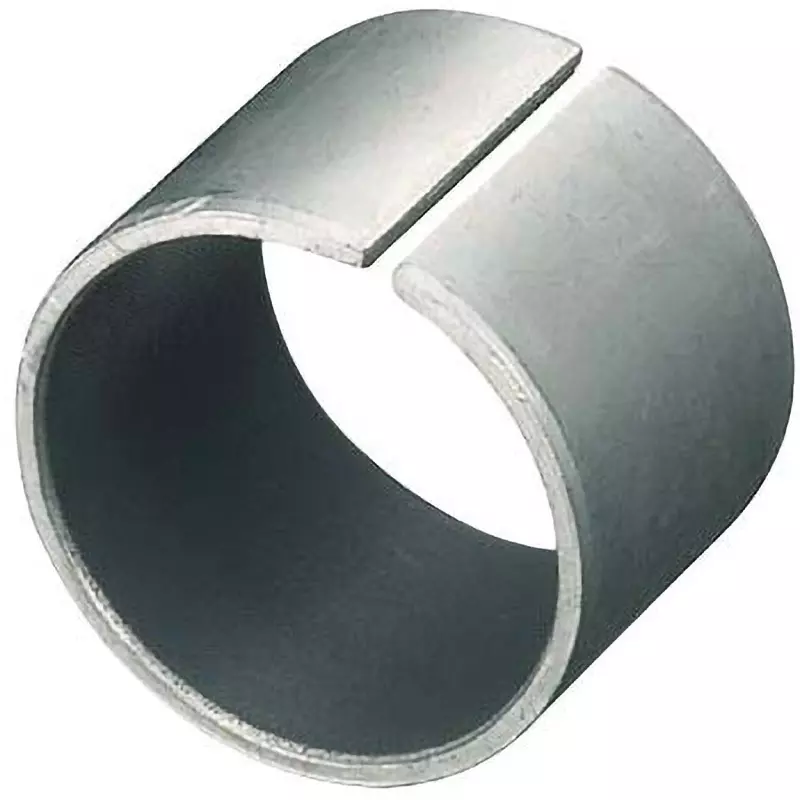

| Type of Product | Precision Resin Bearing MLE Type |
| Model No | R-MLE2010 |
| Monotaro ID | 445051 |
| Outer Diameter | 23 mm |
Type of Product |
Precision Resin Bearing MLE Type |
Model No |
R-MLE2010 |
Monotaro ID |
445051 |
Outer Diameter |
23 mm |
Inner Diameter |
20 mm |
Load direction |
Radial |
Width (mm) |
10 |
Operating Temperature Range |
-200 to +260°C |
Wall thickness T (mm) |
1.5 |
Allowable PV Value (MPam/min) |
98{1000kgf/cm <sup>2</sup>・m/min} |
Flange Outer Diameter FD (Φmm) |
1.5 |
Length L (mm) |
10 |
Allowable Surface Pressure (MPa) |
Very low speed 137 {1400kgf / cm <sup>2</sup> } General 49 {500kgf / cm <sup>2</sup> } |
sliding speed tolerance (m/min) |
100 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NTN Corporation |
