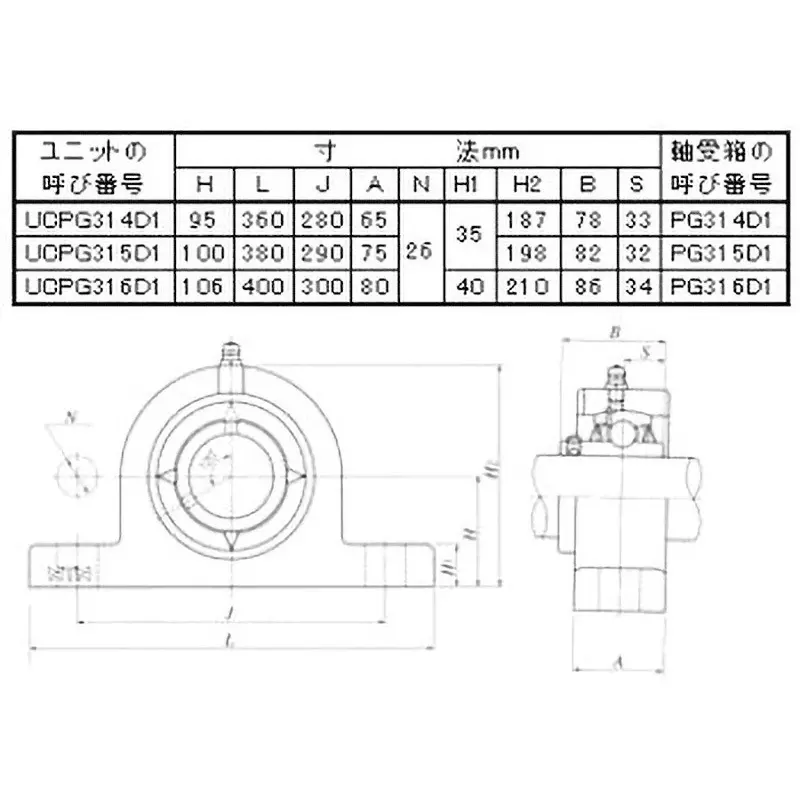

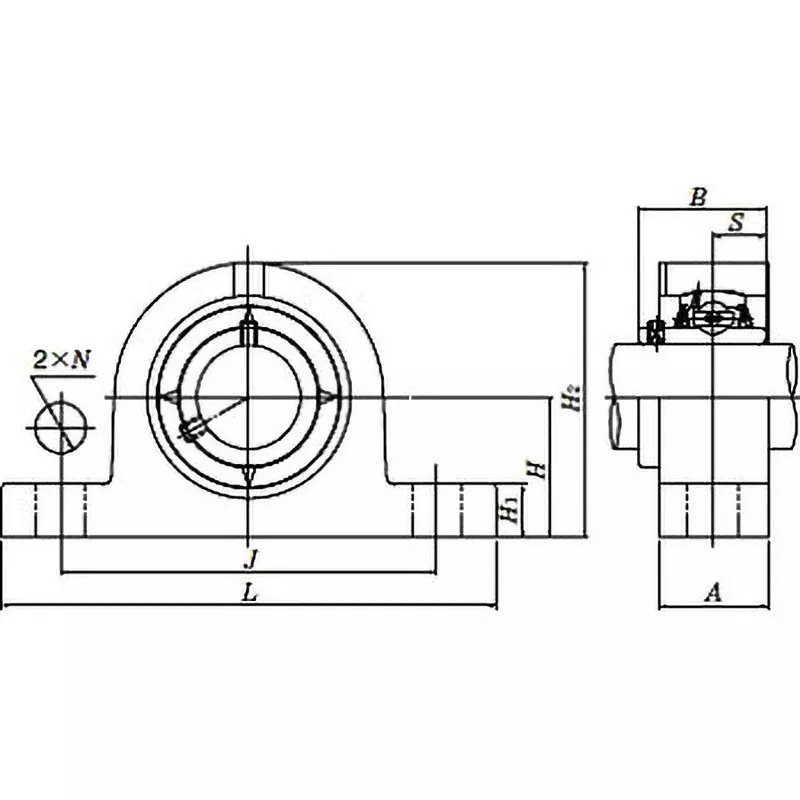

| Type of Product | Bearing Unit Pillow Type Unit Made of Rolled Steel for General Structure |
| Model No | UCPG315D1 |
| Monotaro ID | 408335 |
| Bearing Identification Number | UC315D1 |
Type of Product |
Bearing Unit Pillow Type Unit Made of Rolled Steel for General Structure |
Model No |
UCPG315D1 |
Monotaro ID |
408335 |
Bearing Identification Number |
UC315D1 |
Dimensions B (mm) |
82 |
Shape |
Pillow unit |
Dimensions H (mm) |
100 |
Dimensions A (mm) |
75 |
Cover |
Without cover |
Shank Diameter (Φmm) |
75 |
Basic Static Load Rating (kN) |
77 |
Basic Dynamic Load Rating (kN) |
113 |
Load Rank |
For heavy loads |
Shaft Hole Type |
Cylindrical hole type, set screw type |
Unit Type |
Pillow unit |
Nominal Size of Mounting Bolt |
M22 |
Mass of Unit (kg) |
14 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NTN Corporation |
Dimension L (mm) |
380 |
Dimension H1 |
35 mm |
Dimension S |
32 mm |
Dimension n (mm) |
26 |
Dimension J (mm) |
290 |
Dimension H2 |
198 mm |
