| Type of Product | Plummer Block Split Type SN5 Standard Type |
| Model No | SN510L5 |
| Monotaro ID | 41103003 |
| Lubrication | Comes with standard oil plug and drain plug |
Type of Product |
Plummer Block Split Type SN5 Standard Type |
Model No |
SN510L5 |
Monotaro ID |
41103003 |
Lubrication |
Comes with standard oil plug and drain plug |
Type |
Tapered bore bearing application type |

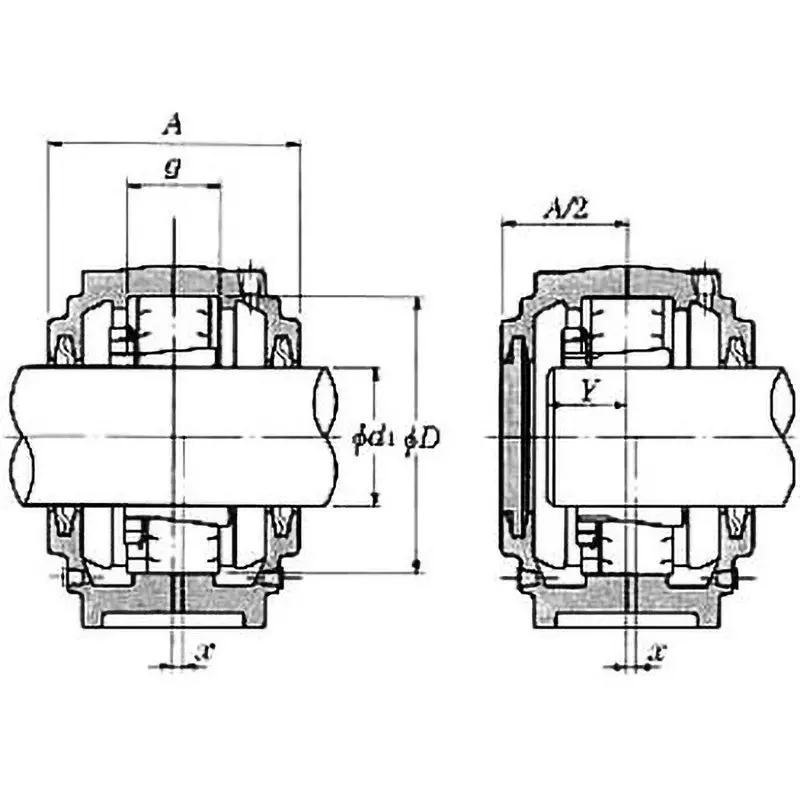

Dimensions D (mm) |
90 |
Mass (Kg) |
3 Kg |
Dimensions g (mm) |
33 |
Shaft diameter d1 (Φmm) |
45 |
Dimensions H (mm) |
60 |
Dimensions A (mm) |
90 |
Dimension N1 (mm) |
20 |
Number |
(Inner bore number of the receiving shaft) 10 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NTN Corporation |

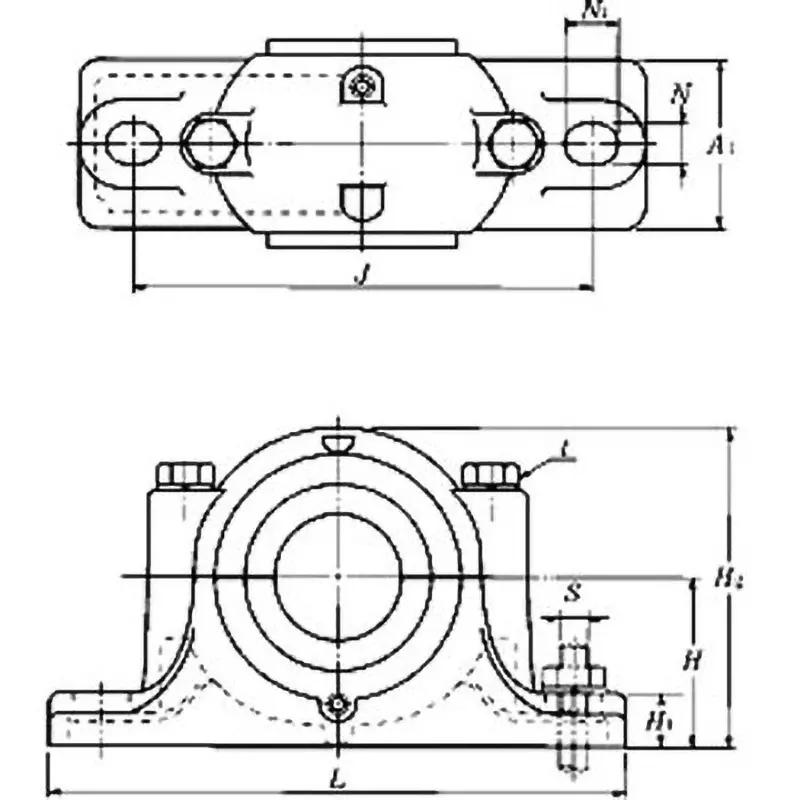

Dimension L (mm) |
205 |
Dimension T |
M10 |
Dimension H1 |
25 mm |
Dimension S |
M12 |
Nominal No. |
SC510, (Rubber seal) ZF10 |
Dimension n (mm) |
15 |
Dimension J (mm) |
170 |
Dimension H2 |
115 mm |
Dimension A1 |
60 mm |
