| Type of Product | Plummer Block Split Type SN3 Large Bore Type |
| Model No | SN313L5 |
| Monotaro ID | 41105383 |
| Lubrication | Comes with standard oil plug and drain plug |
Type of Product |
Plummer Block Split Type SN3 Large Bore Type |
Model No |
SN313L5 |
Monotaro ID |
41105383 |
Lubrication |
Comes with standard oil plug and drain plug |
Type |
Cylindrical bore bearing applicable type |

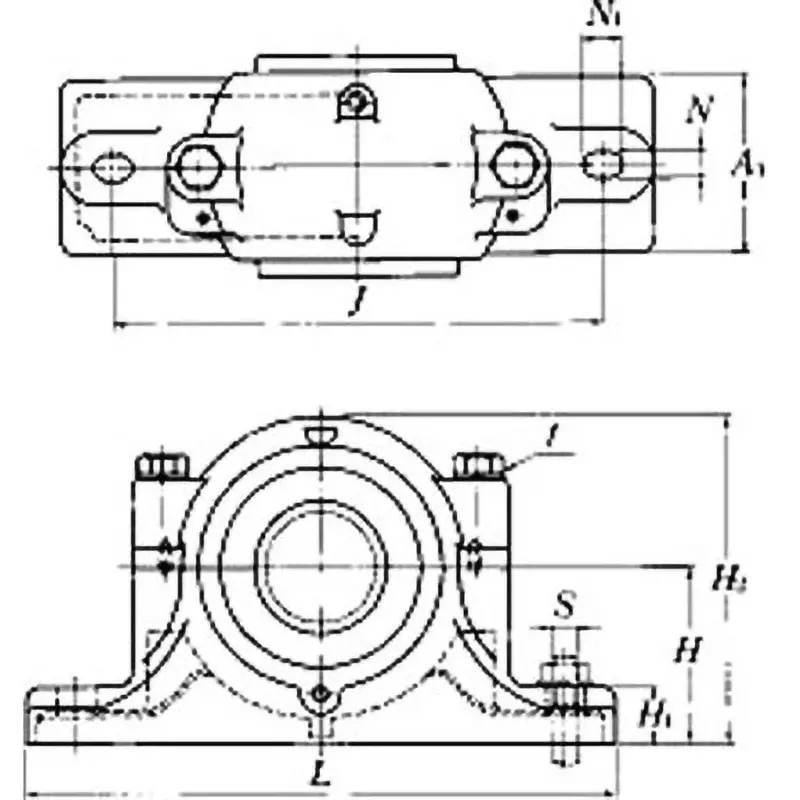

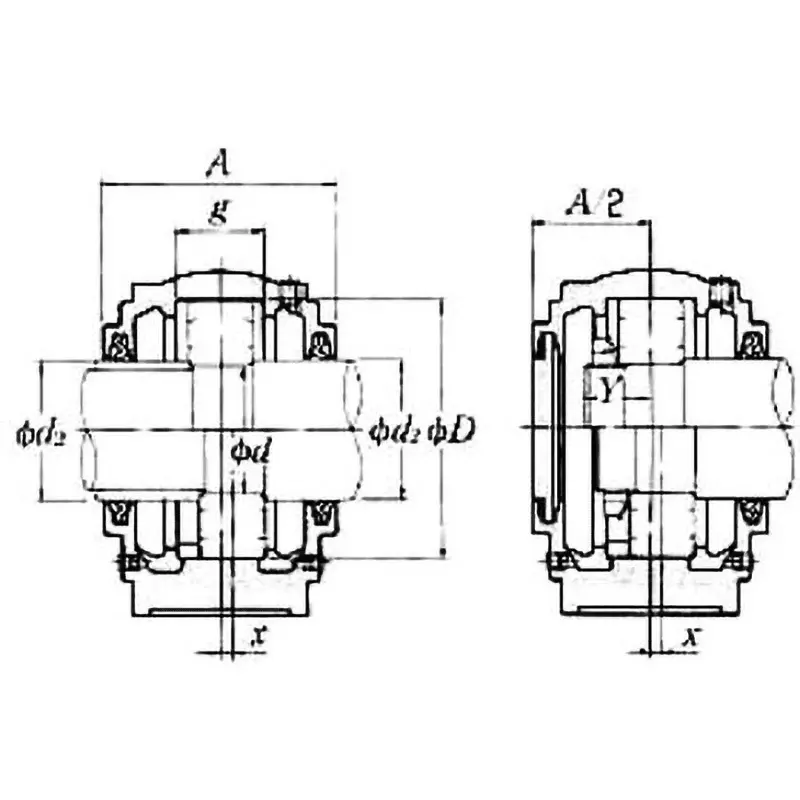

Dimensions D (mm) |
140 |
Mass (Kg) |
8.7 Kg |
Dimensions g (mm) |
58 |
Shaft diameter d1 (Φmm) |
65 |
Dimensions H (mm) |
95 |
Dimensions A (mm) |
130 |
Dimension N1 (mm) |
27 |
Number |
(Inner diameter of the receiving shaft) 13 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NTN Corporation |
Dimension L (mm) |
315 |
Dimension T |
M16 |
Dimension H1 |
32 mm |
Dimension S |
M20 |
Nominal No. |
SN313, (Rubber seal) ZF17 |
Dimension n (mm) |
22 |
Dimension J (mm) |
260 |
Dimension H2 |
175 mm |
Dimension A1 |
90 mm |
Shaft Diameter D2 (Φmm) |
75 |
