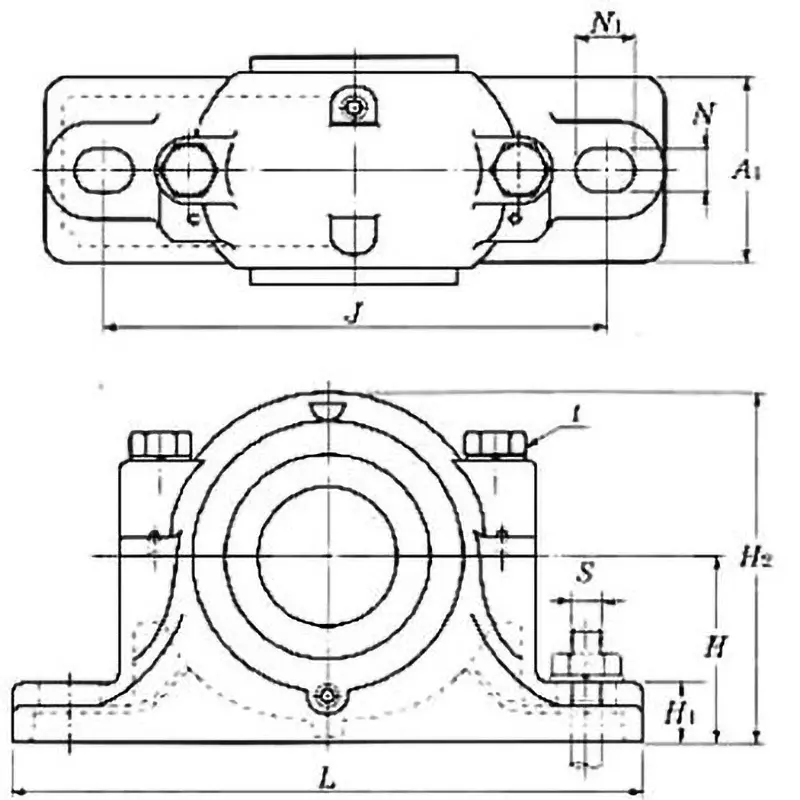

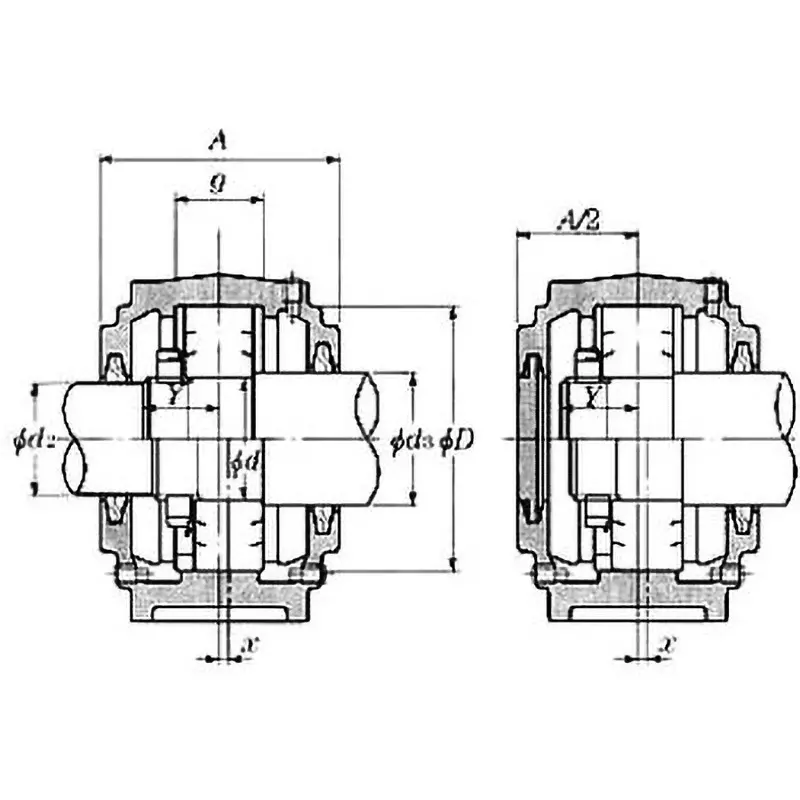

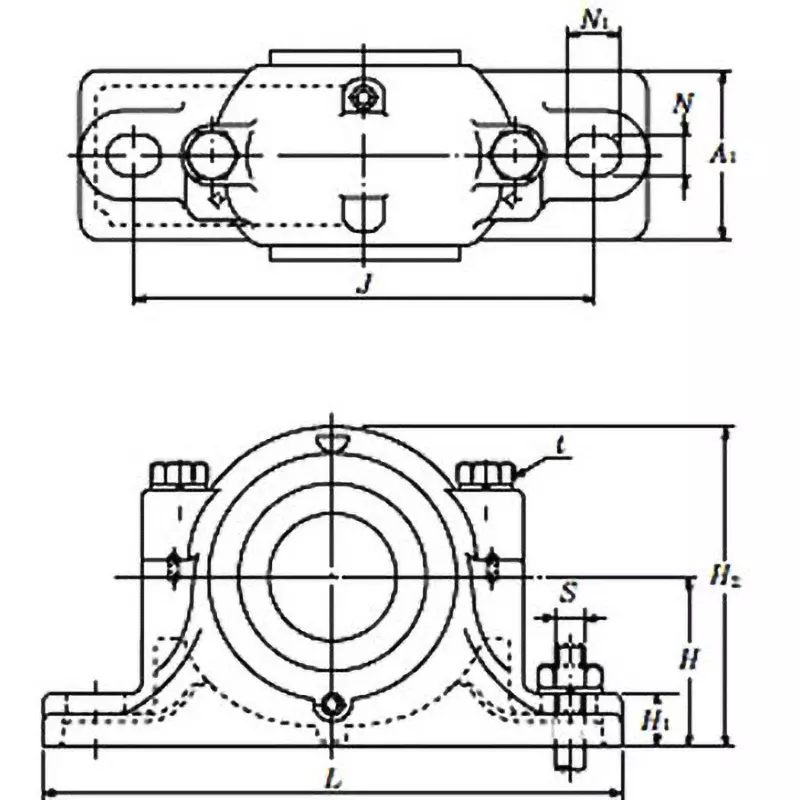

| Type of Product | Plummer Block Split Type SNZ2 Different Diameter |
| Model No | SNZ228L5 |
| Monotaro ID | 41106187 |
| Lubrication | Comes with standard oil plug and drain plug |
Type of Product |
Plummer Block Split Type SNZ2 Different Diameter |
Model No |
SNZ228L5 |
Monotaro ID |
41106187 |
Lubrication |
Comes with standard oil plug and drain plug |
Type |
Cylindrical bore bearing applicable type |
Dimensions D (mm) |
270 |
Mass (Kg) |
60 Kg |
Dimensions g (mm) |
98 |
Shaft diameter d1 (Φmm) |
140 |
Dimensions H (mm) |
150 |
Dimensions A (mm) |
205 |
Dimension N1 (mm) |
42 |
Number |
(Inner diameter of the receiving shaft) 28 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NTN Corporation |
Dimension L (mm) |
500 |
Dimension T |
M24 |
Dimension H1 |
50 mm |
Shaft Outer Diameter |
155 mm |
Dimension S |
M30 |
Nominal No. |
SNZ228, (Rubber seal) d2 side / ZF28: d3 side / ZF35 |
Dimension n (mm) |
33 |
Dimension J (mm) |
420 |
Dimension H2 |
305 mm |
Dimension A1 |
150 mm |
