| Type of Product | Bearing Unit Pillow Type Oil-Free Type |
| Model No | UKP213 |
| Monotaro ID | 356754 |
| Suitable For | H2313X |
Type of Product |
Bearing Unit Pillow Type Oil-Free Type |
Model No |
UKP213 |
Monotaro ID |
356754 |
Suitable For |
H2313X |

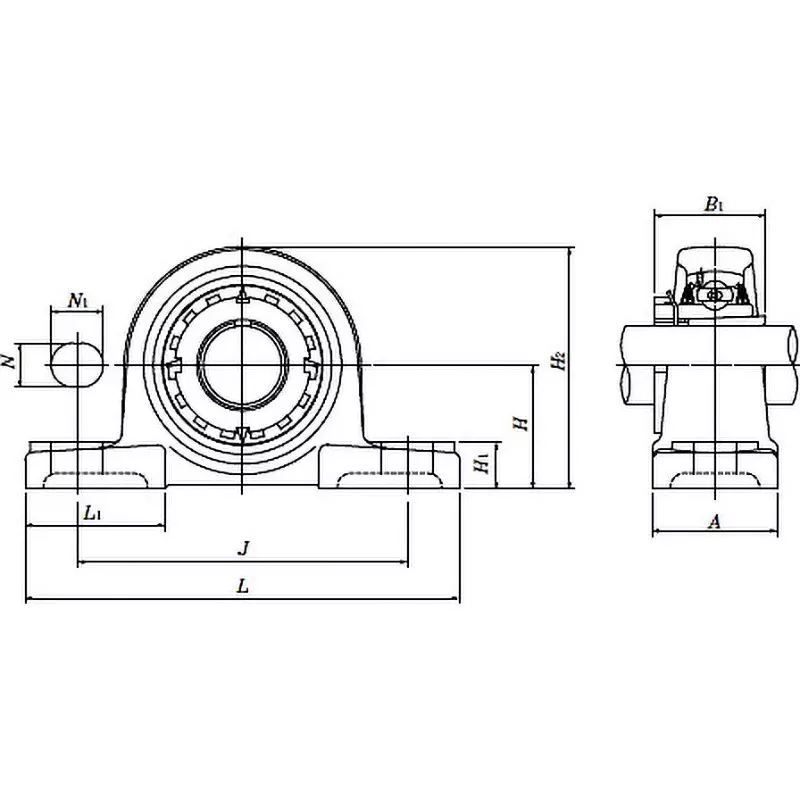

Dimension B1 (mm) |
65 |
Shape |
Pillow unit |
Dimensions H (mm) |
76.2 |
Dimensions A (mm) |
70 |
Cover |
Without cover |
Shank Diameter (Φmm) |
60 |
Basic Static Load Rating (kN) |
40 |
Basic Dynamic Load Rating (kN) |
57.5 |
Grease Nipple |
No grease nipple |
Load Rank |
For light loads |
Shaft Hole Type |
Tapered hole type |
Dimension N1 (mm) |
28 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NTN Corporation |
Dimension L (mm) |
265 |
Dimension L1 |
77 mm |
Dimension H1 |
27 mm |
Dimension n (mm) |
25 |
Dimension J (mm) |
203 |
Dimension H2 |
151 mm |
