Ships within 25 days
View
View
View
View

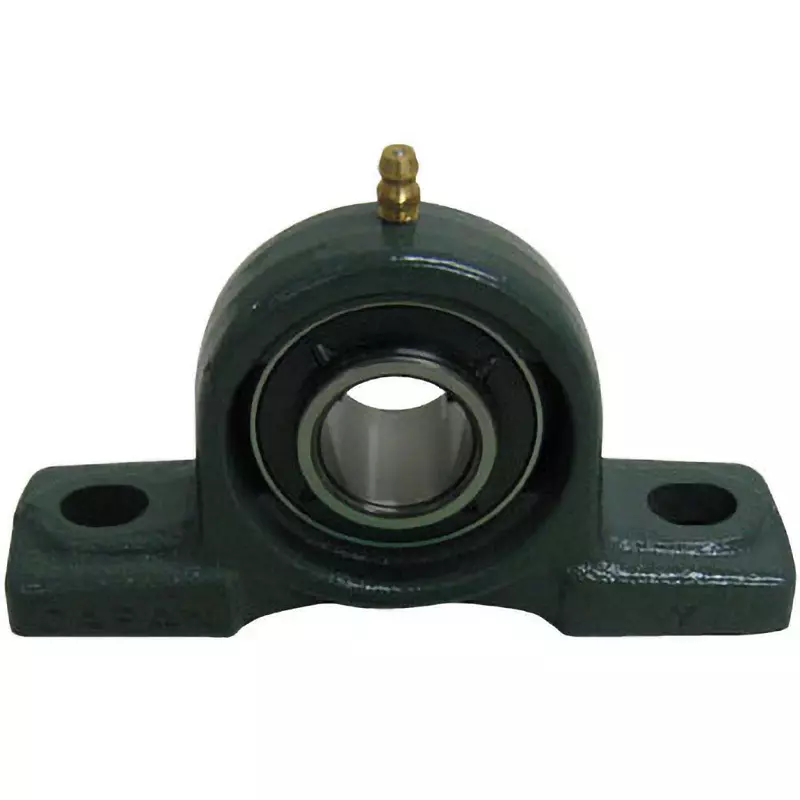

| Type of Product | Pillow Type Unit Lubrication Type |
| Model No | UCP212D1LLJ |
| Monotaro ID | 8862113 |
| Mass (Kg) | 4.6 Kg (Reference) |
Type of Product |
Pillow Type Unit Lubrication Type |
Model No |
UCP212D1LLJ |
Monotaro ID |
8862113 |
Mass (Kg) |
4.6 Kg (Reference) |
Dimensions B (mm) |
65.099999999999994 |
Seal |
Triple seal |
Shape |
Pillow unit |
Dimensions H (mm) |
69.8 |
Dimensions A (mm) |
70 |
Cover |
Without cover |
Shank Diameter (Φmm) |
60 |
Basic Static Load Rating (kN) |
36 |
Basic Dynamic Load Rating (kN) |
52.5 |
Grease Nipple |
With grease nipple |
Load Rank |
For light loads |
Shaft Hole Type |
Cylindrical hole type (with set screw) |
Nominal Size of Mounting Bolt |
M16 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NTN Corporation |
Dimension L (mm) |
241 |
Dimension L1 |
70 mm |
Dimension H1 |
25 mm |
Dimension S |
25.4 mm |
Dimension n (mm) |
20 |
Dimension J (mm) |
184 |
