| Type of Product | Bearing Unit Pillow Type Oil-Free Type |
| Model No | UKP212 |
| Monotaro ID | 356727 |
| Suitable For | H2312X |
Type of Product |
Bearing Unit Pillow Type Oil-Free Type |
Model No |
UKP212 |
Monotaro ID |
356727 |
Suitable For |
H2312X |

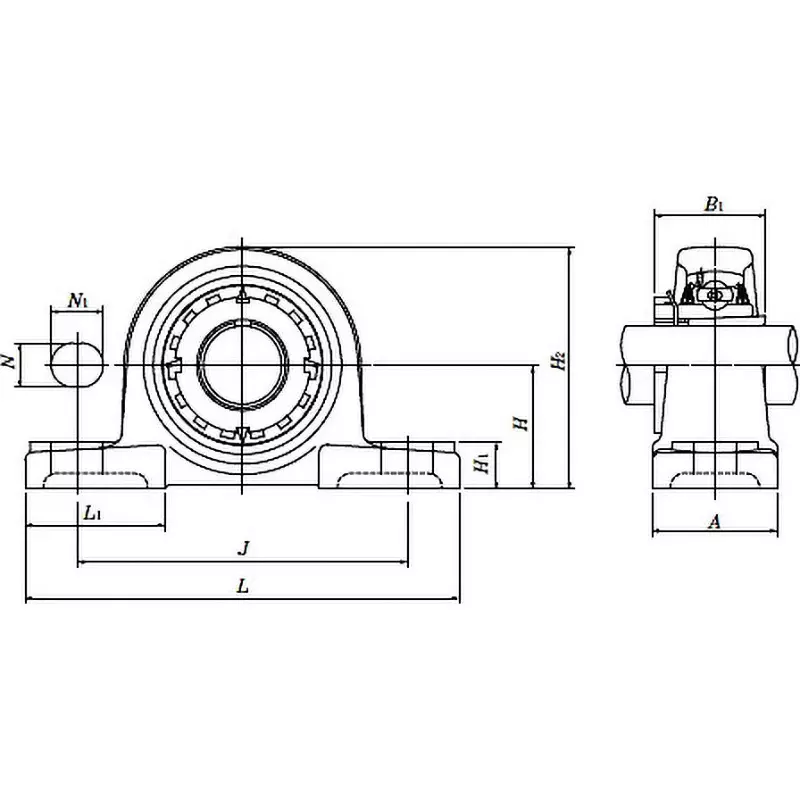

Dimension B1 (mm) |
62 |
Shape |
Pillow unit |
Dimensions H (mm) |
69.8 |
Dimensions A (mm) |
70 |
Cover |
Without cover |
Shank Diameter (Φmm) |
55 |
Basic Static Load Rating (kN) |
36 |
Basic Dynamic Load Rating (kN) |
52.5 |
Grease Nipple |
No grease nipple |
Load Rank |
For light loads |
Shaft Hole Type |
Tapered hole type |
Dimension N1 (mm) |
23 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NTN Corporation |
Dimension L (mm) |
241 |
Dimension L1 |
70 mm |
Dimension H1 |
25 mm |
Dimension n (mm) |
20 |
Dimension J (mm) |
184 |
Dimension H2 |
138 mm |
