| Type of Product | Plummer Block Split Type SN5 Standard Type |
| Model No | SN532L1 |
| Monotaro ID | 41103633 |
| Lubrication | Standard grease nipple and drain plug are attached |
Type of Product |
Plummer Block Split Type SN5 Standard Type |
Model No |
SN532L1 |
Monotaro ID |
41103633 |
Lubrication |
Standard grease nipple and drain plug are attached |
Type |
Tapered bore bearing application type |

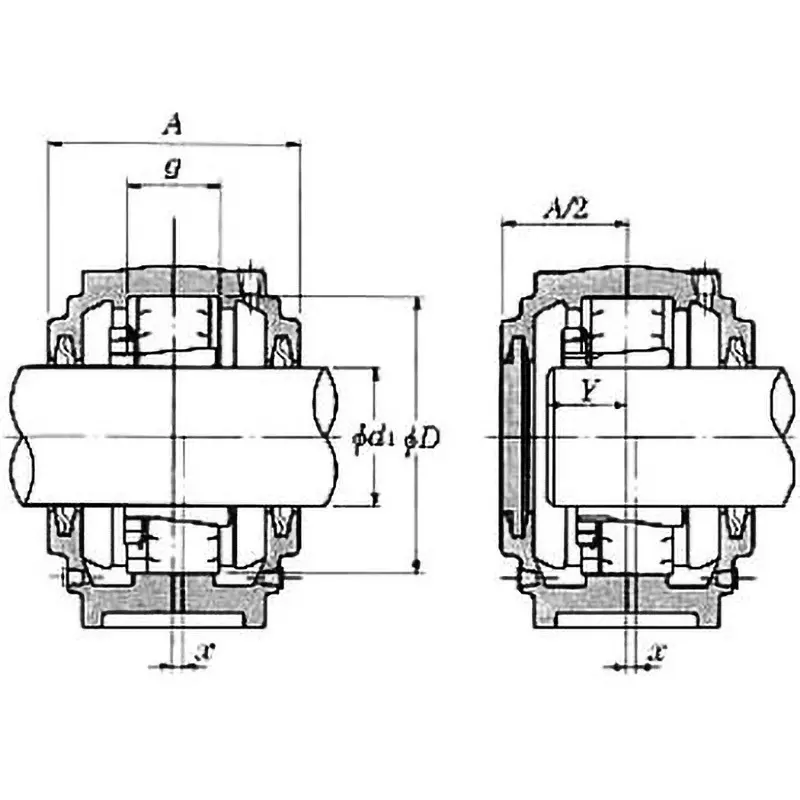

Dimensions D (mm) |
290 |
Mass (Kg) |
48 Kg |
Dimensions g (mm) |
114 |
Shaft diameter d1 (Φmm) |
140 |

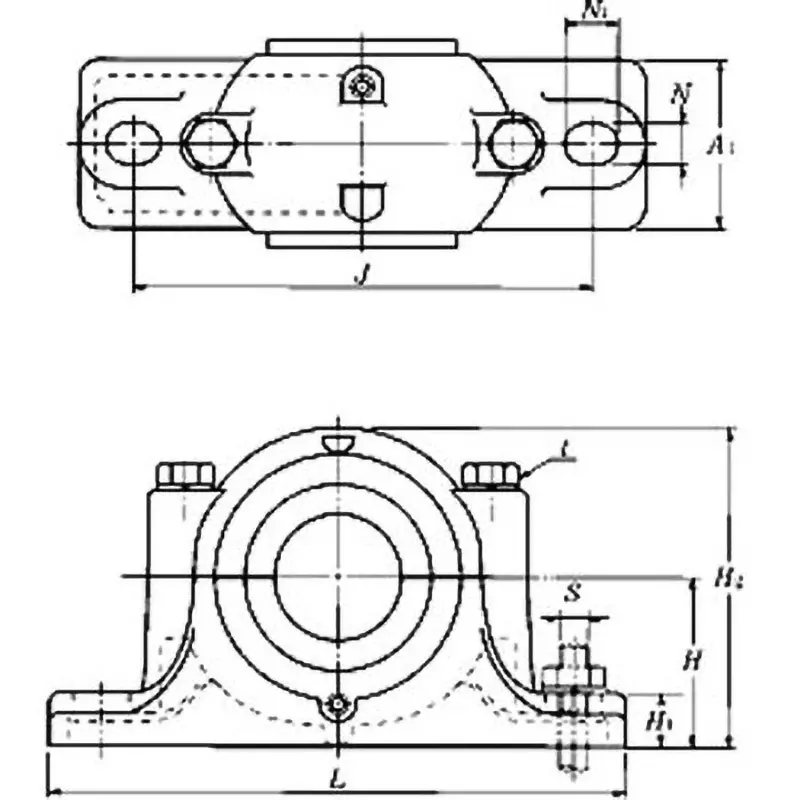

Dimensions H (mm) |
170 |
Dimensions A (mm) |
235 |
Dimension N1 (mm) |
42 |
Number |
(Inner bore number of shaft used) 32 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NTN Corporation |
Dimension L (mm) |
550 |
Dimension T |
M24 |
Dimension H1 |
60 mm |
Dimension S |
M30 |
Nominal No. |
SC532, (Rubber seal) ZF32 |
Dimension n (mm) |
33 |
Dimension J (mm) |
470 |
Dimension H2 |
345 mm |
Dimension A1 |
160 mm |
