| Type of Product | Plummer Block Split Type SN6 Standard Type |
| Model No | S618L1 |
| Monotaro ID | 41104096 |
| Lubrication | Standard grease nipple and drain plug are attached |
Type of Product |
Plummer Block Split Type SN6 Standard Type |
Model No |
S618L1 |
Monotaro ID |
41104096 |
Lubrication |
Standard grease nipple and drain plug are attached |
Type |
Tapered bore bearing application type |

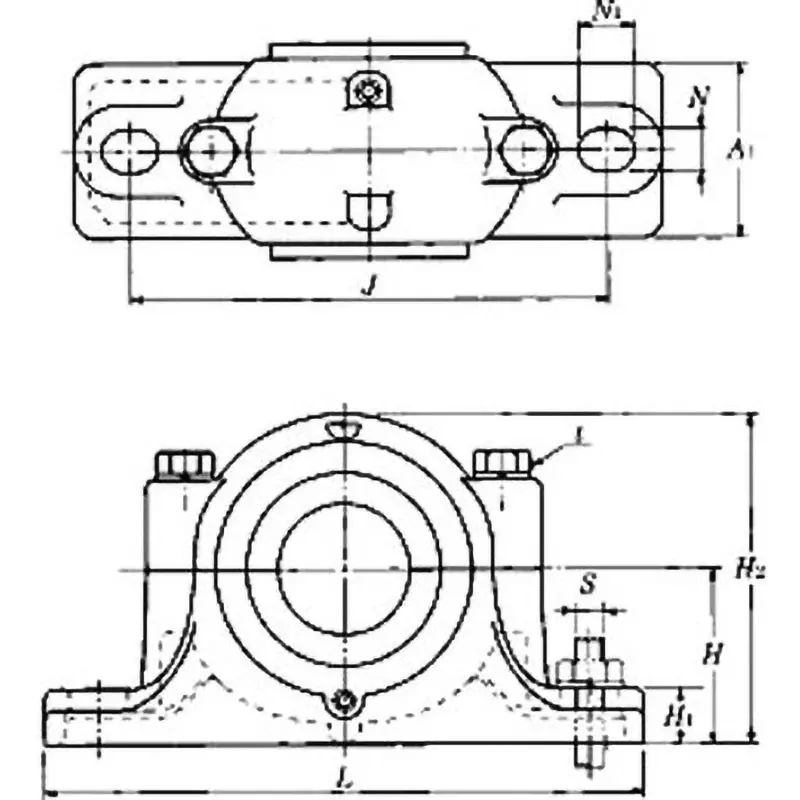

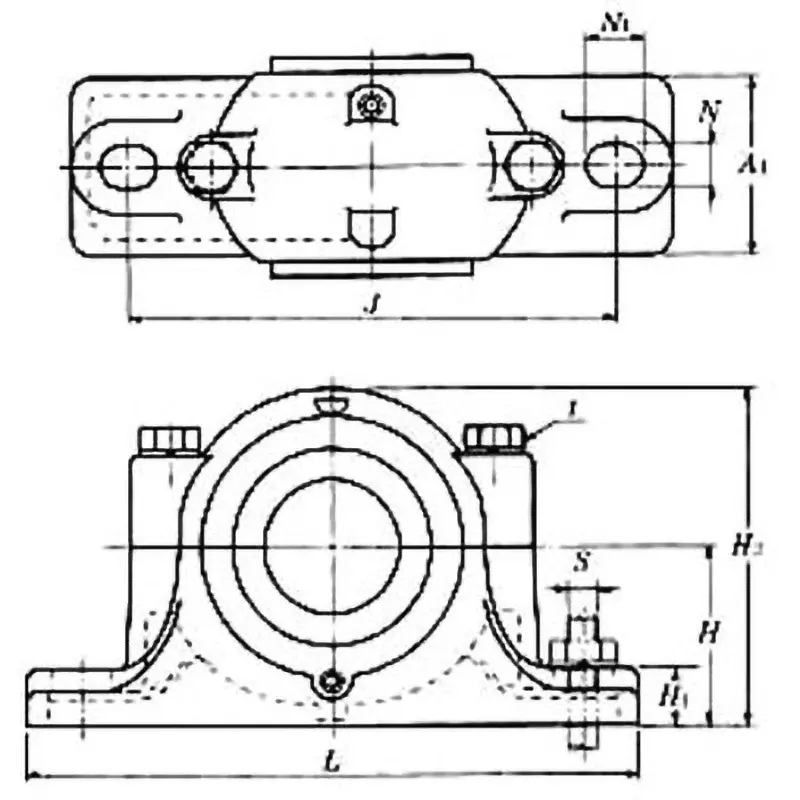

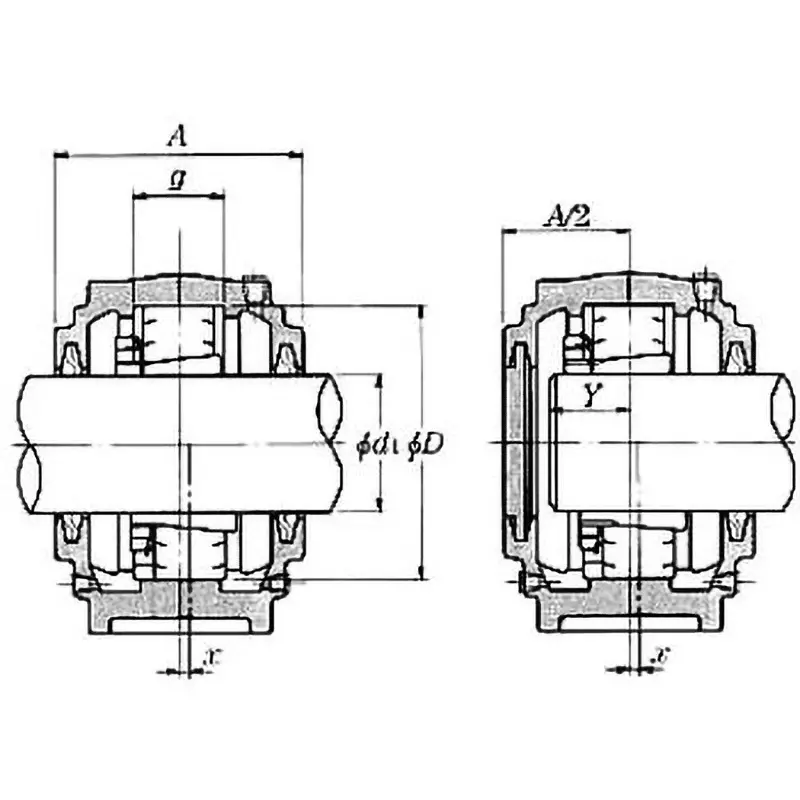

Dimensions D (mm) |
190 |
Mass (Kg) |
21 Kg |
Dimensions g (mm) |
74 |
Shaft diameter d1 (Φmm) |
80 |
Dimensions H (mm) |
112 |
Dimensions A (mm) |
160 |
Dimension N1 (mm) |
26 |
Number |
(Inner diameter of the receiving shaft) 18 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NTN Corporation |
Dimension L (mm) |
400 |
Dimension T |
M20 |
Dimension H1 |
33 mm |
Dimension S |
M24 |
Nominal No. |
SC618, (Rubber seal) ZF18 |
Dimension n (mm) |
26 |
Dimension J (mm) |
320 |
Dimension H2 |
230 mm |
Dimension A1 |
110 mm |
