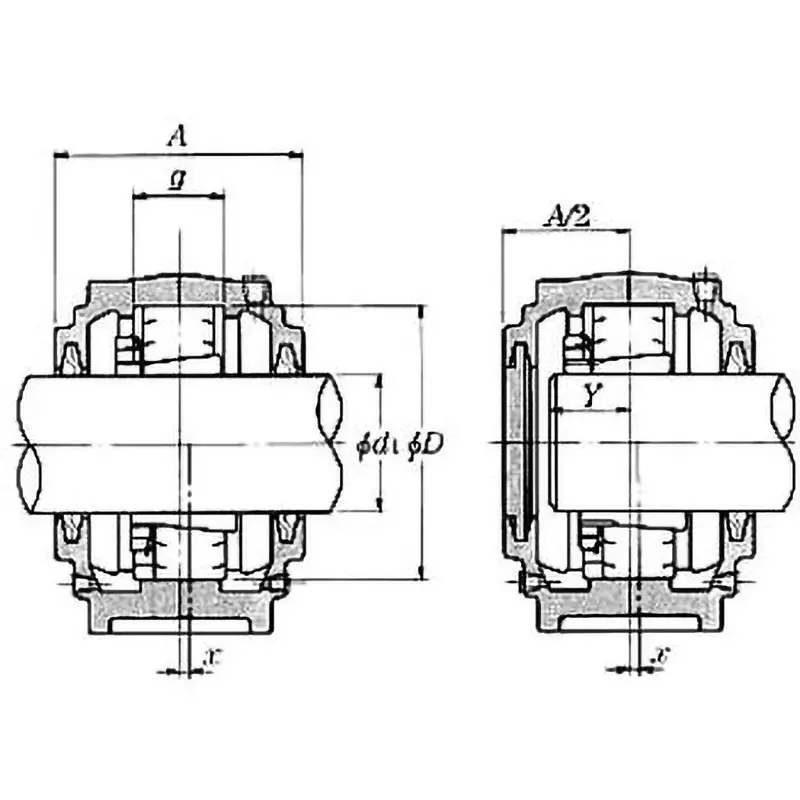

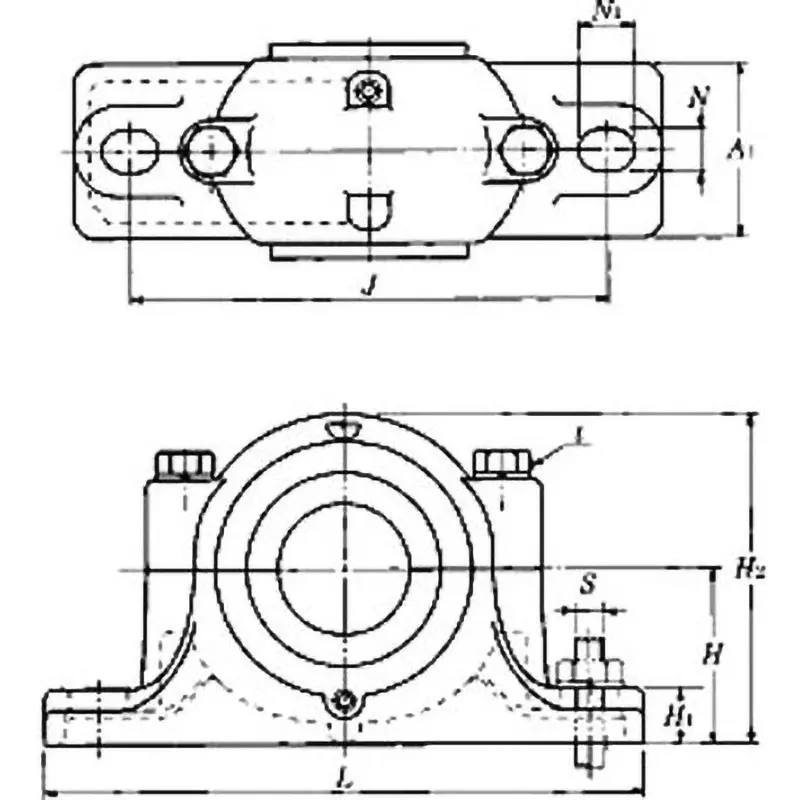

| Type of Product | Plummer Block Split Type SN6 Standard Type |
| Model No | S619L5 |
| Monotaro ID | 41104123 |
| Lubrication | Comes with standard oil plug and drain plug |
Type of Product |
Plummer Block Split Type SN6 Standard Type |
Model No |
S619L5 |
Monotaro ID |
41104123 |
Lubrication |
Comes with standard oil plug and drain plug |
Type |
Tapered bore bearing application type |
Dimensions D (mm) |
200 |
Mass (Kg) |
24 Kg |
Dimensions g (mm) |
77 |
Shaft diameter d1 (Φmm) |
85 |
Dimensions H (mm) |
125 |
Dimensions A (mm) |
170 |
Dimension N1 (mm) |
26 |
Number |
(Inner bore number of the receiving shaft) 19 |
Import Country |
Direct Import from Japan |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
NTN Corporation |
Dimension L (mm) |
420 |
Dimension T |
M20 |
Dimension H1 |
36 mm |
Dimension S |
M24 |
Nominal No. |
SC619, (Rubber seal) ZF19 |
Dimension n (mm) |
26 |
Dimension J (mm) |
350 |
Dimension H2 |
245 mm |
Dimension A1 |
120 mm |
